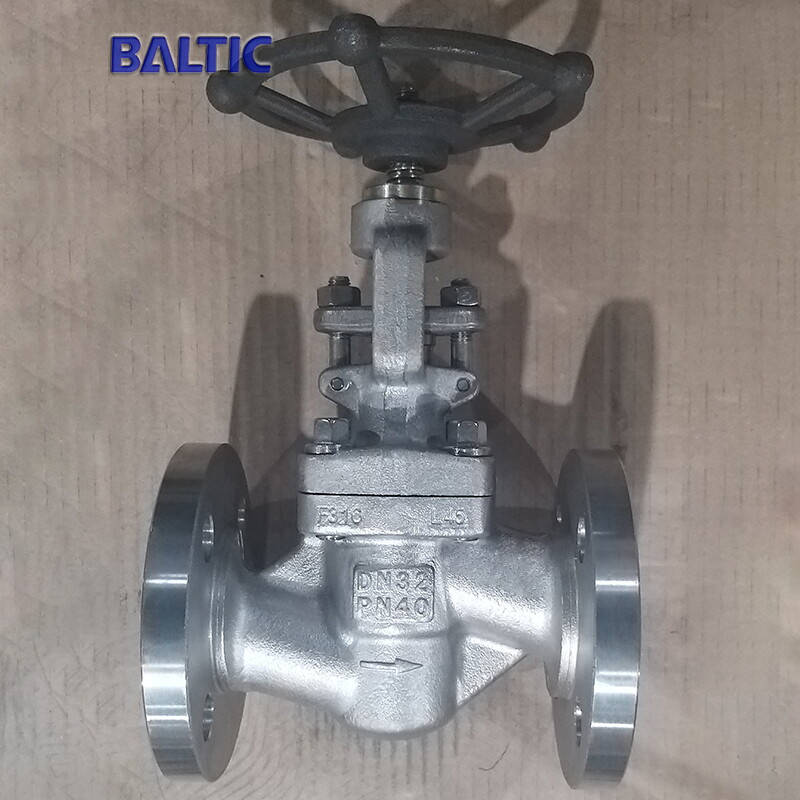

PN40 Globe Valve, DN32, ASTM A182 F316, ISO 15761, RF
Key Specifications / Features
Model No.: Hits: 2
Get top-quality DN32 PN40 Globe Valve, fabricated to perfection, with specifications including 1-1/4 Inch size, Class 300 LB rating, ASTM A182 F316 material, ISO 15761 compliance, and built to API 602 and BS 5352 standards. Featuring RF Flanged design and available with convenient Handwheel or Electric Operation, this valve ensures reliable performance for your industrial needs.
Request a quote
Share
Tags:
Detail Information
Valve description:
Name: Small size globe valve.
Design: ISO 15761.
Body: ASTM A182 F316.
Nominal size: DN32.
Nominal class: PN40.
End connection: RF.
Face to face: as per EN 558-1.
Test and inspection: EN 12266-1.
Technical parameters and characteristics
Name: Small size globe valve.
Design: ISO 15761.
Body: ASTM A182 F316.
Nominal size: DN32.
Nominal class: PN40.
End connection: RF.
Face to face: as per EN 558-1.
Test and inspection: EN 12266-1.
Technical parameters and characteristics
| Product | Small-size globe valve |
| Nominal diameter | 1/4 - 4 Inch |
| Design temp. | -196℃ - 573℃ |
| Design pressure | Class 150 - 4500 LB |
| Material | Forged carbon steel, Stainless steel, Alloy steel, Bronze |
| Design standard | API 602, BS5352 |
| Face to face | Manufacture standard, ASME B16.10 |
| Connection end | NPT, SW, BW, Flange |
| Test standard | API 598, ISO 5208 |
| Operation | Hand wheel, electric |
| Application | Power station, petroleum, chemical engineering |
| Function 1 | bolted bonnet, welded bonnet, pressure seal bonnet |
| Function 2 | plug disc, needle disc |
| Function 3 | full bore, reduced bore |
| Function 4 | Integral flanged ends、welded on flanged ends |
