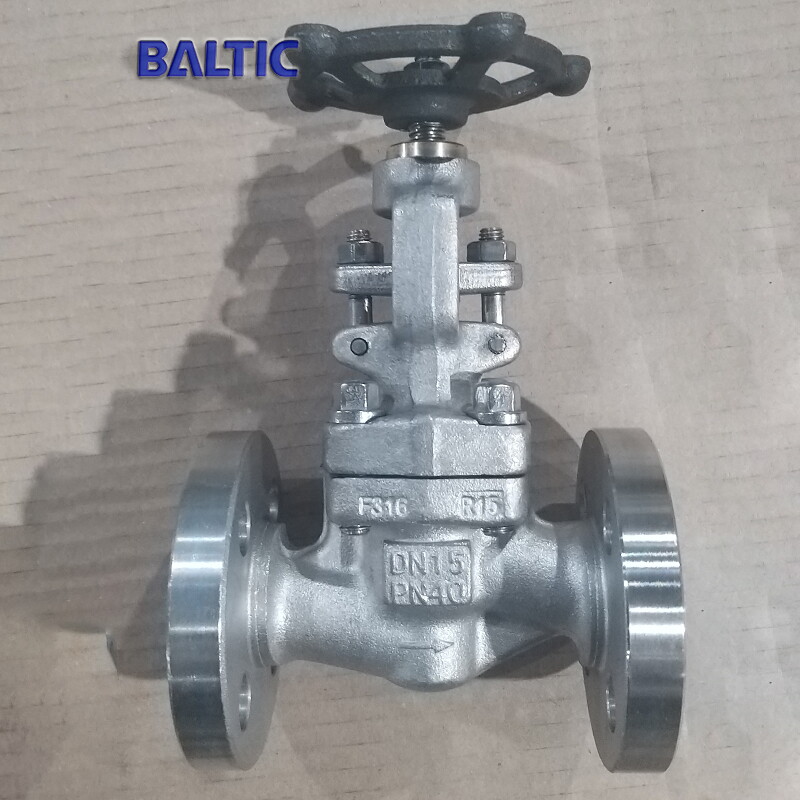

DN15 Globe Valve, ASTM A182 F316, PN40, ISO 15761, RF
Key Specifications / Features
Model No.: Hits: 3
Get top-quality DN15 Globe Valve with PN40 rating, crafted from ASTM A182 F316 stainless steel, measuring 1/2 inch, and designed for Class 300 LB applications. Compliant with ISO 15761 standards, this valve features integral flanged ends, ensuring seamless installation with welded-on flanged ends. Trust this reliable provider for premium valve solutions.
Request a quote
Share
Tags:
Detail Information
Valve description:
Name: Small size globe valve.
Design: ISO 15761.
Body: ASTM A182 F316.
Nominal size: DN15.
Nominal class: PN40.
End connection: RF.
Face to face: as per EN 558-1.
Test and inspection: EN 12266-1.
Technical parameters and characteristics
Name: Small size globe valve.
Design: ISO 15761.
Body: ASTM A182 F316.
Nominal size: DN15.
Nominal class: PN40.
End connection: RF.
Face to face: as per EN 558-1.
Test and inspection: EN 12266-1.
Technical parameters and characteristics
| Product | Small-size globe valve |
| Nominal diameter | 1/4 - 4 Inch |
| Design temp. | -196℃ - 573℃ |
| Design pressure | Class 150 - 4500 LB |
| Material | Forged carbon steel, Stainless steel, Alloy steel, Bronze |
| Design standard | API 602, BS 5352 |
| Face to face | Manufacture standard, ASME B16.10 |
| Connection end | NPT, SW, BW, Flange |
| Test standard | API 598, ISO 5208 |
| Operation | Hand wheel, electric |
| Application | Power station, petroleum, chemical engineering |
| Function 1 | bolted bonnet, welded bonnet, pressure seal bonnet |
| Function 2 | plug disc, needle disc |
| Function 3 | full bore, reduced bore |
| Function 4 | Integral flanged ends、welded on flanged ends |
