DIN Globe Valve

GLOBE VALVE, design as per DIN 3356



Rising stem
With hand wheel
Body/bonnet: GS-C25 (1.0619)
Trim: 13%Cr
Flanged according EN 1092-1 type B1 for PN40 and B2 for PN63 and PN100
Face to face dim. acc. EN558-1 type 1 (DIN 3202 F1) for PN40 and
                                       EN558-1 type 2 (DIN 3202 F2) for PN63 and PN100
Painting: body/bonnet (silver), painting min. 100μm (special painting)
Hand wheel (black)
No sign of producer on body/bonnet
Including inspection certificate EN 10204-3.1B for shell test and tightness test
Including material certificate acc. EN 10204-3.1B for body and bonnet
Red marked valves with internal by pass

Size PN 40 PN 63 PN 100
Qty Operation Qty Operation Qty Operation
DN15   Hand wheel   As per API 602   As per API 602
DN20   Hand wheel   As per API 602   As per API 602
DN25 200 Hand wheel   As per API 602   As per API 602
DN32   Hand wheel   As per API 602   As per API 602
DN40 100 Hand wheel   As per API 602   As per API 602
DN50 100 Hand wheel 50 Hand wheel 20 Hand wheel
DN65 30 Hand wheel   Hand wheel   Hand wheel
DN80 40 Hand wheel   Hand wheel   Hand wheel
DN100 40 Hand wheel   Hand wheel   Hand wheel
DN125   Hand wheel 5 Hand wheel 5 Hand wheel
DN150 20 Hand wheel 5 Hand wheel   Hand wheel
DN200 10 Hand wheel 3 Hand wheel 2 Hand wheel
  540   63   27

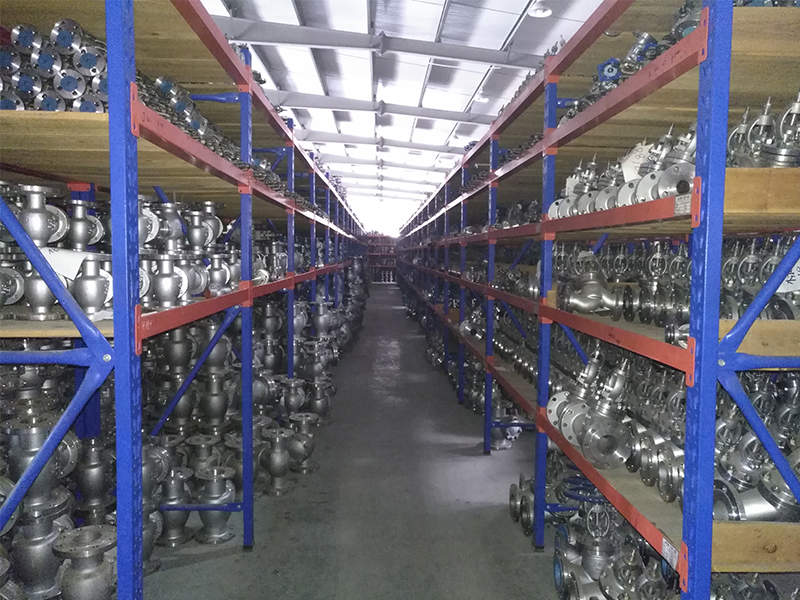

Stockist
