Forged Steel Small Valves

API 602 GATE VALVE & GLOBE VALVE with hand wheel

Outside screw and yoke, rising stem, bolted bonnet
Body/bonnet: ASTM A105
Trim: 13%Cr
F-NPT ends as per ASME B1.20.1
Socket welded ends as per ASME B16.11
Face to face dimension as per manufacturer's standard
Painting: body/hand wheel – phosphorization
No sign of producer on body/bonnet
Including material certificate acc. EN 10204-3.1B for body and bonnet
Including inspection certificate EN 10204-3.1B for shell test and tightness test

Size Class 800
Note Qty Face to Face
for gate valve		 Face to Face
for globe valve
1/2" Standard port 1000 79 MM 79 MM
3/4" Standard port 1000 92 MM 92 MM
1" Standard port 500 111 MM 111 MM
1.1/4" Standard port 300 120 MM 120 MM
1.1/2" Standard port 200 120 MM 152 MM
2" Standard port 150 140 MM 172 MM

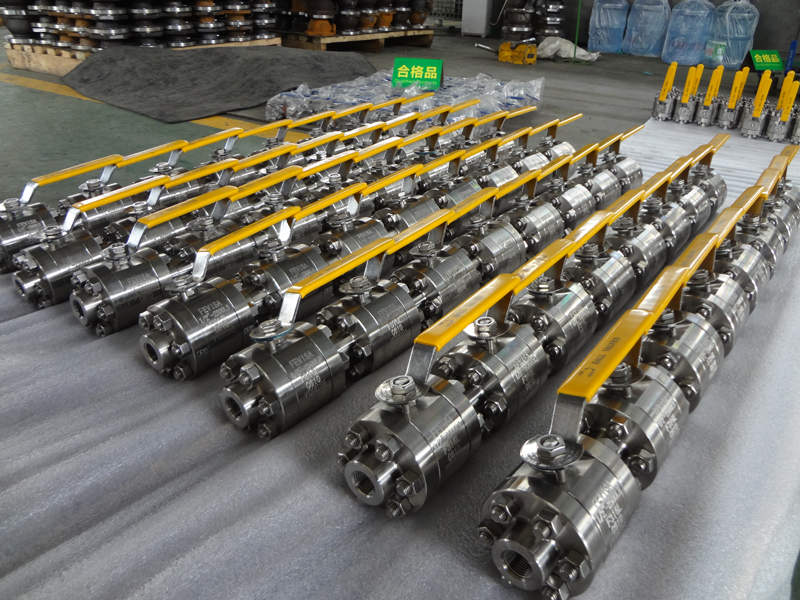

BALL VALE as per ISO 17292



Side entry, 3-PC type
Full bore, solid ball
Floating type

Body: ASTM A105
Ball:  A182 F304
Stem: A182 F304
Seat:  R-PTFE

F-NPT ends as per ASME B1.20.1
Socket welded ends as per ASME B16.11
Face to face dimension as per manufacturer's standard
Painting: body/hand wheel – phosphorization

No sign of producer on body/bonnet
Including material certificate acc. EN 10204-3.1B for body and bonnet
Including inspection certificate EN 10204-3.1B for shell test and tightness test

Size Class 800
Note Qty Face to Face
1/2" Standard port 500 92 MM
3/4" Standard port 500 111 MM
1" Standard port 300 127 MM
1.1/4" Standard port 20 140 MM
1.1/2" Standard port 150 152 MM
2" Standard port 150 178 MM
