We have just delivered these valves to one of our main European clients.

Product Description

Standard: EN 1984 Gate Valve

Design: OS&Y, BB, Rising Stem, Flexible Wedge, Full Bore

Stem/Actuator: Bare stem with ISO top flange 5210 F14 for later mounting of AUMA actuator

Ends Connection: Butt Welded Ends as per EN 12627 (Ø219.1 x 8.0 mm)

Butt welded ends to undergo RT test as per contract requirements

Face-to-Face Dimension: Client's request = 700 mm (special length)

Materials

Body/Cover: ASTM A217 WC6

Trim: 5# – fully Stellite (STL)

Packing: Graphite

Gasket: F304 RTJ Ring

Specification

Size/Rating: PN100 DN200, with two bypass valves (gate valve PN100 DN25, F11 / Trim 5#)

Medium: Super high temperature steam, max. 5.9 MPa at +460°C

If you are interested in the above valve, please feel free to contact us via email: [email protected]

Kindly find attached the pictures and GA drawing of the valves.



BALTIC VALVE CO., LTD

Dated Aug. 20th, 2025

Drawing for EN 1984 Gate Valves

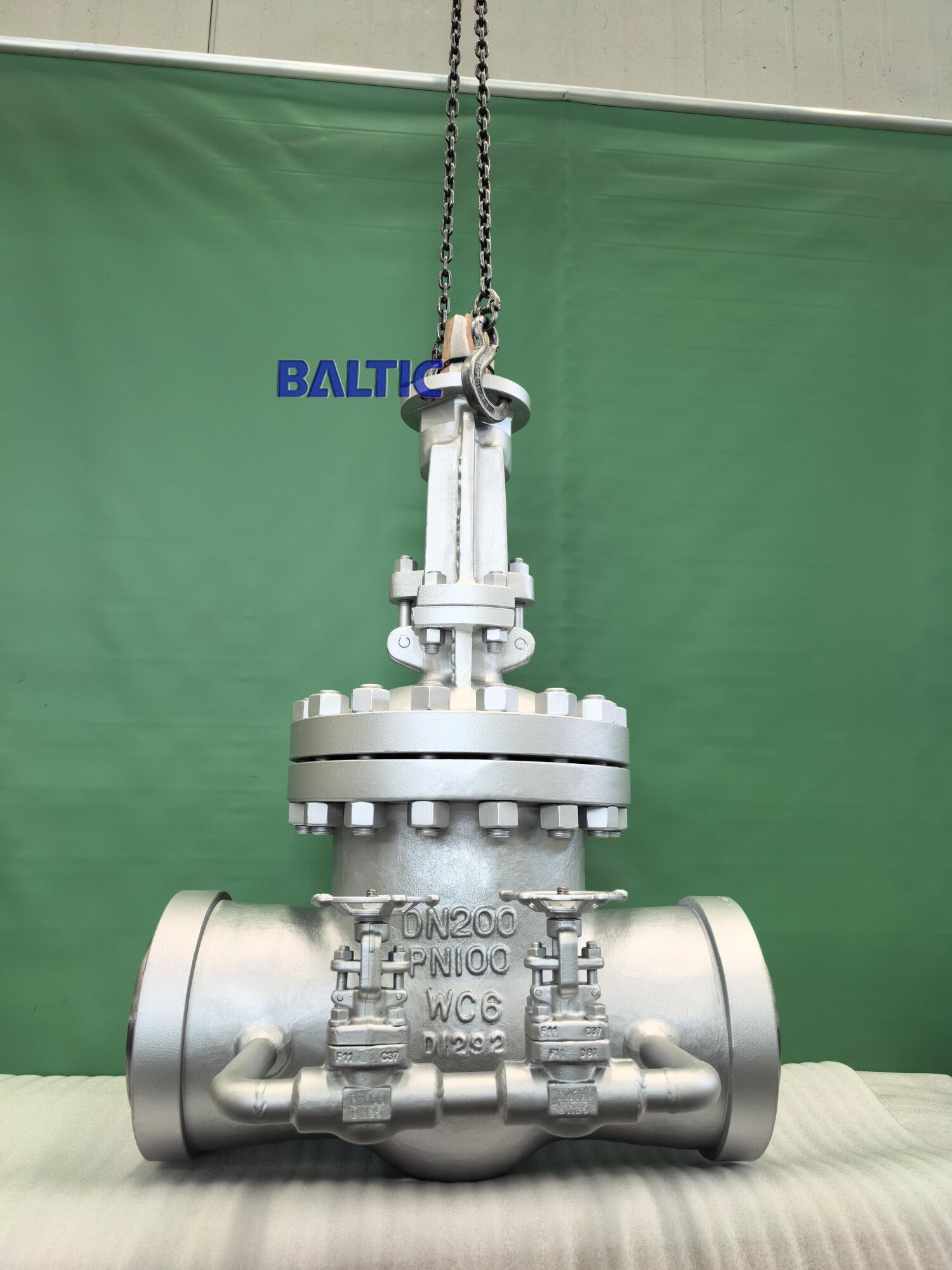

Gate Valve, ASTM A217 WC6, PN100, DN200

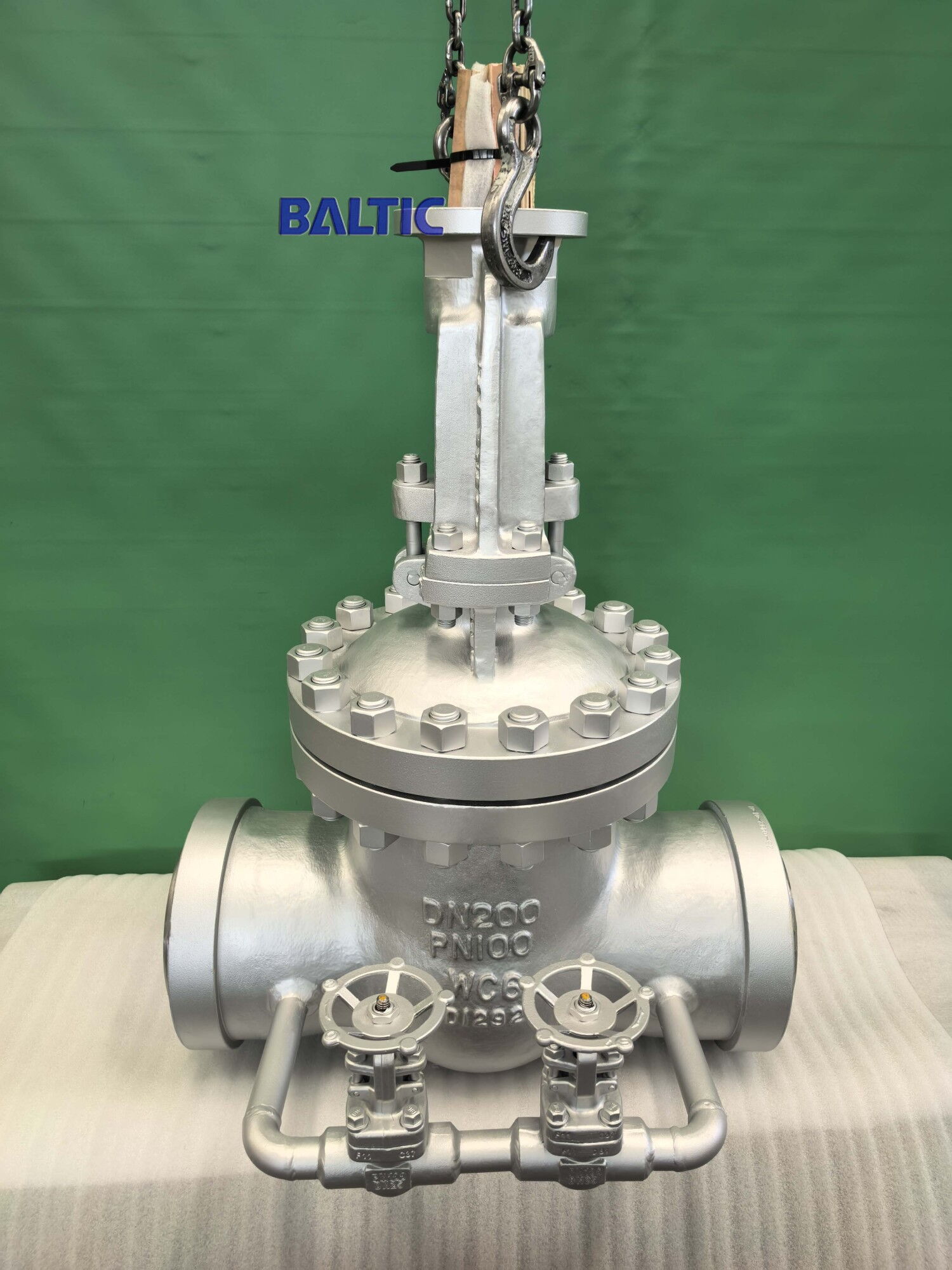

DIN Gate Valve, A217 WC6, PN100, DN200

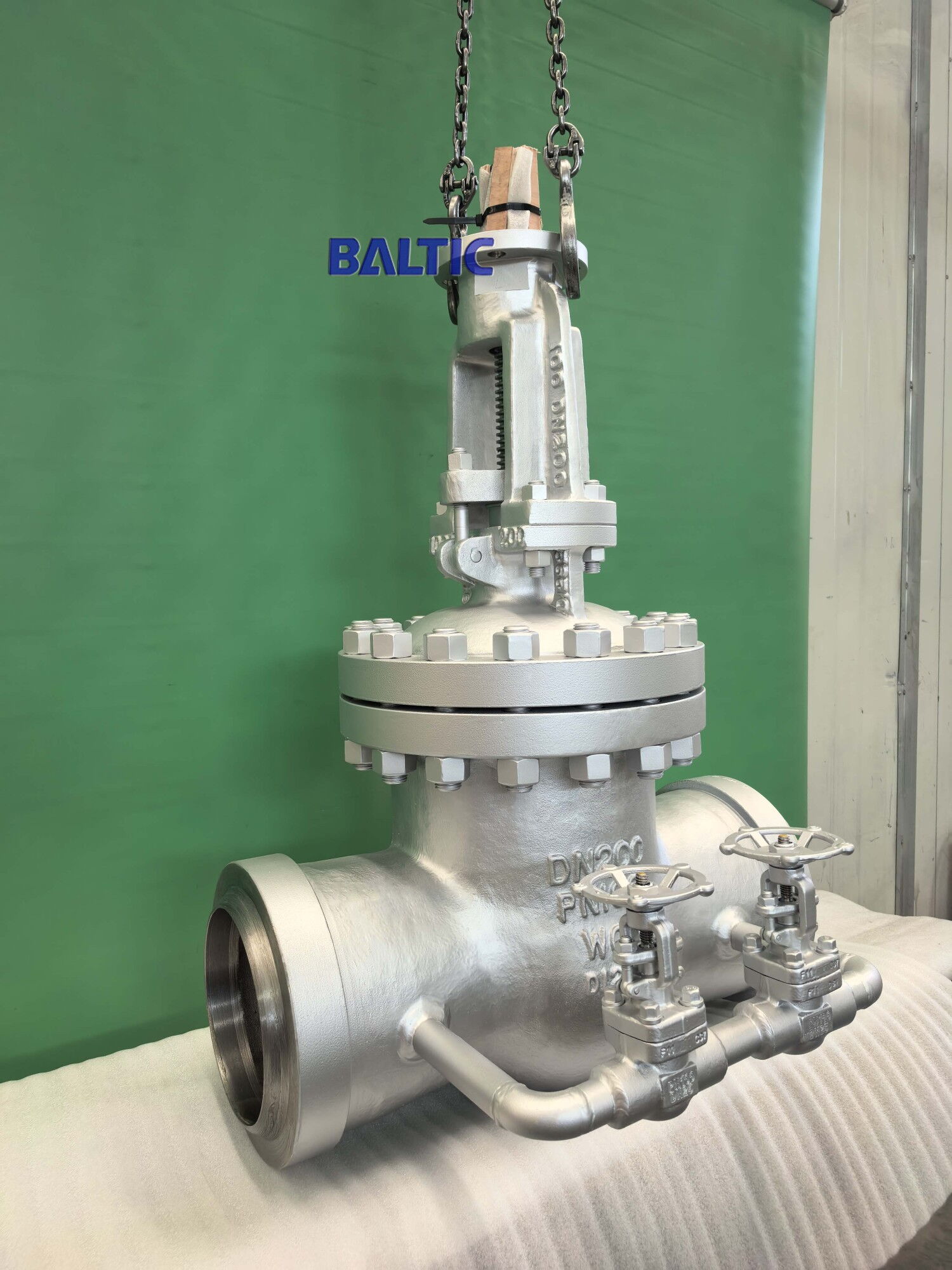

EN1984 Gate Valve, WC6, PN100, DN200
