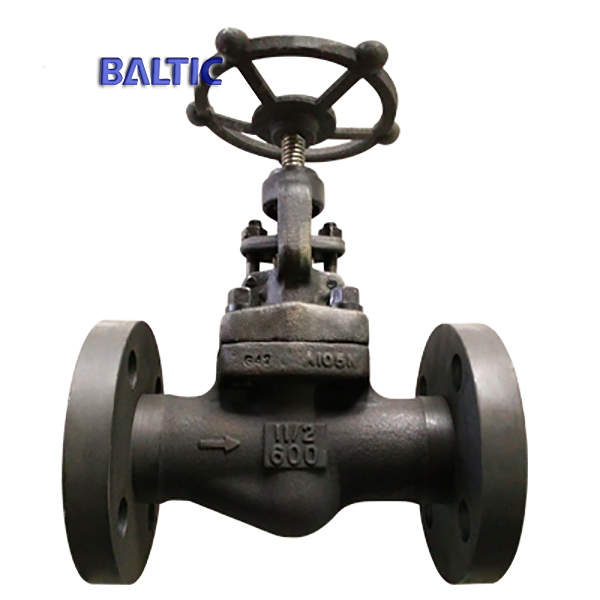

Globe Valve with Regulating Disc, A105N, 1.5IN, CL600, API 602, RF
Key Specifications / Features
Model No.: 1-1
Hits: 365
China Small Size Globe Valve Manufacturer Baltic Supplies Globe Valve with Regulating Disc, ASTM A105N, 1.5IN, 600 LB, RF Ends, API 602, API 598 Test.
Tags:
Detail Information
Valve description:
Name: Small size globe valve, regulating disc.
Design: API 602.
Body: ASTM A105N.
Nominal size: 1.5 Inch.
Nominal class: 600 LB.
Connection ends: RF integral flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
Name: Small size globe valve, regulating disc.
Design: API 602.
Body: ASTM A105N.
Nominal size: 1.5 Inch.
Nominal class: 600 LB.
Connection ends: RF integral flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Small size globe valve |
| Nominal diameter | 1/4” ～ 2” |
| Design temp. | -196℃ ～ 593℃ |
| Design pressure | Class 150 ～ 2500 |
| Material | Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy |
| Design standard | API 602, BS5352 |
| Face to face | Manufacture standard, ASME B16.10 |
| Connection end | NPT, SW, BW, RF, RTJ |
| Test standard | API 598, ISO 5208 |
| Operation | Hand wheel, electric |
| Application | Power station, petroleum, tap water engineering, chemical engineering |
| Function 1 | bolted bonnet, welded bonnet, pressure seal bonnet |
| Function 2 | plug disc, needle disc |
| Function 3 | full bore, reduce bore |
| Function 4 | Integral flanged ends、welded on flanged ends |
