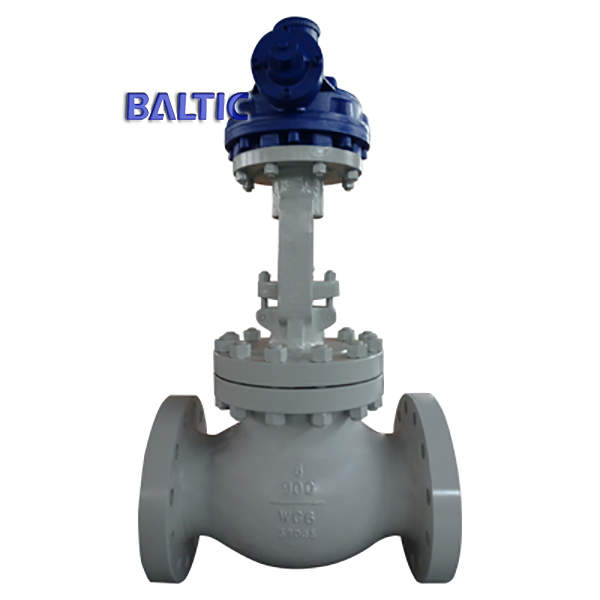

BS 1873 Globe Valve, ASTM A217 WC6, 8IN, 900 LB, RF Flanged Ends
Key Specifications / Features
Model No.: 2-1
Hits: 282
China BS 1873 Globe Valve Factory Baltic Supplies BS 1873 Globe Valve, ASTM A217 WC6, 8IN, Class 900 LB, RF Flanged Ends, ASME B16.34, FF ASME B16.10.
Tags:
Detail Information
Valve description:
Name: Globe Valve.
Design: ASME B16.34, BS 1873.
Body: ASTM A217 WC6.
Nominal size: 8IN.
Nominal class: 900 LB.
Connection ends: RF Flanged ends.
Face to face: ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
Name: Globe Valve.
Design: ASME B16.34, BS 1873.
Body: ASTM A217 WC6.
Nominal size: 8IN.
Nominal class: 900 LB.
Connection ends: RF Flanged ends.
Face to face: ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Globe valve | |
| Nominal diameter | NPS 2”～24” | DN50～DN600 |
| Design temp. | -29℃ ～ 593℃ | |
| Design pressure | class 150 ～ 2500 | PN 16～PN420 |
| Material | A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M, A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN), ASTM B 148 C95800, C95500 | |
| Design standard | BS 1873, ASME B16.34 | DIN 3356 |
| Face to Face | ASME B16.10 | EN558 series |
| Connection end | ASME B16.5, ASME B16.25 | EN1092 series |
| Test standard | API 598, ISO 5208 | EN12266-1 |
| Operation | Hand wheel, bevel gear, electric, pneumatic | |
| Application | electric power, petroleum refining, petrochemical engineering, offshore oil, tap water engineering in urban construction, chemical engineering | |
| Function 1 | OS&Y, bolted bonnet, rising stem | |
| Function 2 | Short stroke for easy – quick open/close | |
| Function 3 | For big size and high pressure: relief cone = internal bypass | |
| Function 4 | Disc sealing could be: flat sealing, throttle cone=regulating disc | |
| Function 5 | Body seat could be threaded seat or welded seat | |
