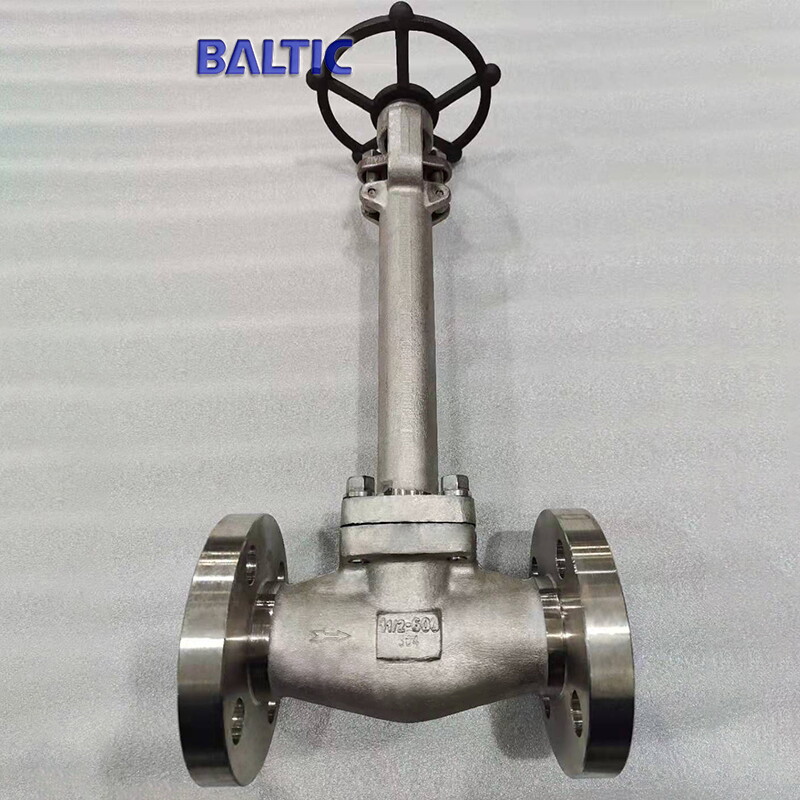

RF Flanged Cryogenic Globe Valve, 1-1/2 Inch, 600 LB, F304

RF Flanged Cryogenic Globe Valve, 1-1/2 Inch, 600 LB, F304

RF Flanged Cryogenic Globe Valve, 1-1/2 Inch, 600 LB, F304

Key Specifications / Features

Model No.: Hits: 7

Fabricated by a leading RF Flanged Cryogenic Globe Valve manufacturer, this valve is designed for optimum performance. With a size of 1-1/2 inches and a pressure rating of 600 LB, it conforms to API 602 and is constructed from ASTM A182 F304 Stainless Steel. Featuring DN40 and PN100 specifications, it is equipped with an RF flange, handwheel, and electric operation option, ensuring versatile functionality in various industrial applications.
Request a quote Share

Next: 2 Inch Cryogenic Globe Valve, 600 LB, ASTM A182 F304, API 602

Previous: Class 600 LB Cryogenic Globe Valve, 1 IN, API 602, A182 F316

Detail Information

Valve description:
Name: Cryogenic globe valve, for low temperature at -196℃.
Description: with extension stem.
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 1-1/2 Inch.
Nominal class: 600 LB.
Ends connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small-size cryogenic gate valve
Nominal diameter 1/4 - 4 Inch
Design temp. Down to -196℃
Design pressure Class 150 - 1500 LB
Material Stainless steel
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application LPG, LNG
Special treatment Deep cryogenic treatment.
Special test Impact test.
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 Short stroke for easy – quick open/close
Function 3 Disc sealing could be: flat sealing, throttle cone=regulating disc
Function 4 The body seat could be a threaded seat or welded seat
Structure feature 1 Extended Bonnet.
Structure feature 2 With drip plate.
Structure feature 3 Fire Safety & Anti-static Design.
