Key Specifications / Features
Detail Information

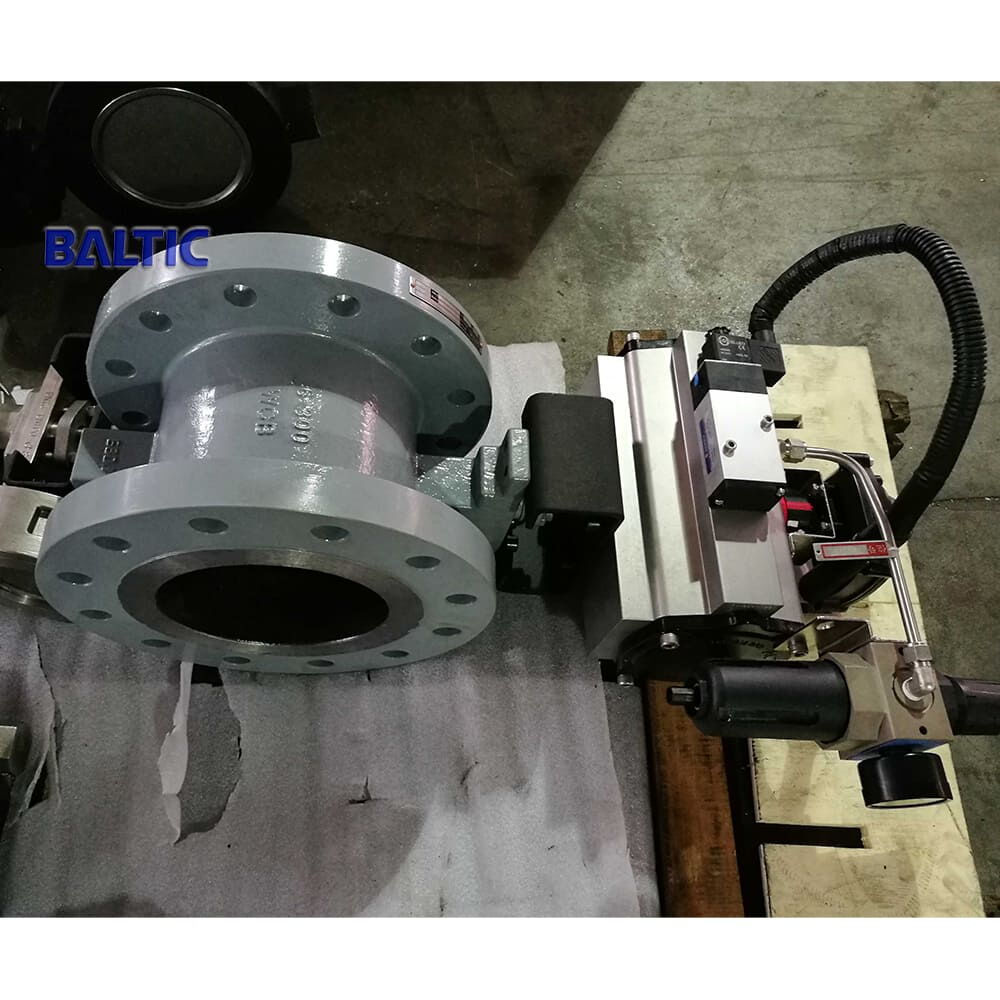

Product Name: Double Flanged Type Butterfly Valve
Design: API 609
Body: ASTM A216 WCB
Disc: ASTM A351 CF8M
Stem: 17-4PH
Seat: RPTFE
Sizes: 6 Inch, DN150, 150 mm
Nominal Class: Class 300 LB
Connection Ends: Double Flange Ends
Face to Face: API 609
Test and Inspection: API 598
High Performance Butterfly Valve
Valve Design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional
Type: Lug, wafer, double flanges
Valve Face to Face: API 609
Testing & inspection: API 598 - tight A
Body: Cast Material Carbon Steel, Stainless Steel, Aluminum Bronze
Disc: Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH / A182 F51 / MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: Lever, Gearbox + HW
Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
