Key Specifications / Features
Detail Information
Valve Description:

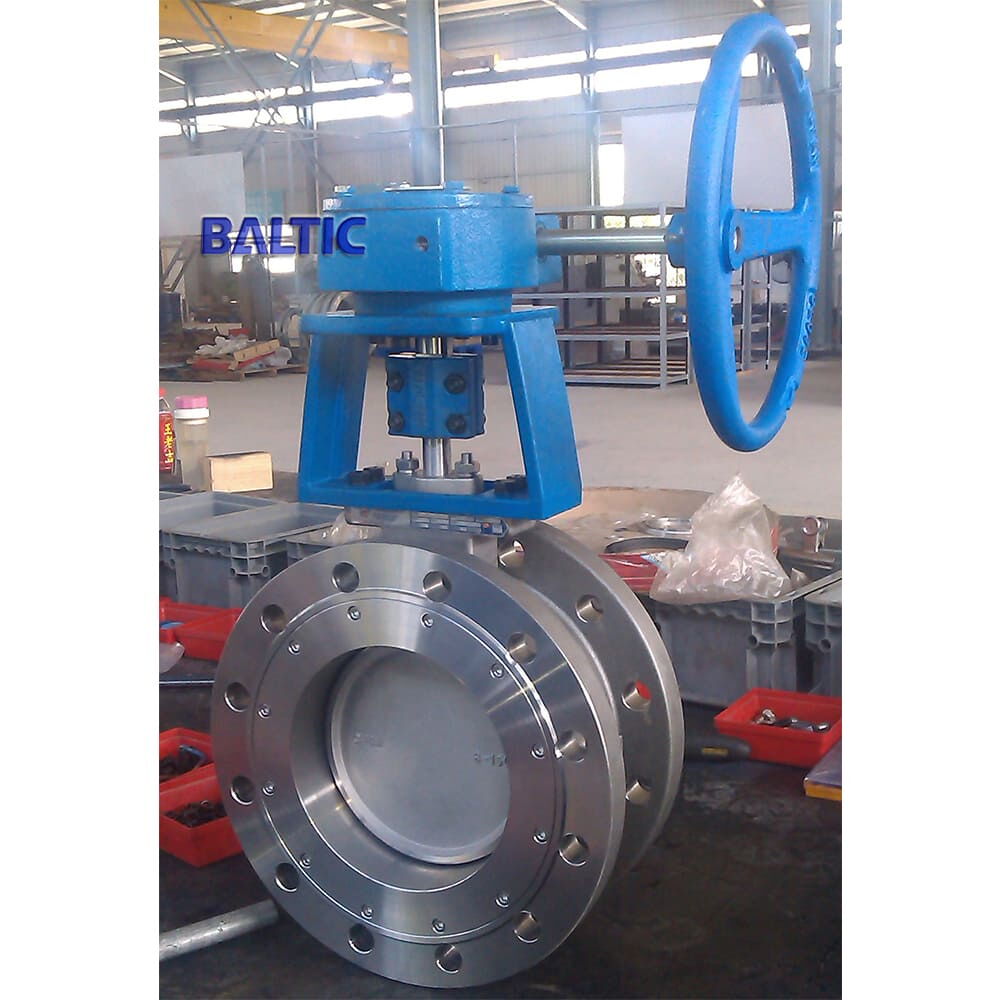

Name: Double Flanged Type Butterfly Valve
Design: API 609
Body Material: ASTM A351 CF8M
Disc: ASTM A351 CF8M
Stem: ASTM A182 F51
Seat: RPTFE (soft seat)
Sizes: 6 Inch, DN150, 150 mm
Pressure: Class 150 LB, PN20
Connection Ends: double flange ends
Face to Face: API 609
Test and Inspection: API 598
High Performance Butterfly Valve
Valve Design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi-Directional
Type: Lug, wafer, double flanges
Valve Face to Face: API 609
Testing & inspection: API 598 - tight A
Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc: Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH/ A182 F51/ MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW
Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
