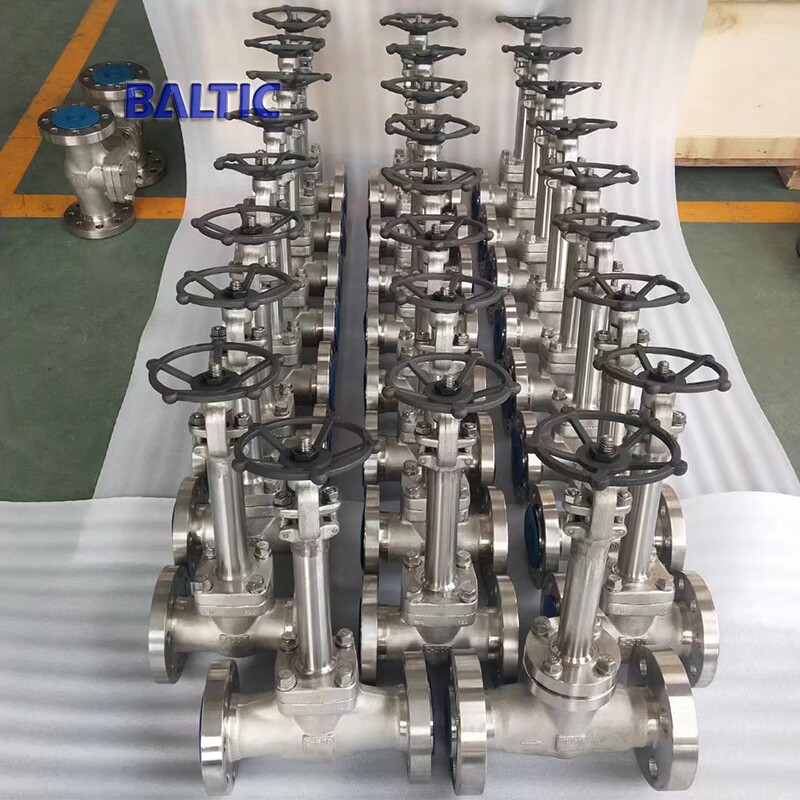

• Cryogenic Globe Valve, 2 Inch, 1500 LB, API 602, A182 F304

Cryogenic Globe Valve, 2 Inch, 1500 LB, API 602, A182 F304

Cryogenic Globe Valve, 2 Inch, 1500 LB, API 602, A182 F304

Cryogenic Globe Valve, 2 Inch, 1500 LB, API 602, A182 F304

Key Specifications / Features

Model No.: Hits: 3

Discover top-quality Cryogenic Globe Valves from a leading manufacturer. Our 2-inch valves, designed to API 602 standards, are built to withstand CL 1500 LB pressure. Crafted from durable ASTM A182 F304 Stainless Steel, these valves feature a DN50 size and PN250 rating. With Extended Stem and Bonnet for enhanced performance, and RF End for easy installation. Trust our reliable valves for your cryogenic applications.
Request a quote Share

Previous: Class 1500 LB Cryogenic Globe Valve, 1-1/2 IN, API 602, F304

Detail Information

Valve description:
Name: Cryogenic globe valve, for low temperature at -196℃.
Description: with extension stem.
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 2 Inch.
Nominal class: 1500 LB.
Ends connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small-size cryogenic gate valve
Nominal diameter 1/4 - 4 Inch
Design temp. Down to -196℃
Design pressure Class 150 - 1500 LB
Material Stainless steel
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application LPG, LNG
Special treatment Deep cryogenic treatment.
Special test Impact test.
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 Short stroke for easy – quick open/close
Function 3 Disc sealing could be: flat sealing, throttle cone=regulating disc
Function 4 The body seat could be a threaded seat or welded seat
Structure feature 1 Extended Bonnet.
Structure feature 2 With drip plate.
Structure feature 3 Fire Safety & Anti-static Design.
