• Integral Flanged End Globe Valve, A350 LF2, 2 Inch, 300 LB, RF

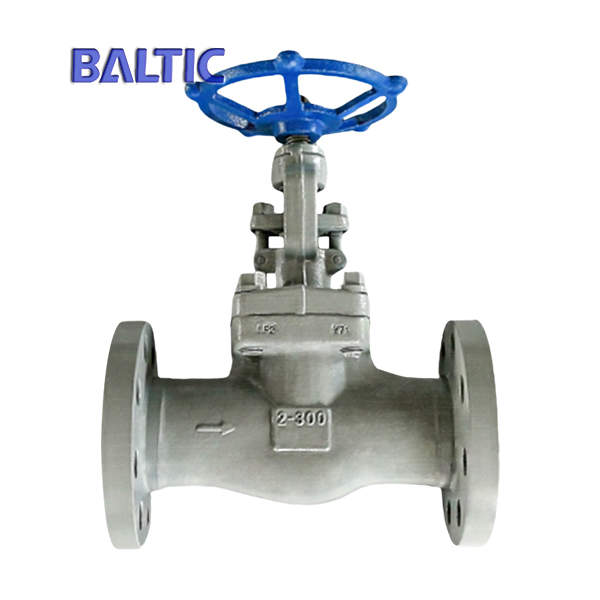

Integral Flanged End Globe Valve, A350 LF2, 2 Inch, 300 LB, RF

Integral Flanged End Globe Valve, A350 LF2, 2 Inch, 300 LB, RF

Integral Flanged End Globe Valve, A350 LF2, 2 Inch, 300 LB, RF

Key Specifications / Features

Model No.: Hits: 83

Integral Flanged End Globe Valve Supplier in China: Forged Steel Integral Flanged End Globe Valve, ASTM A350 LF2, 2 Inch, Class 300 LB, RF, API 602.
Request a quote Share

Next: DIN BW End Forged Globe Valve, ASTM A350 LF2, DN10, PN320, API 602

Previous: ASTM A105N Forged Globe Valve, 1 Inch, 300 LB, RF, Integral Flanged

Detail Information

Name: Small size globe valve, with integral flange.
Design: API 602.
Body: ASTM A350 LF2.
Nominal size: 2 Inch.
Nominal class: 300 LB.
End connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small size globe valve
Nominal diameter 1/4 Inch - 4 Inch
Design temp.  -196℃  - 573℃
Design pressure Class 150 - 4500
Material Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end NPT, SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application Power station, petroleum, chemical engineering
Function 1 bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 plug disc, needle disc
Function 3 full bore, reduce bore
Function 4 Integral flanged ends, welded on flanged ends
