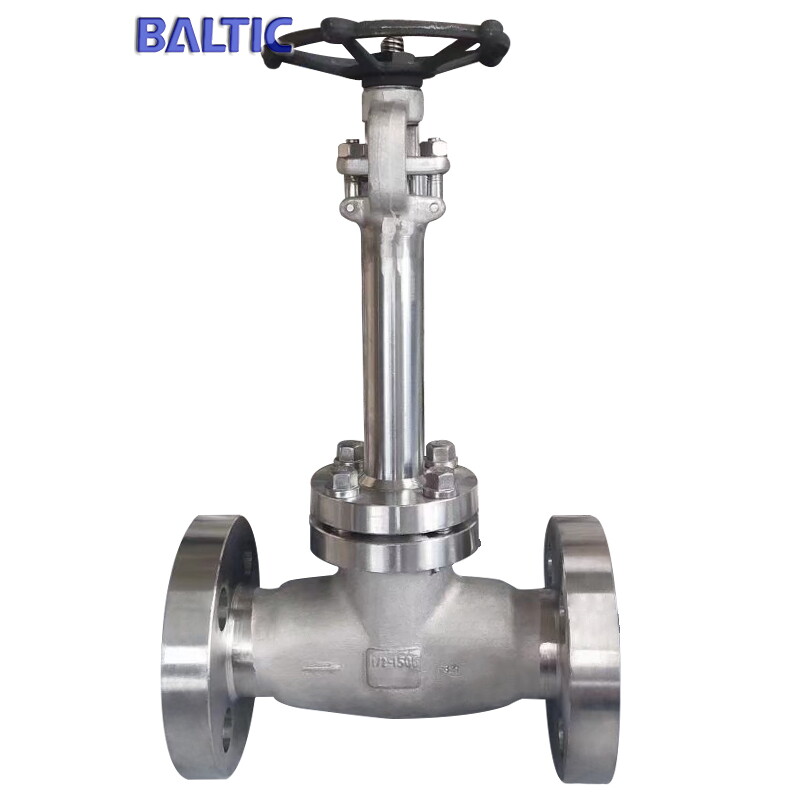

Class 1500 LB Cryogenic Globe Valve, 1-1/2 IN, API 602, F304
Key Specifications / Features
Model No.: Hits: 2
Discover our premium Class 1500 LB Cryogenic Globe Valve, meticulously engineered to API 602 standards. Crafted from high-quality ASTM A182 F304 Stainless Steel, this 1-1/2 Inch valve boasts exceptional durability and performance. With a DN40 size and PN250 pressure rating, it ensures reliable operation in demanding environments. Featuring BS 5352 compliance, our valve incorporates Fire Safety & Anti-static Design for added peace of mind. Trust in our valve for superior reliability and efficiency.
Request a quote
Share
Tags:
Detail Information
Valve description:
Name: Cryogenic globe valve, for low temperature at -196℃.
Description: with extension stem.
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 1-1/2 Inch.
Nominal class: 1500 LB.
Ends connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
Name: Cryogenic globe valve, for low temperature at -196℃.
Description: with extension stem.
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 1-1/2 Inch.
Nominal class: 1500 LB.
Ends connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Small-size cryogenic gate valve |
| Nominal diameter | 1/4 - 4 Inch |
| Design temp. | Down to -196℃ |
| Design pressure | Class 150 - 1500 LB |
| Material | Stainless steel |
| Design standard | API 602, BS 5352 |
| Face to face | Manufacture standard, ASME B16.10 |
| Connection end | SW, BW, Flange |
| Test standard | API 598, ISO 5208 |
| Operation | Hand wheel, electric |
| Application | LPG, LNG |
| Special treatment | Deep cryogenic treatment. |
| Special test | Impact test. |
| Function 1 | Bolted bonnet, welded bonnet, pressure seal bonnet |
| Function 2 | Short stroke for easy – quick open/close |
| Function 3 | Disc sealing could be: flat sealing, throttle cone=regulating disc |
| Function 4 | The body seat could be a threaded seat or welded seat |
| Structure feature 1 | Extended Bonnet. |
| Structure feature 2 | With drip plate. |
| Structure feature 3 | Fire Safety & Anti-static Design. |
