• ASTM A182 F5 Gate Valve, API 602, DN40, PN100, BS 5352, RF

ASTM A182 F5 Gate Valve, API 602, DN40, PN100, BS 5352, RF

ASTM A182 F5 Gate Valve, API 602, DN40, PN100, BS 5352, RF

ASTM A182 F5 Gate Valve, API 602, DN40, PN100, BS 5352, RF

Key Specifications / Features

Model No.: Hits: 205

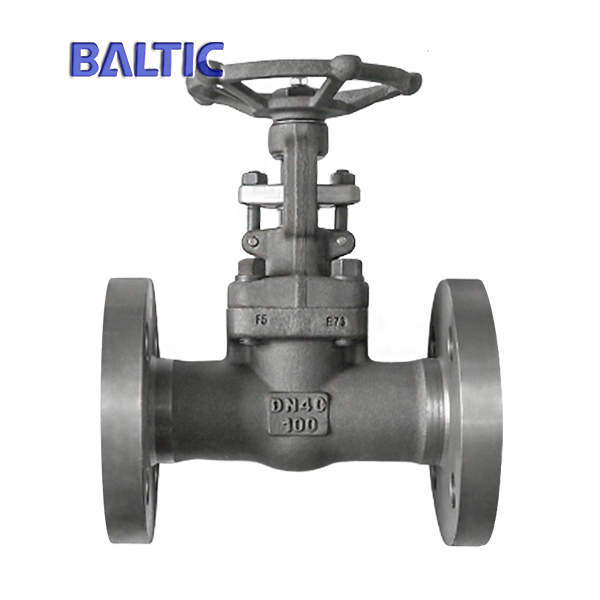

ASTM A182 F5 Gate Valve Maker in China: Small Size ASTM A182 F5 Gate Valve with Integral Flange, API 602, DN40, PN100, RF Ends, Solid Wedge, BS 5352.
Request a quote Share

Next: Solid Wedge Gate Valve, ASTM B148 C95500, 1 Inch, 800 LB, NPT

Previous: ASTM A182 F316 Gate Valve, API 602, 3/4 Inch, 300 LB, Flange, BW

Detail Information

Valve description:
Name: Small size gate valve, with integral flange ends.
Design: API 602.
Body: ASTM A182 F5.
Nominal size: DN40.
Nominal class: PN100.
End connection: Flange ends.
Face to face: EN 558-1 series.
Test and inspection: EN 12266-1.

Technical parameters and characteristics
Product Small size gate valve.
Nominal diameter 1/4 Inch-4 Inch.
Design temp. -196℃-573℃.
Design pressure Class 150-4500 LB.
Material Carbon steel, Stainless steel, Alloy steel, Bronze.
Design standard API 602, BS 5352.
Face to face Manufacture standard, ASME B16.10.
Connection end NPT, SW, BW, Flange.
Test standard API 598, ISO 5208.
Operation Hand wheel, electric.
Application Power station, petroleum, chemical engineering.
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet.
Function 2 Solid wedge.
Function 3 Full bore, reduce bore.
Function 4 Integral flanged ends, welded on flanged ends.
