• ASTM A182 F316 Gate Valve, API 602, 3/4 Inch, 300 LB, Flange, BW

ASTM A182 F316 Gate Valve, API 602, 3/4 Inch, 300 LB, Flange, BW

ASTM A182 F316 Gate Valve, API 602, 3/4 Inch, 300 LB, Flange, BW

ASTM A182 F316 Gate Valve, API 602, 3/4 Inch, 300 LB, Flange, BW

Key Specifications / Features

Model No.: Hits: 65

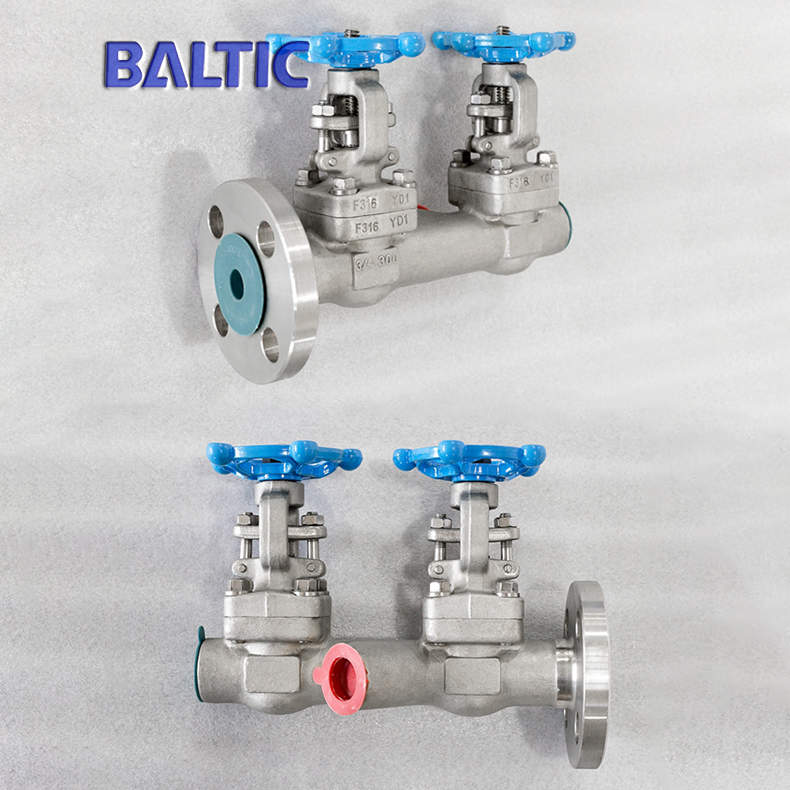

ASTM A182 F316 Gate Valve Maker in China: Forged Double Gate Valve, ASTM A182 F316, API 602, 3/4 Inch, 300 LB, BS 5352, BW, Flange RF Ends, Full Bore.
Request a quote Share

Next: ASTM A182 F5 Gate Valve, API 602, DN40, PN100, BS 5352, RF

Previous: Forged Double Gate Valve, ASTM A182 F316, 3/4 Inch, 300 LB, RF, BW

Detail Information

Valve description:
Name: Integrally forged double gate valve, with integral flange end and BW end.
Design: API 602.
Body: ASTM A182 F316.
Nominal size: 3/4 Inch.
Nominal class: Class 300 LB.
End connection: Flange end and BW end.
Face to face: Manufacture standard.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small size gate valve.
Nominal diameter 1/4 Inch-4 Inch.
Design temp. -196℃-573℃.
Design pressure Class 150-4500 LB.
Material Carbon steel, Stainless steel, Alloy steel, Bronze.
Design standard API 602, BS 5352.
Face to face Manufacture standard, ASME B16.10.
Connection end NPT, SW, BW, Flange.
Test standard API 598, ISO 5208.
Operation Hand wheel, electric.
Application Power station, petroleum, chemical engineering.
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet.
Function 2 Solid wedge.
Function 3 Full bore, reduce bore.
Function 4 Integral flanged ends, welded on flanged ends.
