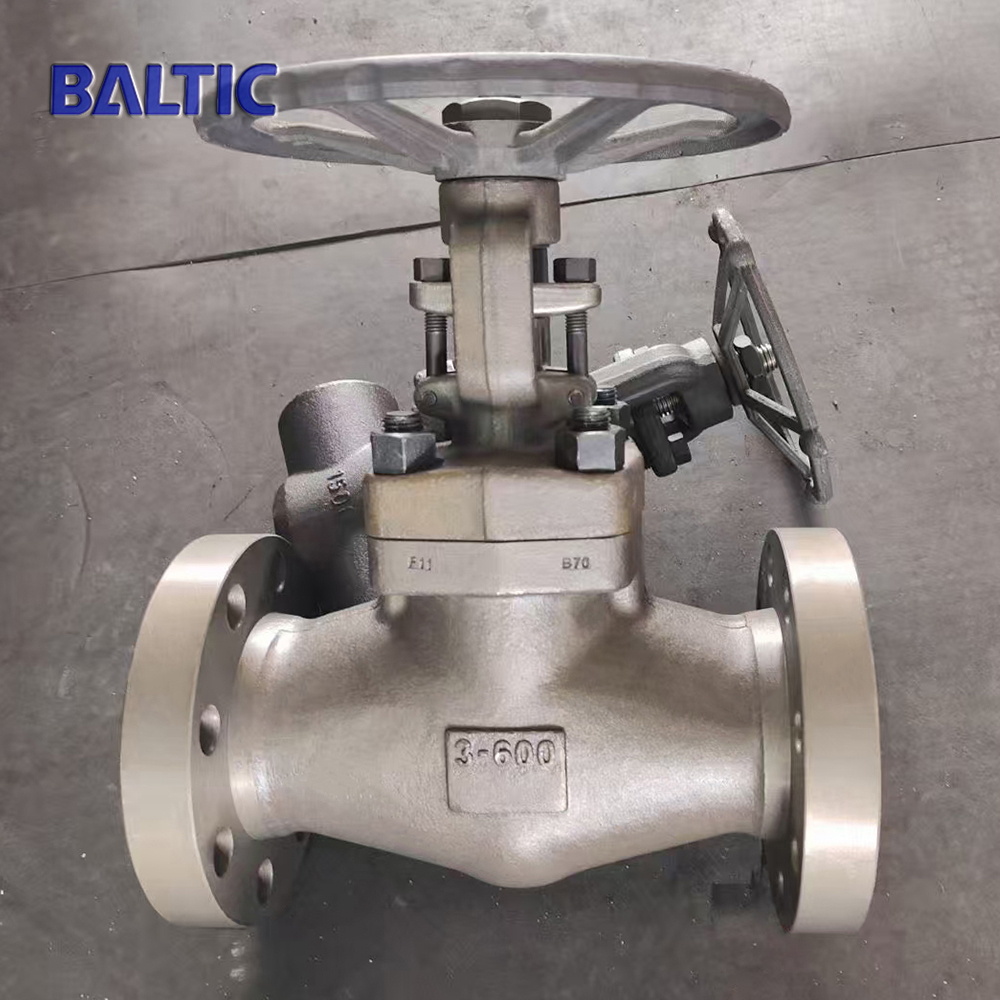

ASTM A182 F11 Globe Valve, API 602, 3 IN, 600 LB, RF Flanged

This small size globe valve is engineered in accordance with API 602 standards, featuring a robust ASTM A182 F11 alloy steel body for excellent strength and high-temperature performance. With a 3-inch (DN80) size and Class 600 LB pressure rating, it is designed to deliver precise flow control and reliable shutoff in demanding industrial applications. The RF flanged ends ensure secure and leak-tight connections, making installation and maintenance convenient. Ideal for use in power generation, petrochemical, and refinery systems, this valve guarantees durability and long service life. As a leading alloy steel globe valve manufacturer in China, we provide high-quality, dependable solutions tailored to global industry needs.


Tags:

• ASTM A182 F11 Globe Valve
• API 602 Globe Valve
• 3 Inch Globe Valve
• Class 600 LB Globe Valve

Valve Description:
Name: Small Size Globe Valve, with integral flange.
Design: API 602.
Body: ASTM A182 F11.
Nominal Size: 3 Inch, DN80
Nominal Class: 600 LB.
End Connection: RF Flanged Ends.
Face to Face: ASME B16.10.
Test and Inspection: API 598.

Technical Parameters and Characteristics
Product: Small-size globe valve
Nominal Diameter: 1/4 - 4 Inch
Design temp.: -196°C - 573°C
Design pressure: Class 150 - 4500  LB
Material: Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design Standard: API 602, BS 5352
Face to Face: Manufacture Standard, ASME B16.10
Connection Ends: NPT, SW, BW, Flange
Test Standard: API 598, ISO 5208
Operation: Handwheel, electric
Application: Power station, petroleum, chemical engineering
Function 1: bolted bonnet, welded bonnet, pressure seal bonnet
Function 2: plug disc, needle disc
Function 3: full bore, reduced bore
Function 4: Integral flanged Ends, welded on flanged Ends
