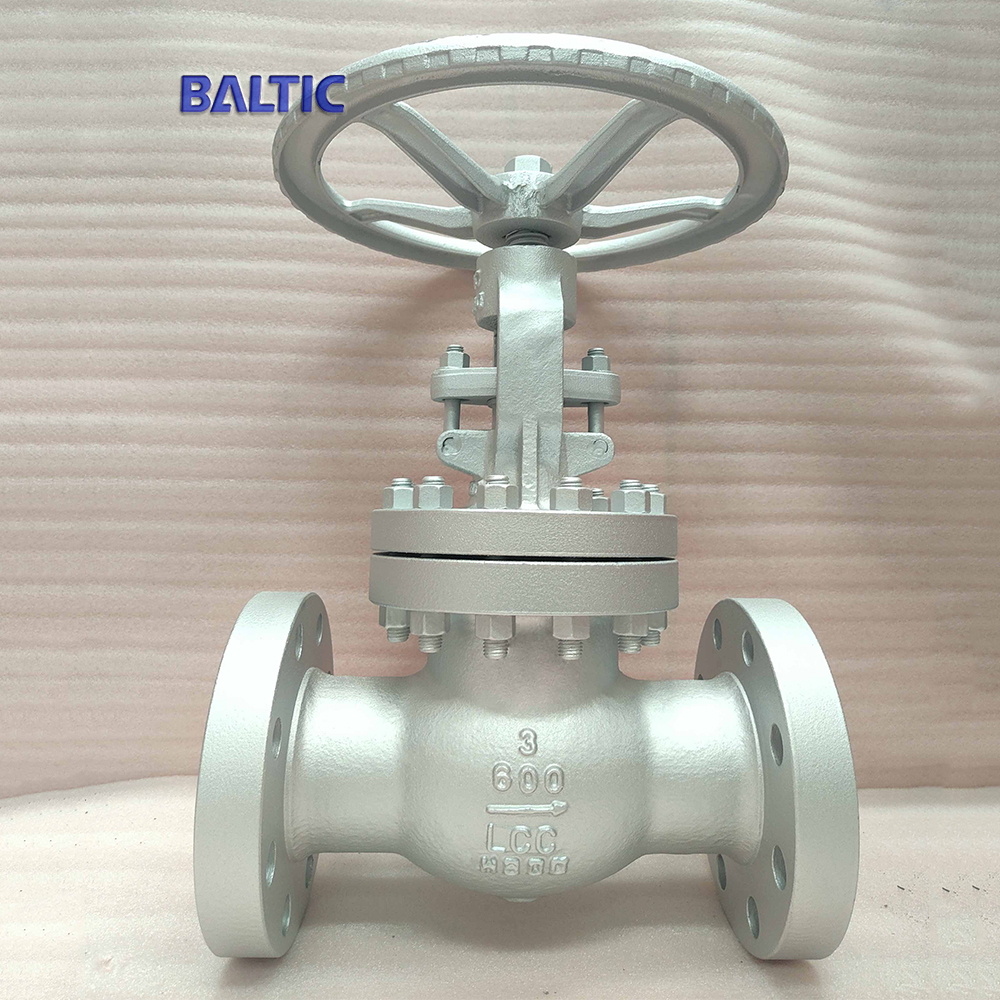

• ASTM A352 LCC Globe Valves, ASME B16.34, 3 Inch, CL600, RF
ASTM A352 LCC Globe Valves, ASME B16.34, 3 Inch, CL600, RF

ASTM A352 LCC Globe Valves, ASME B16.34, 3 Inch, CL600, RF

ASTM A352 LCC Globe Valves, ASME B16.34, 3 Inch, CL600, RF

Key Specifications / Features

Model No.: GLV-2026050901 Hits: 0

This globe valve is manufactured in accordance with ASME B16.34 and BS 1873 standards, featuring an ASTM A352 LCC low-temperature carbon steel body for excellent toughness and durability in demanding applications. Designed in 3 Inch (DN80) size with a Class 600 LB / PN100 pressure rating, it is equipped with RF flanged ends for secure and reliable pipeline connections. The valve provides precise flow regulation, dependable sealing performance, and long service life in oil & gas, petrochemical, LNG, and power generation systems. As a leading Carbon Steel Globe Valves Manufacturer in China, we deliver high-quality valve solutions with reliable performance and competitive pricing.

Request a quote Share

Next: BS 1873 Globe Valve, ASME B16.34, A216 WCB, 3 IN, 600 LB, RF

Previous: BS 1873 Globe Valve, A352 LCC, 4 Inch, 300 LB, RF Flanged

Detail Information

Valve Description:
Name: Globe Valve
Design: ASME B16.34, BS 1873.
Body: ASTM A352 LCC
Nominal Size: 3 Inch, DN80
Nominal Class: CL600 LB, PN100
Connection Ends: RF Flanged Ends.
Face to Face: ASME B16.10.
Test and Inspection: API 598.

Technical Parameters and Characteristics

Product

Globe Valve

Nominal Diameter

NPS 1/2 Inch - 24 Inch

DN15-DN600

Design temp.

 -29°C - 593°C

Design pressure

Class 150 - 2500 LB

PN10-PN420

Material

ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC
A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M,
A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN),
ASTM B148 C95800, C95500

Design standard

BS 1873, ASME B16.34

DIN 3356

Face to Face

ASME B16.10

EN 558 series

Connection end

ASME B16.5, ASME B16.25

EN 1092 series

Test standard

API 598, ISO 5208

EN 12266-1

Operation

Hand wheel, bevel gear, electric, pneumatic

Application

electric power, petroleum refining, petrochemical engineering, offshore oil,
tap water engineering in urban construction, chemical engineering

Function 1

OS&Y, bolted bonnet, rising stem

Function 2

Short stroke for easy – quick open/close

Function 3

For big Size and high pressure: relief cone = internal bypass

Function 4

Disc sealing could be: flat sealing, throttle cone=regulating disc

Function 5

Body seat could be threaded seat or welded seat
