• UNS N08825 Swing Check Valve, API 602, 2 Inch, 1500 LB

UNS N08825 Swing Check Valve, API 602, 2 Inch, 1500 LB

UNS N08825 Swing Check Valve, API 602, 2 Inch, 1500 LB

UNS N08825 Swing Check Valve, API 602, 2 Inch, 1500 LB

Key Specifications / Features

Model No.: Hits: 17

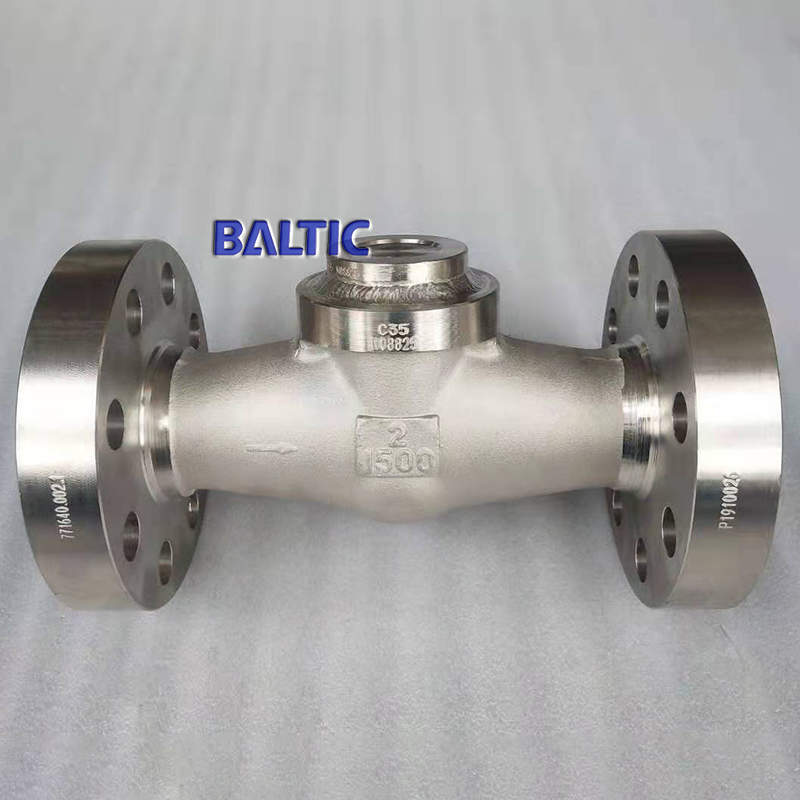

UNS N08825 Swing Check Valve Factory: Welded Bonnet Swing Type Check Valves, UNS N08825, API 602, 2 Inch, Class 1500 LB, RF Integral Flanged Ends.
Request a quote Share

Next: 3 Inch Lift Check Valve, ASTM A105N, 1500 LB, RF Flanged

Previous: ASTM A105N Lift Check Valve, PSB, 1 Inch, 1500 LB, RF

Detail Information

Valve Description
Name: Small Size Check Valve, Swing Type, Welded Bonnet
Design: API 602
Body: UNS N08825
Nominal Size: 2 Inch
Nominal Class: Class 1500 LB
End Connection: RF Integral Flanged Ends
Face to Face: as per ASME B16.10
Test and Inspection: API 598

Technical Parameters and Characteristics
Product: Small Size Gate Valve
Nominal Diameter: 1/4 Inch - 4 Inch
Design Temp.: -196℃ - 573℃
Design Pressure: Class 150 LB - Class 4500 LB
Material: Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard: API 602, BS 5352
Face to Face: Manufacture Standard, ASME B16.10
Connection End: NPT, SW, BW, Flanged
Test Standard: API 598, ISO 5208
Operation: X
Application: Power Station, Petroleum, Chemical Engineering
Function 1: Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet
Function 2: Swing Type, Lift Type
Function 3: Full Bore, Reduced Bore
Function 4: Integral Flanged Ends, Welded on Flanged Ends
