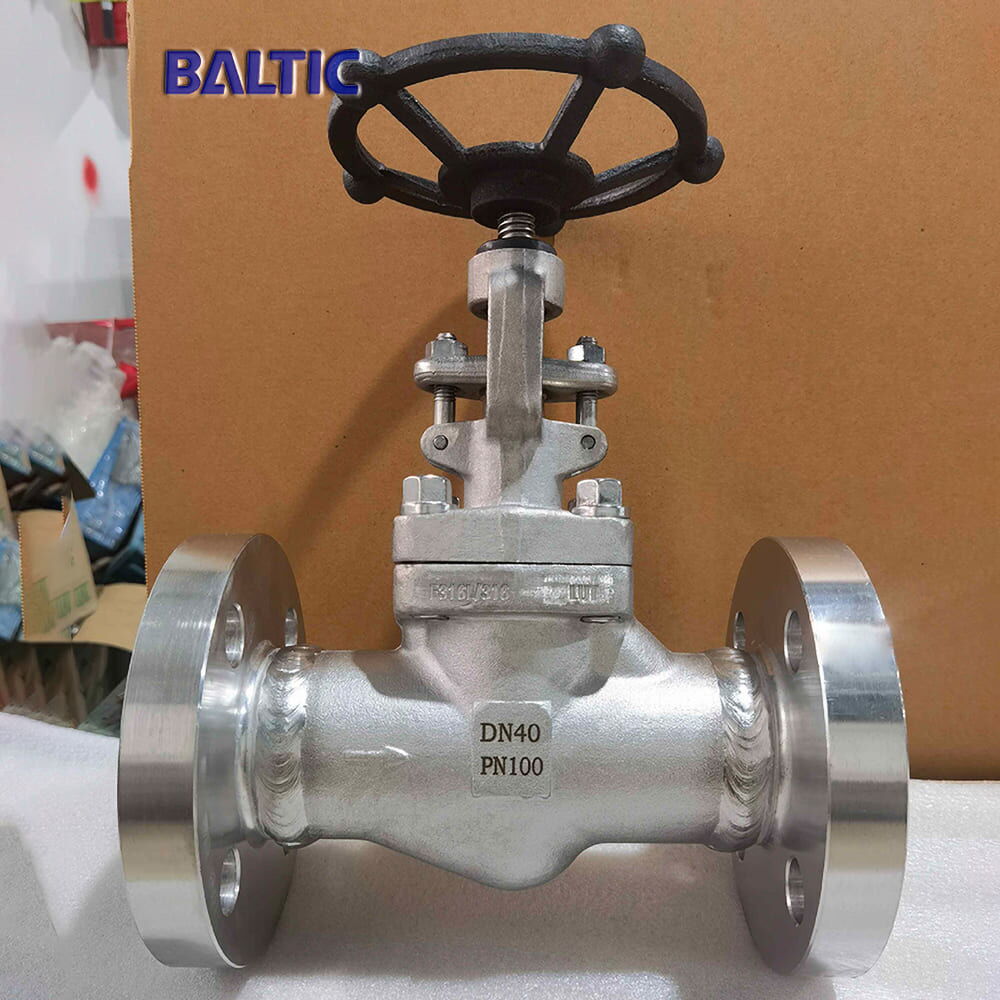

Stainless Steel Globe Valve, ISO 15761, F316, DN40, PN100

Name: Stainless Steel Globe Valve, ISO 15761, F316, DN40, PN100
SKU: bv-glv-20250308-04
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: BV-GLV-20250308-04 Hits: 38

As China's leading stainless steel globe valve provider, we specialize in high-quality small-size globe valves built for precision and durability. Constructed with a robust ASTM A182 F316 stainless steel body, our valves meet ISO 15761 design standards, ensuring reliable performance in demanding applications. Available in DN40 size and rated for PN100, they are designed to withstand high-pressure conditions. Featuring RF flanged ends for secure connections, these valves offer excellent flow control and longevity, making them an ideal choice for various industrial applications.

Request a quote

Tags:

Next: DIN 3356 Globe Valve, ASTM A105N, DN50, PN40, Full Bore, RF

Previous: Bolted Bonnet Globe Valve, ISO 15761, A105N, DN40, PN100, RF

Detail Information

ISO 15761 Globe Valves, ASTM A182 F316, RF Flanged.

Valve Description:
Name: Small Size Globe Valve.
Design: ISO 15761
Body Material: ASTM A182 F316
Nominal Size: DN40, 1-1/2 Inch
Nominal Class: PN100, Class 600 LB
End Connection: RF
Face to Face: As Per EN 558-1/Row 2
Test and Inspection: EN 12266-1

Technical Parameters and Characteristics

Product Item	Small Size Globe Valve
Nominal Diameter	1/4 Inch - 4 Inch
Design Temperature	-196°C - 573°C
Design pressure	Class 150 LB - Class 4500 LB
Material	Forged Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard	API 602, BS 5352
Face to Face	Manufacturer Standard, ASME B16.10
Connection End	NPT, SW, BW, Flange
Test Standard	API 598, ISO 5208
Operation	Hand Wheel, Electric
Application	Power Station, Petroleum, Chemical Engineering
Function 1	Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet
Function 2	Plug Disc, Needle Disc
Function 3	Full Bore, Reduce Bore
Function 4	Integral Flanged Ends, Welded on Flanged Ends
