The Cryogenic Valves for a Low Temperature of -196℃

  • 03 23, 2021
The following API 602 cryogenic gate valves are shiped for one of our European clients. The descriptions are as follows. If you want to place an order, you are welcome to contact us via email: [email protected].

Product description
  • API 602 cryogenic gate valve with hand wheel
  • Extension stem, with drip plate
  • O.S&Y, BB, Rising Stem
  • Reduce port , solid Wedge
  • With flow direction arrow and relief hole
Materials
Body/bonnet: ASTM A182 F304
Trim: No.12 (316+ STL 6)
Stem: ASTM A182 F316
Wedge: ASTM A276 F316

Ends Connection: RF as per ASME B16.5
Ends Connection: SW as per ASME B16.11

Face to Face: as per ASME B16.10
Face to Face: as per MFG STD

Item 1)  3qty  1” x 150LB         L=127 MM
Item 2)  7qty  1” x 300LB         L=165 MM
Item 3)  4qty  1½” x 300LB       L=190 MM
Item 4)  8qty  ¾” x 800LB        L=92 MM

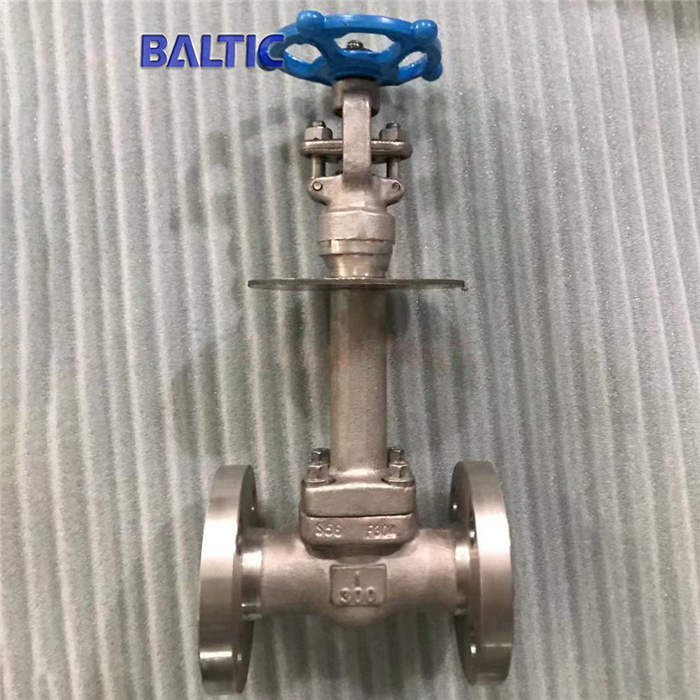

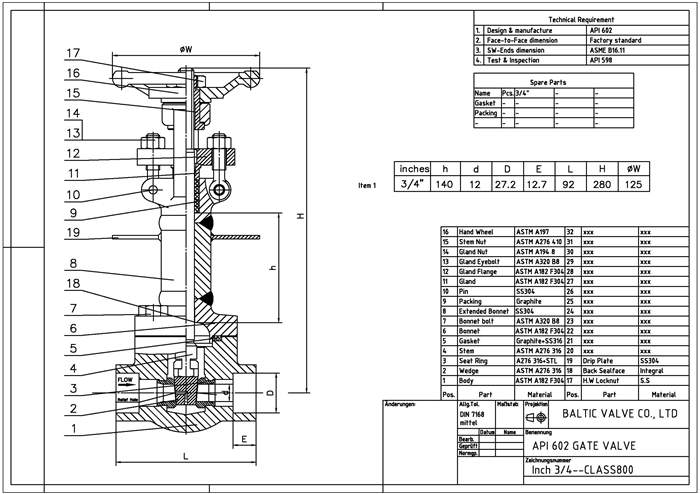

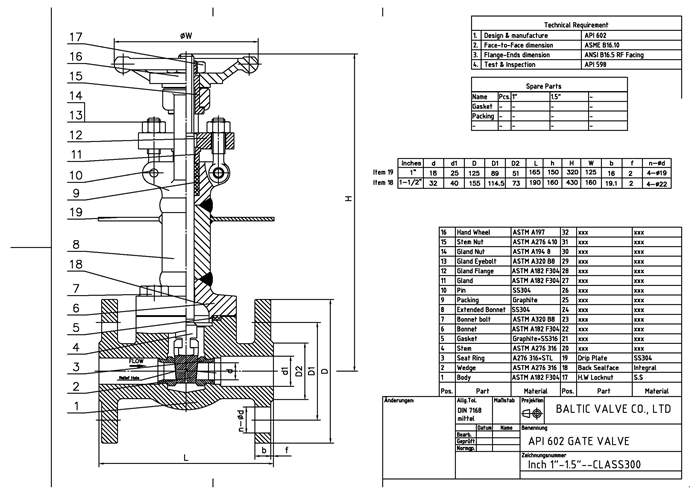

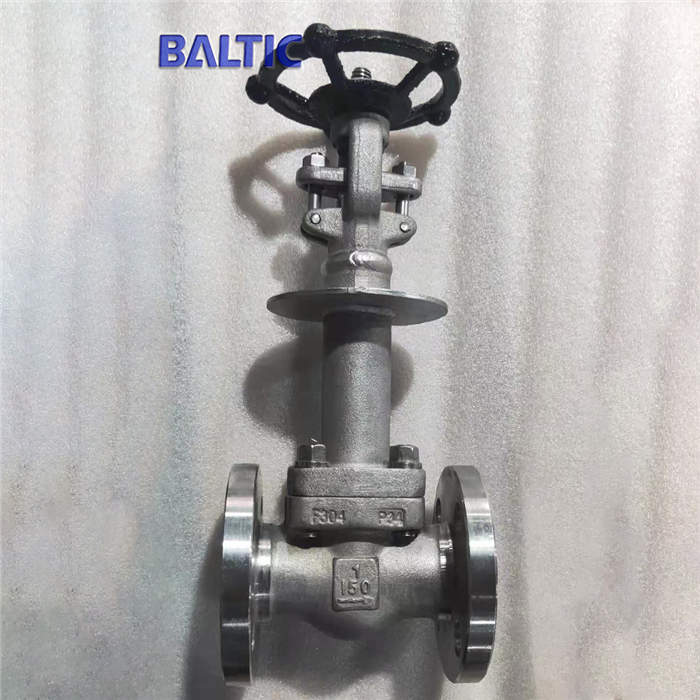

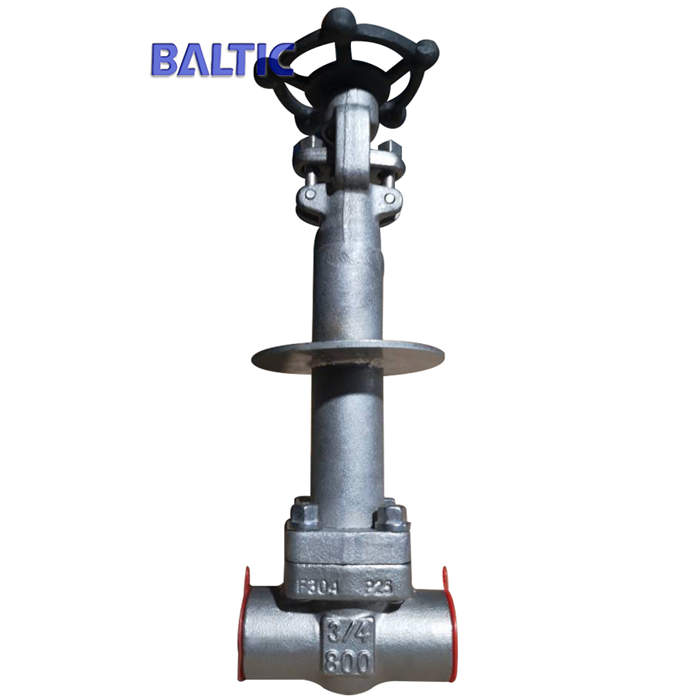

Kindly, please find the attached files of GA drawings and valve pictures.

BALTIC VALVE CO., LTD
March, 23, 2021
