We just finished manufacturing some gate valves with big sizes for one of our European clients. The gate valves will arrive at the client's warehouse at the beginning of Nov. 2021. To protect our client, we have removed the logo on the valve body.

Product descriptions
EN1984 GATE VALVE with bare stem ready for mounting AUMA actuator
***OS&Y, BB, BG, Rising Stem
***Flexible Wedge, with Back Seat

***Body/bonnet: GP240GH (1.0619)
***Trim: no. 8 - body seat STL overlay

***Ends Connection: EN1092-1/B1
***Face to Face: EN558-1/row 14 = 470 mm (DN800-PN6, Flat Body)
***Face to Face: EN558-1/row 15 = 800 mm (DN600-PN16,Oval Body)

***Item 1)  2Qty DN800 - PN6
ISO top flange 5210 F25. Stem: Tr70 x10LH
Working Condition: cooling water, max. 0.5 bar, max. 35 ° C
Series No.: 21-0586-01-01(1st qty); 21-0586-01-02(2nd qty)

***Item 3)  2Qty DN600 - PN16
ISO top flange 5210 F16. Stem: Tr55 x8LH
Working Condition: cooling water, max. 6 bar, max. 35 ° C
Series No.: 21-0586-03-01(1st qty); 21-0586-03-02(2nd qty)

Non-Destructive Test
Non-destructive test by the 3rd party:
Additional requirements for steel castings acc. EN 1559-2
- Visual testing acc. EN 1370, Level VC3
- Liquid penetration test acc. EN 1371-1, Level 4
(10% from delivery scope and min. 1pc. from every melt)
Document in line with EN 10204-3.1

Corrosion protection
External coating system service temp. -30°C to +120°C,
corrosivity categories C5-M acc. to ISO 12944-5:
- Surface preparation Sa 2½ acc. to ISO 8501-1
- First layer min. 75µm Spray painting Intergard 251
- Second layer min. 100µm Spray painting Intergard 475HS
- Third layer min. 65µm Spray painting Intergard 990
Total film thickness min. 240µm, RAL 7001 (silver grey)

Warranty period
5 years/expected service life more than 15 years

If you are interested in gate valves with big sizes, pls freely contact us via email: [email protected]

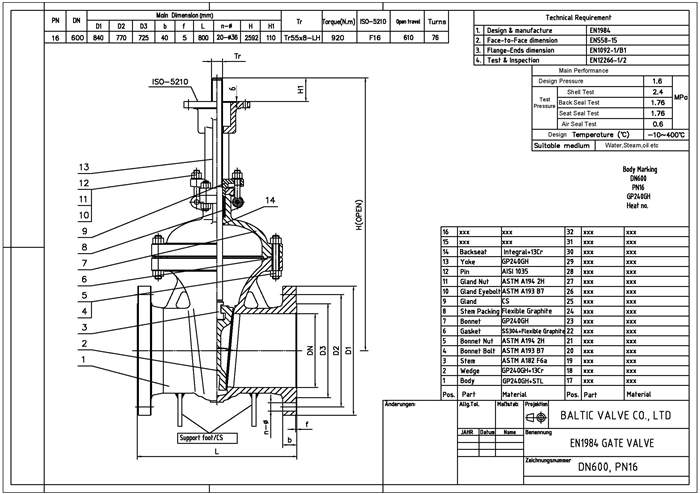

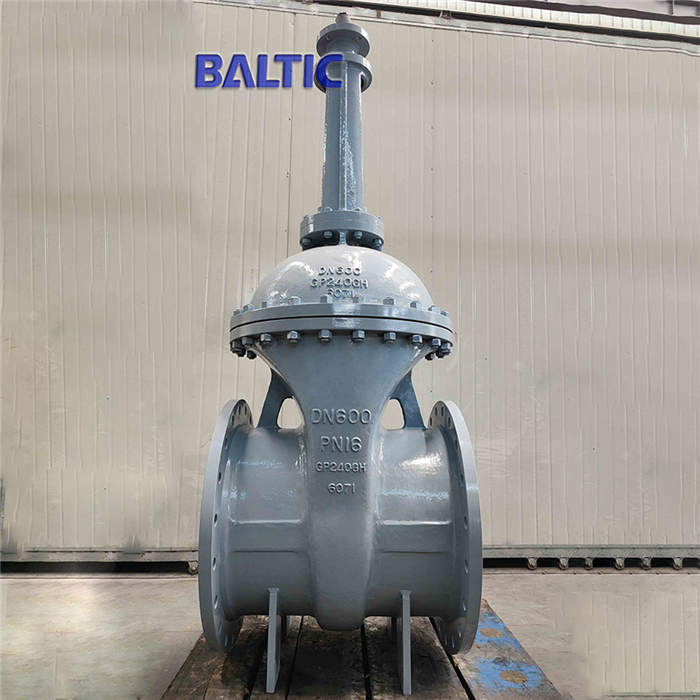

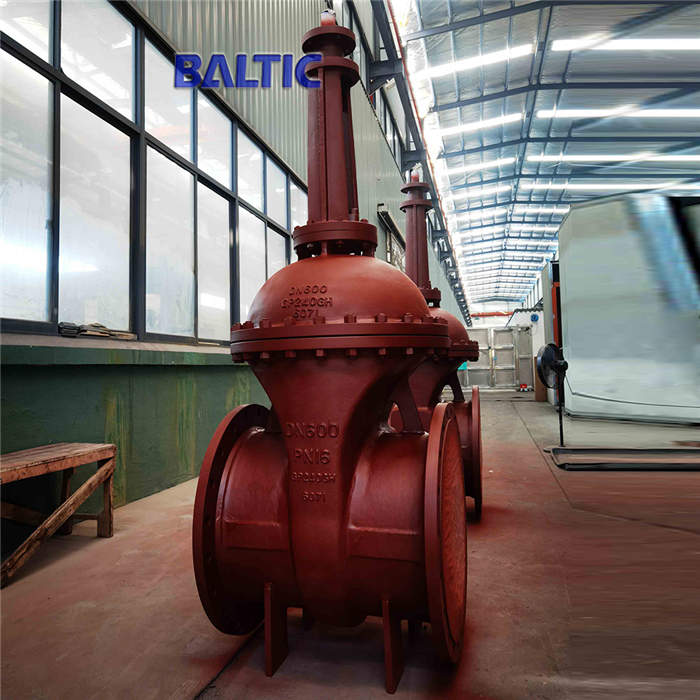

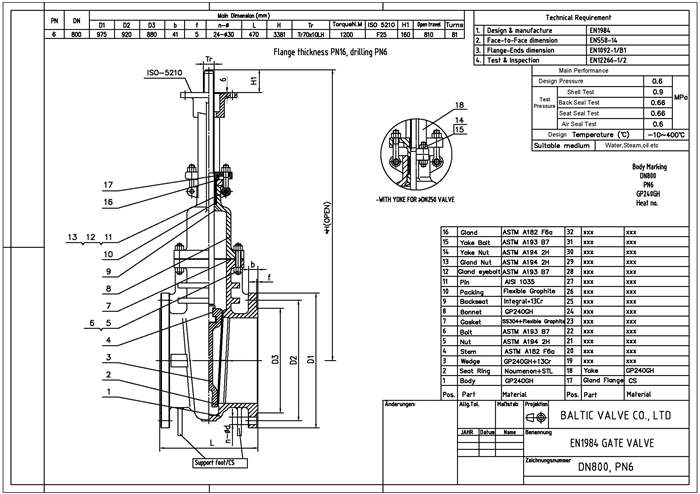

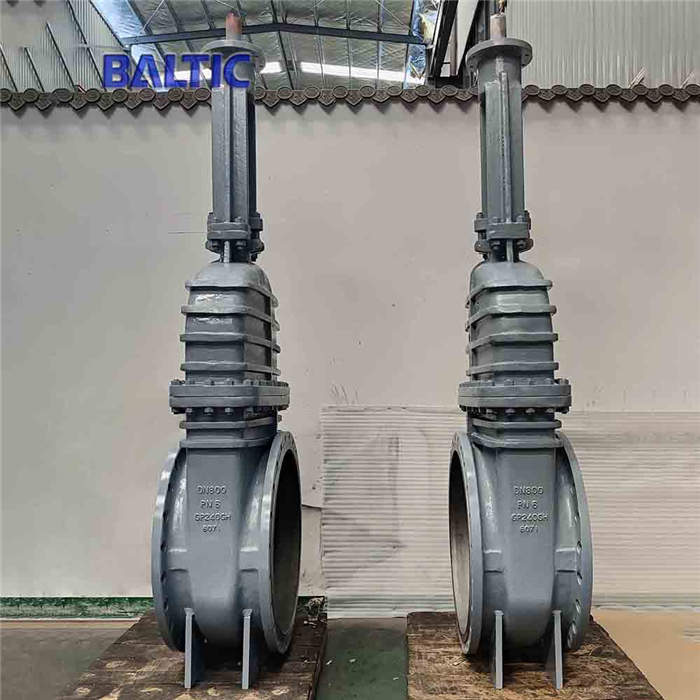

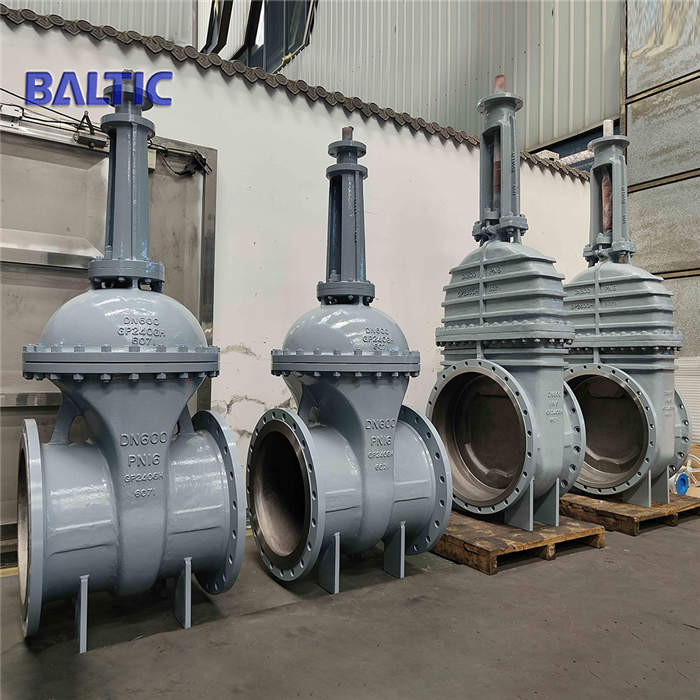

Kindly, please find the attached GA drawings and valve pictures
