DIN Gate Valves Shipped to Europe (PN63 Series)

DIN Gate Valves Shipped to Europe (PN63 Series)

  • 06 01, 2021
We shipped stock DIN gate valves to one of our important customers in Europe. 166 pieces valves were loaded in two containers of 20 inches, which are only partial DIN valves for this customer.

There are three layers of coatings for these valves, namely, the primer, the intermediate layer and the finish. The finish has a total dry film thickness at about 100μm. They can be used for steam pipelines. 100% hydraulic tests and dimension measurements were run by our inspectors for these valves.

Product descriptions

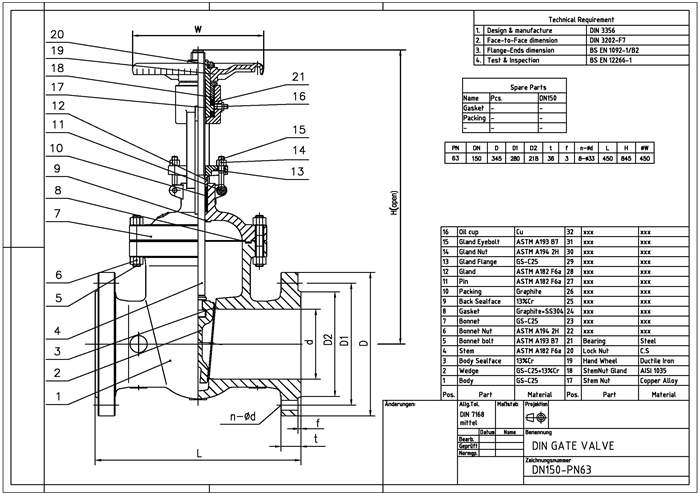

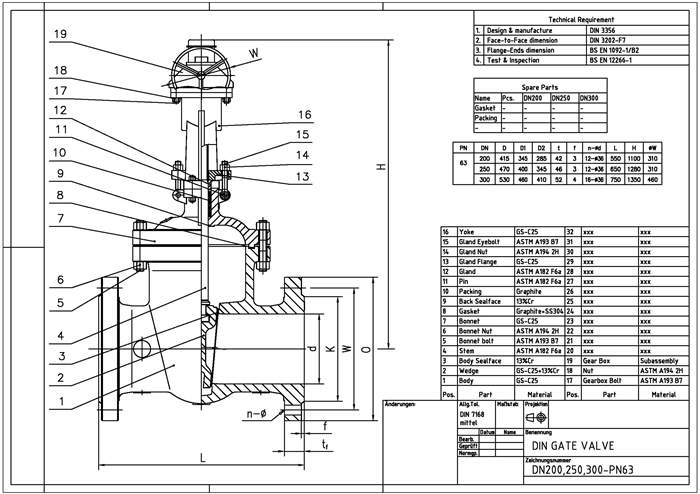

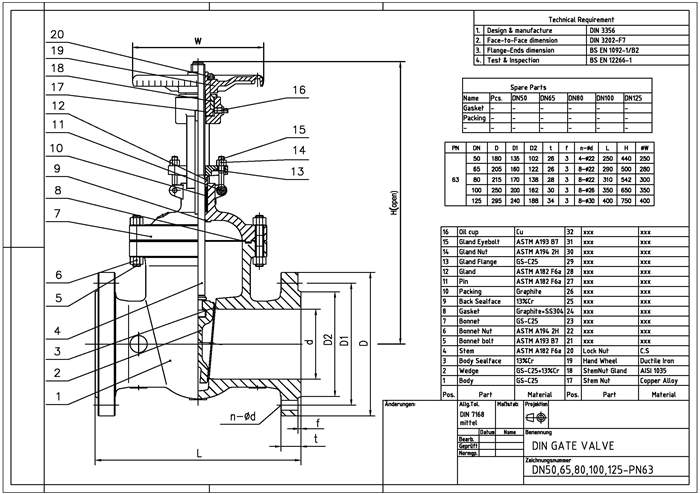

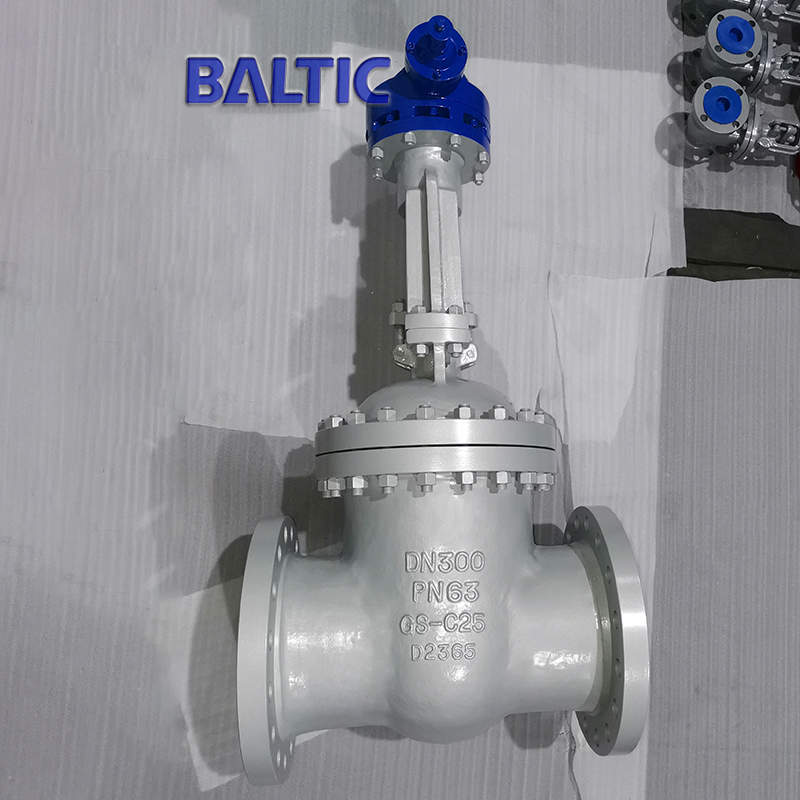

DIN3356 GATE VALVES
OS&Y, BB, rising stem, flexible wedge, full port
with handwheel or gearbox

Body/bonnet GS-C25
Trim 13%Cr
Flanged according EN 1092-1 type B2 for PN63
Face to face dim. acc. EN558-1 type 26 (DIN 3202 F7)

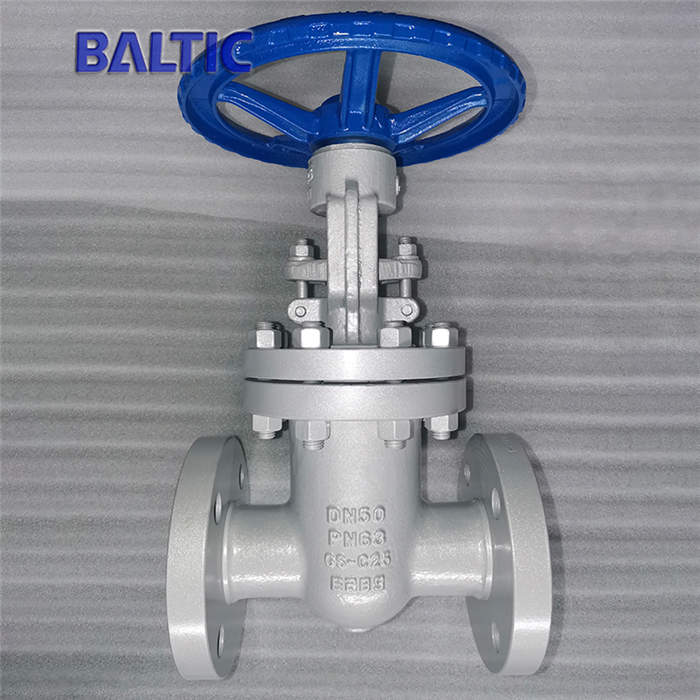

GATE VALVE DN50-PN63:    5 PCS

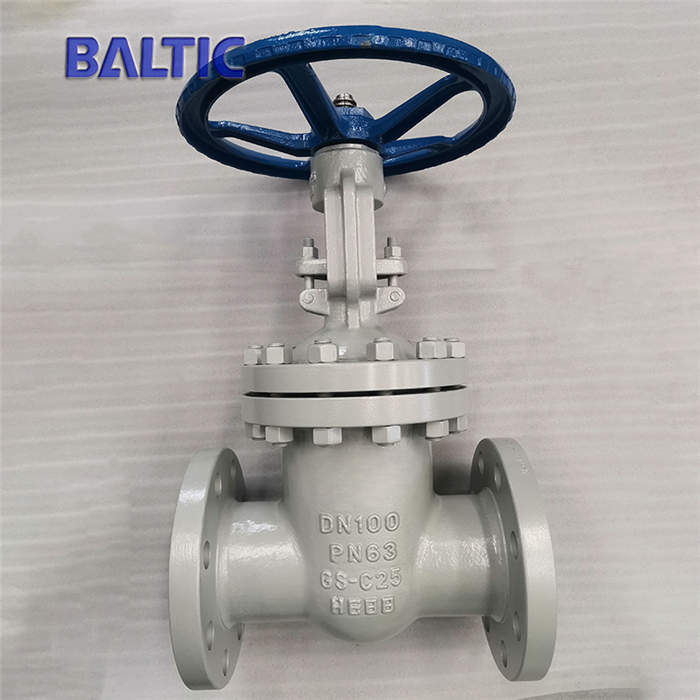

GATE VALVE DN100-PN63:  10 PCS

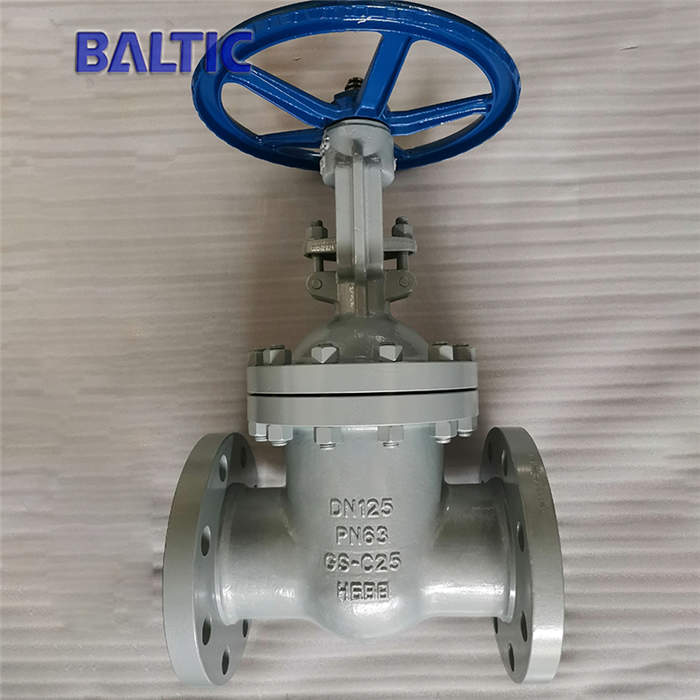

GATE VALVE DN125-PN63:   5 PCS

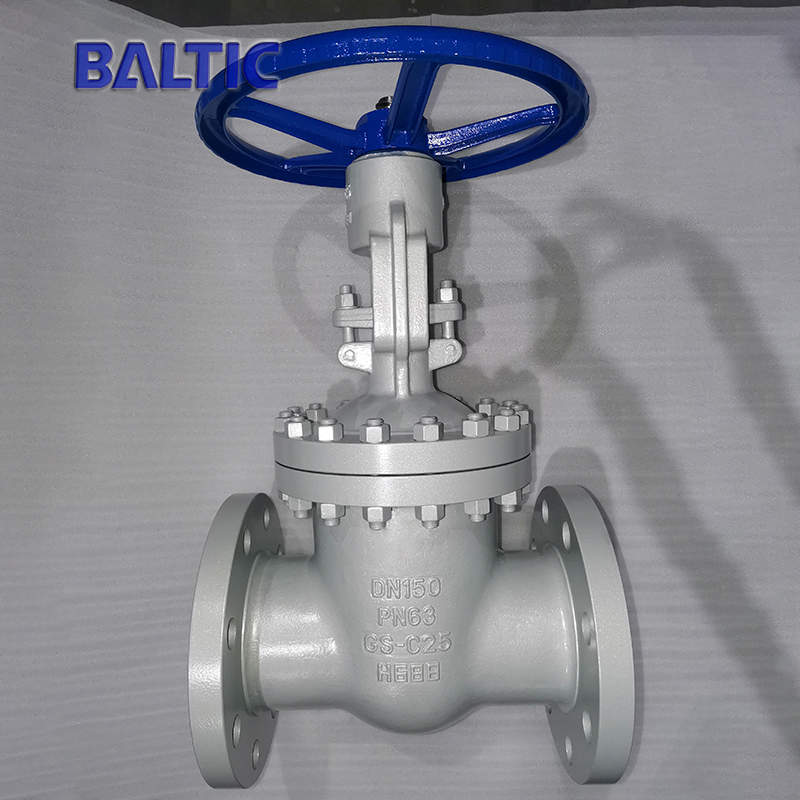

GATE VALVE DN150-PN63:  40 PCS
GATE VALVE DN200-PN63:  15 PCS

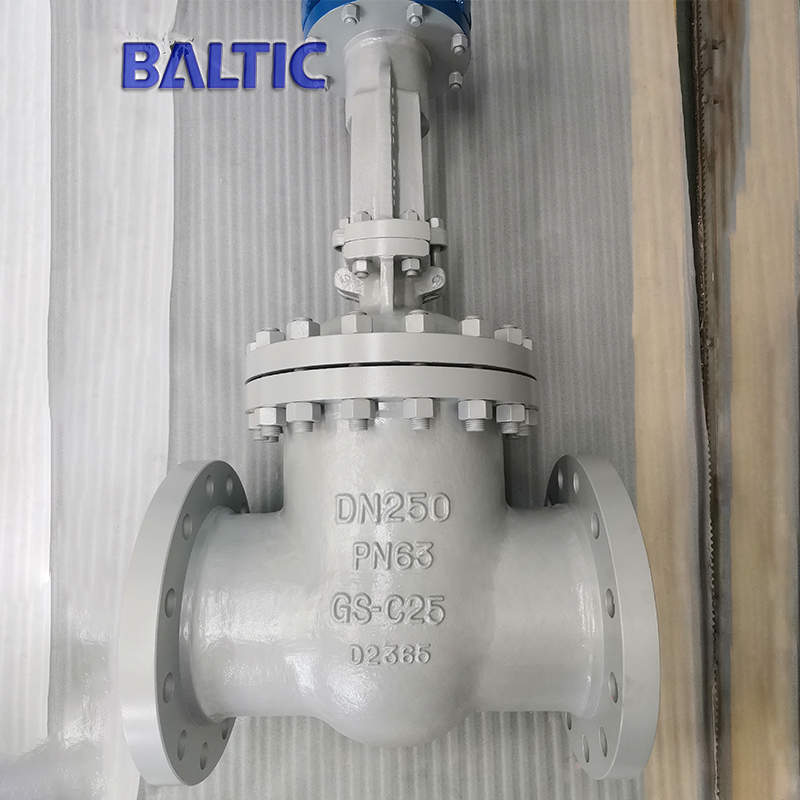

GATE VALVE DN250-PN63:   5 PCS
GATE VALVE DN300-PN63:   5 PCS


BALTIC VALVE CO., LTD
DATED JUNE 1, 2021
