DIN Gate Valves Delivered to Europe (PN40 Series)

  • 05 31, 2021

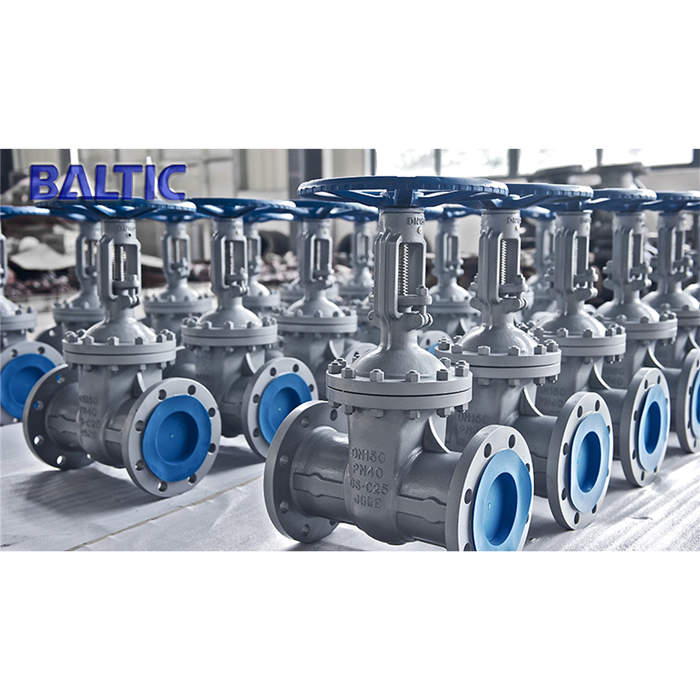

This month we delivered DIN stock gate valves to one of our important clients in Europe. There are total 166pcs valves loaded for two containers of 20 Inches. This is only a small part of DIN valves compared with a large quantity of valves purchased by this customer every year.

These valves have three layers of special coatings: a primer, an intermediate layer and a finish with total dry film thickness at about 100μm. They can be applied to steam pipelines. Our inspectors ran 100% hydraulic test and dimension measurements for these valves.

Product descriptions

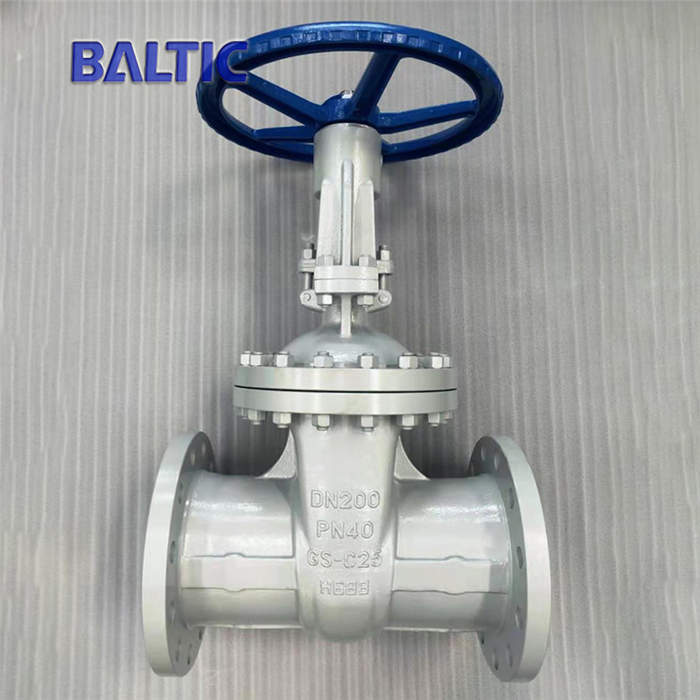

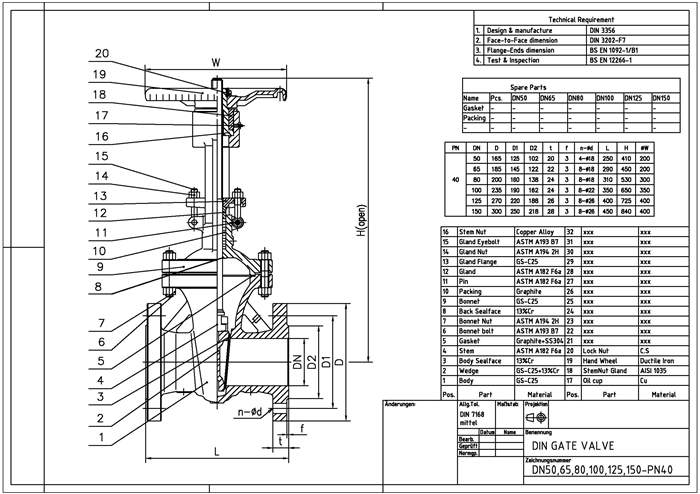

DIN 3356 GATE VALVE
OS&Y, BB, rising stem, flexible wedge, full port
with handwheel or gearbox

Body/bonnet GS-C25
Trim 13%Cr
Flanged according EN 1092-1 type B1 for PN40
Face to face dim. acc. EN558-1 type 26 (DIN 3202 F7)

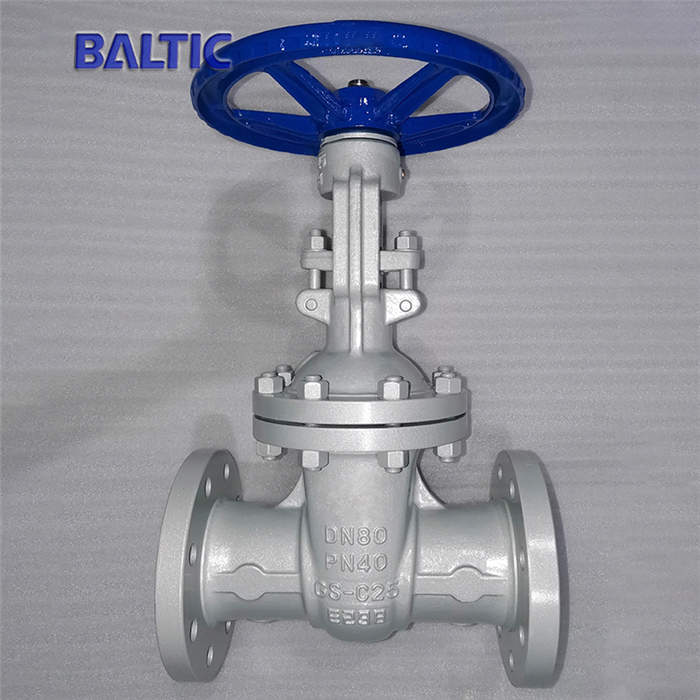

GATE VALVE DN80-PN40:   10 PCS

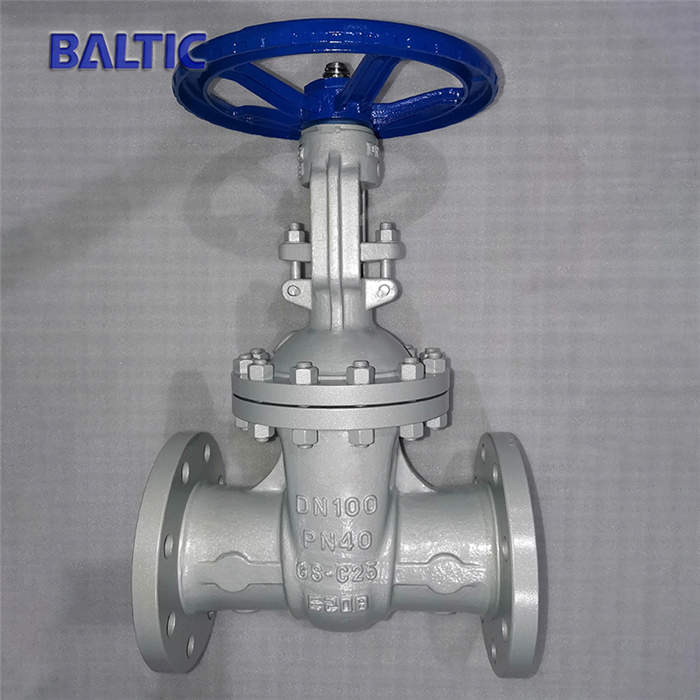

GATE VALVE DN100-PN40:  15 PCS
GATE VALVE DN125-PN40:  10 PCS

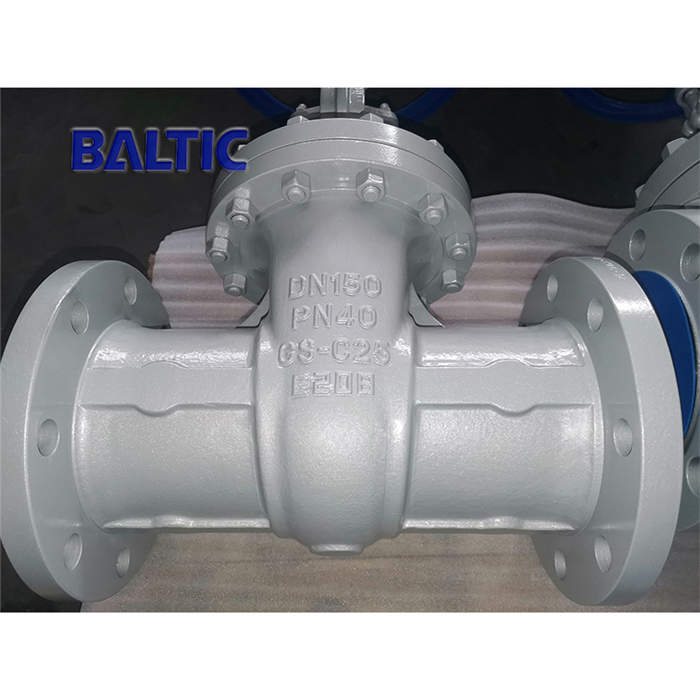

GATE VALVE DN150-PN40:  10 PCS

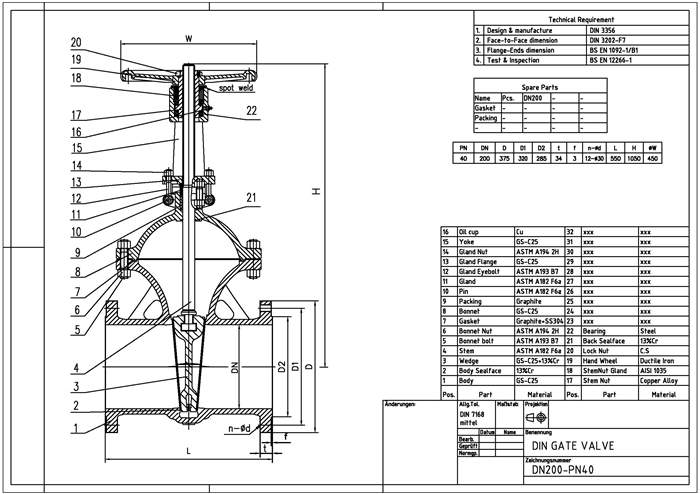

GATE VALVE DN200-PN40:  15 PCS

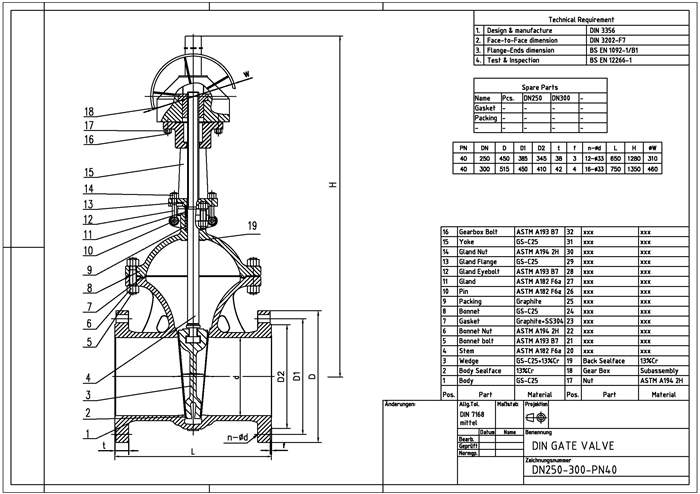

GATE VALVE DN250-PN40:   5 PCS
GATE VALVE DN300-PN40:   3 PCS


BALTIC VALVE CO., LTD
DATED MAY 31, 2021
