• Cryogenic Swing Check Valves for a Low Temperature of -196℃
Cryogenic Swing Check Valves for a Low Temperature of -196℃

Cryogenic Swing Check Valves for a Low Temperature of -196℃

  • 08 06, 2021
We have cryogenic swing check valves with lever and counterweight that can be used at a low temperature of -196℃ (The cryogenic treatment is performed). Pls contact us via email: [email protected] if you are interested.

Product descriptions
Cryogenic Swing Check Valve
Design according to API 6D
Bolted bonnet with eyebolt

with lever and counterweight

Materials
Body & bonnet: ASTM A351 Gr.CF8
Trim: no.12 (316+Hardfaced)

Connection: RF accord to ASME B16.5
Face to Face: ASME B16.10

Item 1)   10” x 150LB
Item 2)   12” x 150LB
Item 3)   18” x 150LB
Item 4)   4” x 300LB

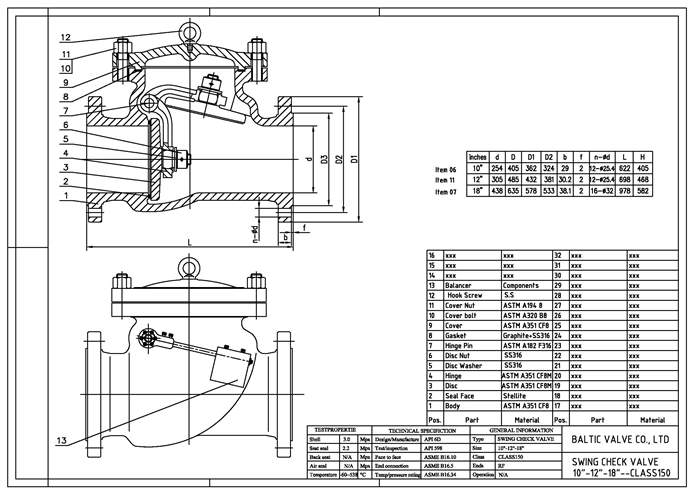

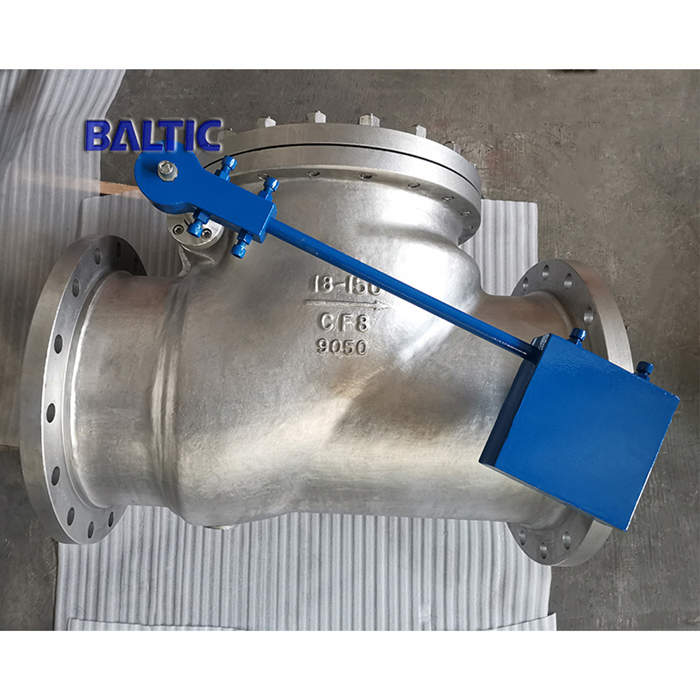

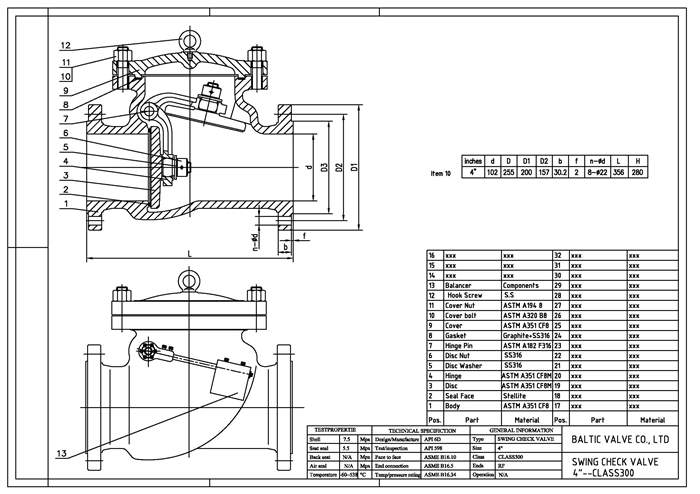

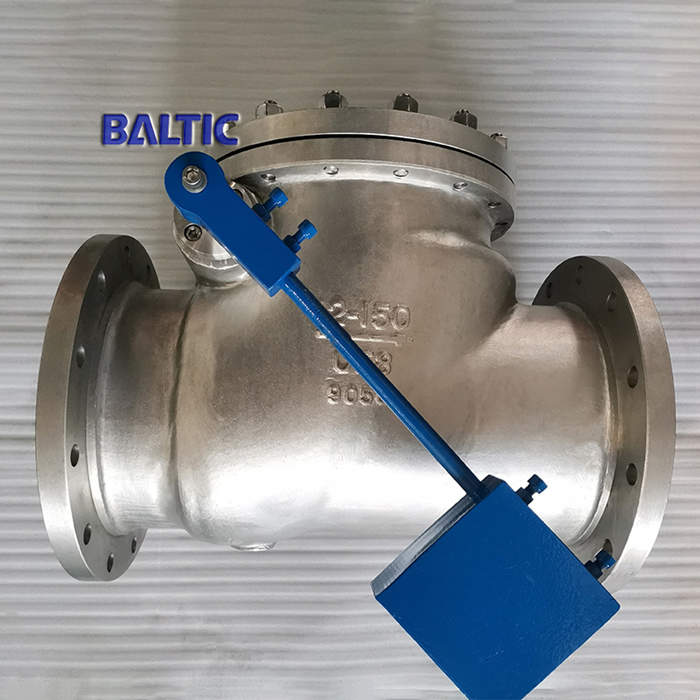

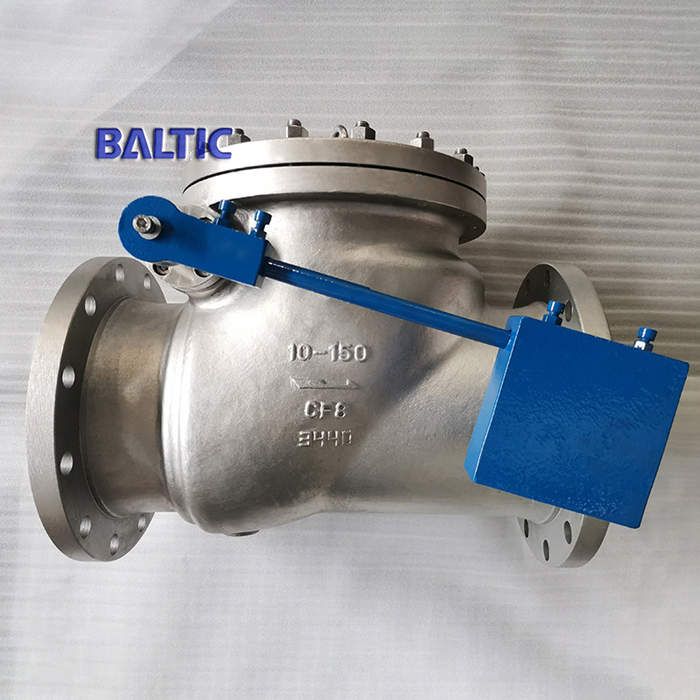

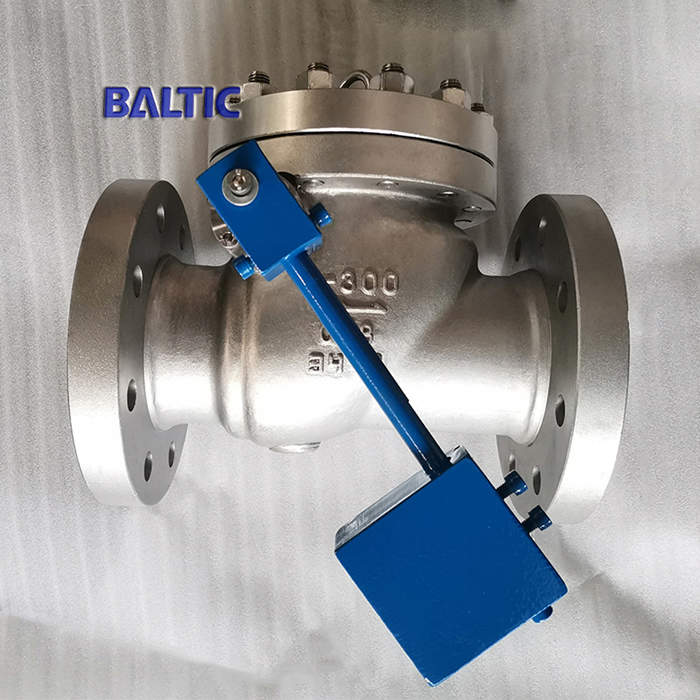

Kindly, please find the attached copy of the drawing and valve pictures.


BALTIC VALVE CO., LTD
DATED August 6, 2021
