ASTM A182 F316 Ball Valve

04 30, 2020

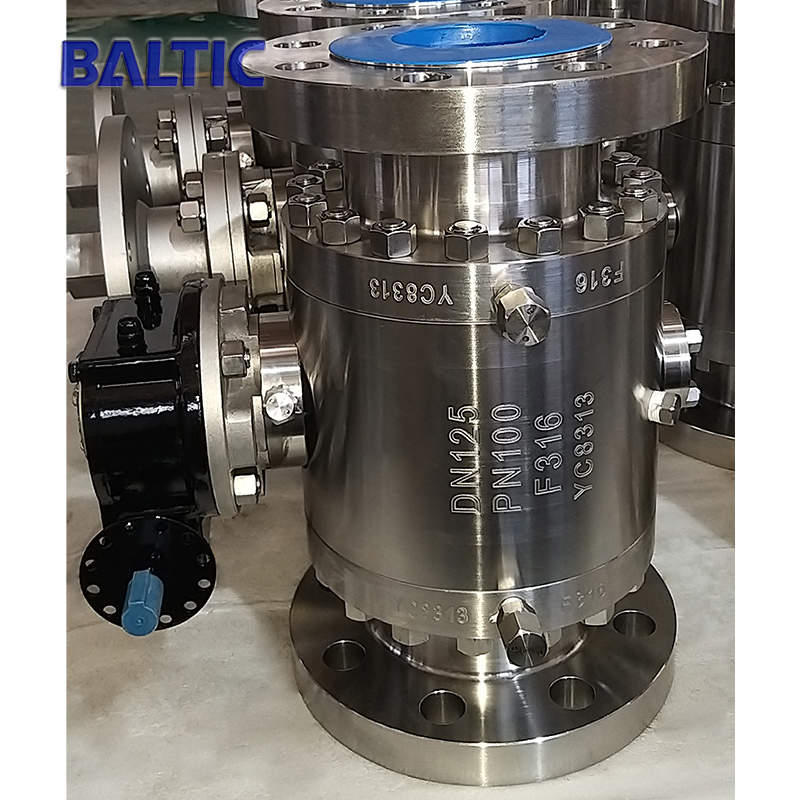

DIN ball valve, stainless steel ASTM A182 F316

We finished and delivered a big qty ball valve to one of our major customers in Vienna, Austria.
Details as follows:

Product description:
DIN Ball valve.
3-piece body, trunnion mounted.
Double shaft seal, full bore.
Anti-blow-out proof shaft, anti-static device.

End connection: EN1092-1/B1 for PN25/PN40.
End connection: EN1092-1/B2 for PN63/PN100.

Body/bonnet: ASTM A182 F316.
Ball: ASTM A182 F316 (solid ball).
Stem ASTM A182 F51.
Seat DEVLON.

Medium: Water, air with oil content.
Design temperature: -20°/+70°C.

item	Size	Class	Face to Face=Length	Operation	Qty
1	DN125	PN100	EN558-1/2=500MM	Gearbox + Locking Device	3
2	DN125	PN100	EN558-1/2=500MM	Bare Stem + Top Flange 5211-F25	3
3	DN100	PN40	EN558-1/1=350MM	Bare Stem + Top Flange 5211-F14	3
4	DN80	PN100	EN558-1/2=380MM	Gearbox + Locking Device	7
5	DN80	PN63	EN558-1/2=380MM	Gearbox + Locking Device	3
6	DN125	PN100	EN558-1/2=500MM	Bare Stem + Top Flange 5211-F16	2
7	DN65	PN100	EN558-1/2=340MM	Bare Stem + Top Flange 5211-F10	2
8	DN80	PN100	EN558-1/2=380MM	Bare Stem + Top Flange 5211-F10	2
9	DN125	PN25	EN558-1/2=400MM	Bare Stem + Top Flange 5211-F14	4

BALTIC VALVE CO., LTD.

DATED APRIL 30TH,2020.
