API 600 Pressure Seal Bonnet Gate Valve, ASTM A217 C12A

  • 01 27, 2021
API 600 pressure seal bonnet gate valve in special material ASTM A217 C12A

Look at our project of the pressure seal bonnet gate valve in special material ASTM A217 C12A with RT level castings. Are you interested in such products? Pls feel free to email us at [email protected].

Product description:
GATE VALVE, bare stem + ISO top flange for mounting the electric actuator
OS&Y, Pressure Seal Bonnet, Rising Stem, full port
Flexible Wedge

Body/bonnet: ASTM A217 C12A
Trim: 5#
Stem: ASTM A182 F91
Wedge: ASTM A217 C12A + stellite
Body Seat: A182 F91 + stellite

Valve Design: ASME B16.34
End Connection: Butt Welded Ends as per ASME B16.25, SCH 80
Face to Face: ASME B16.10

Item 1) 16 Inch x 1500 LB   L=1194 MM

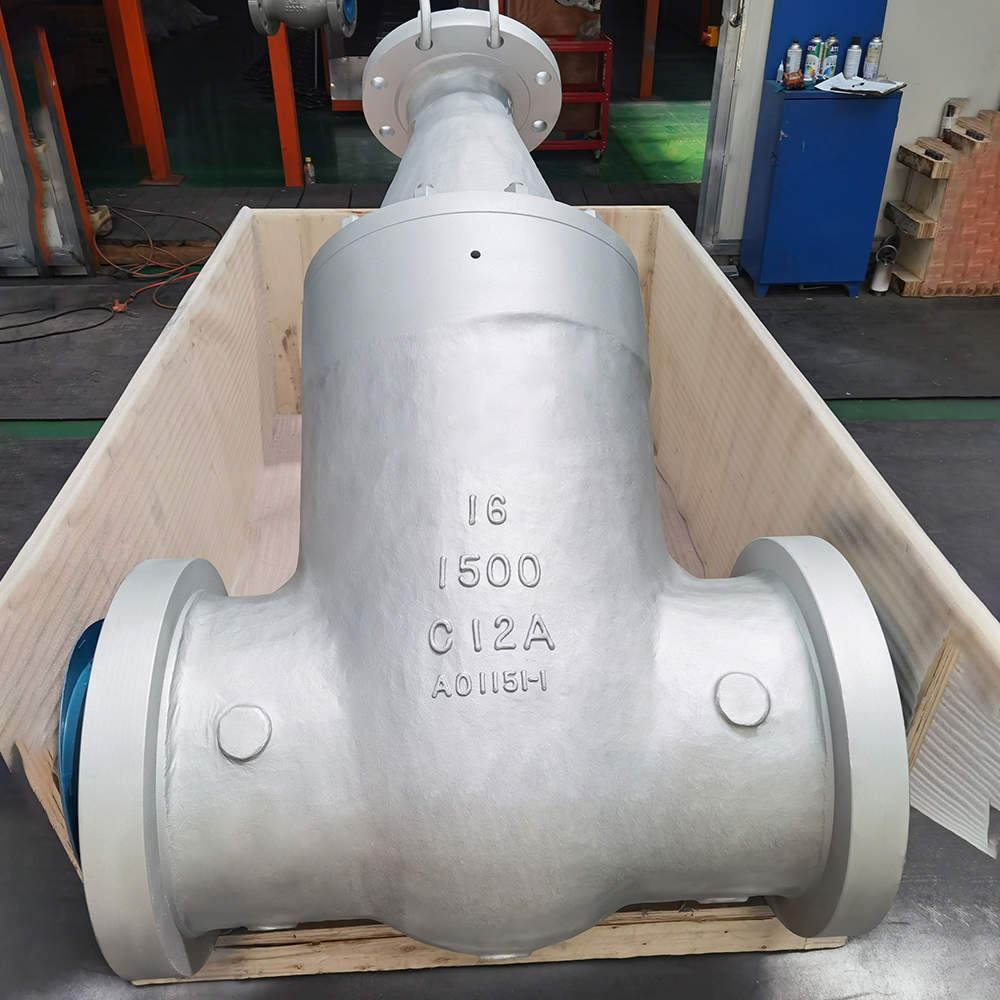

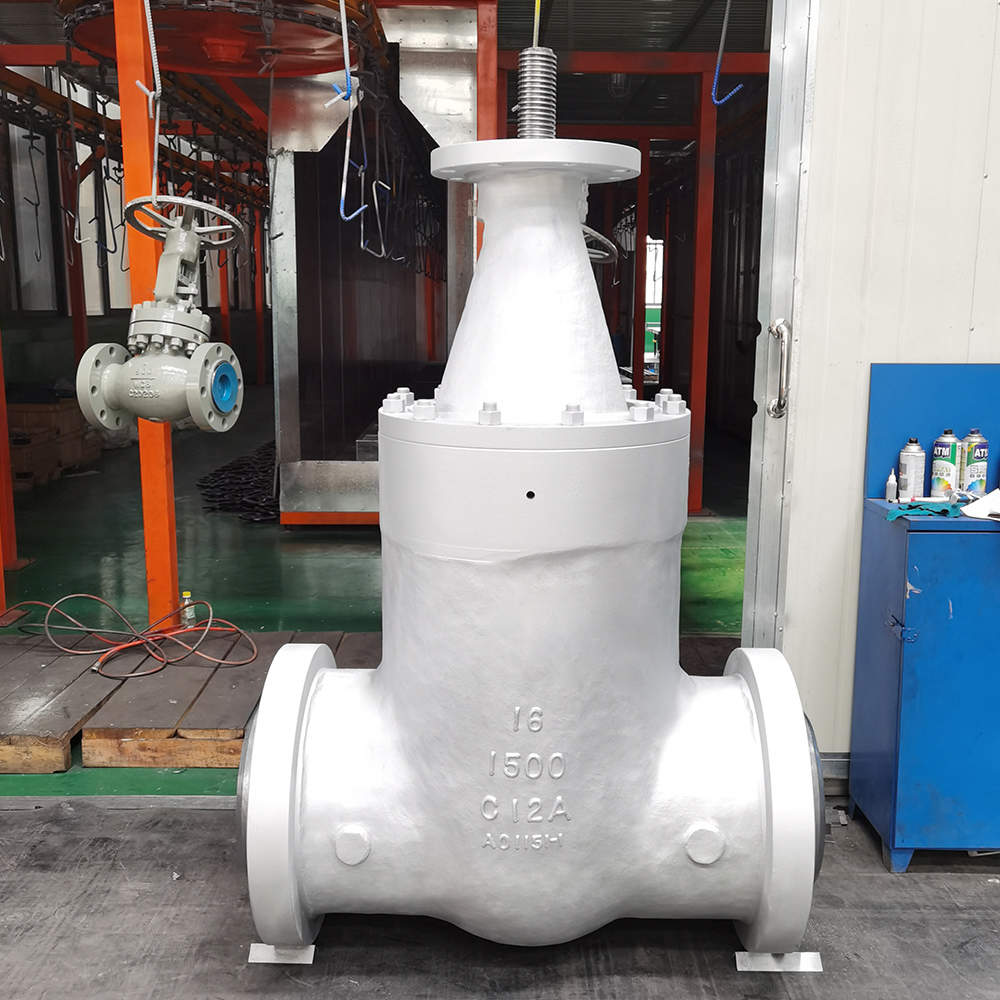

Please kindly find attached the copy of GA drawing and valve pictures.

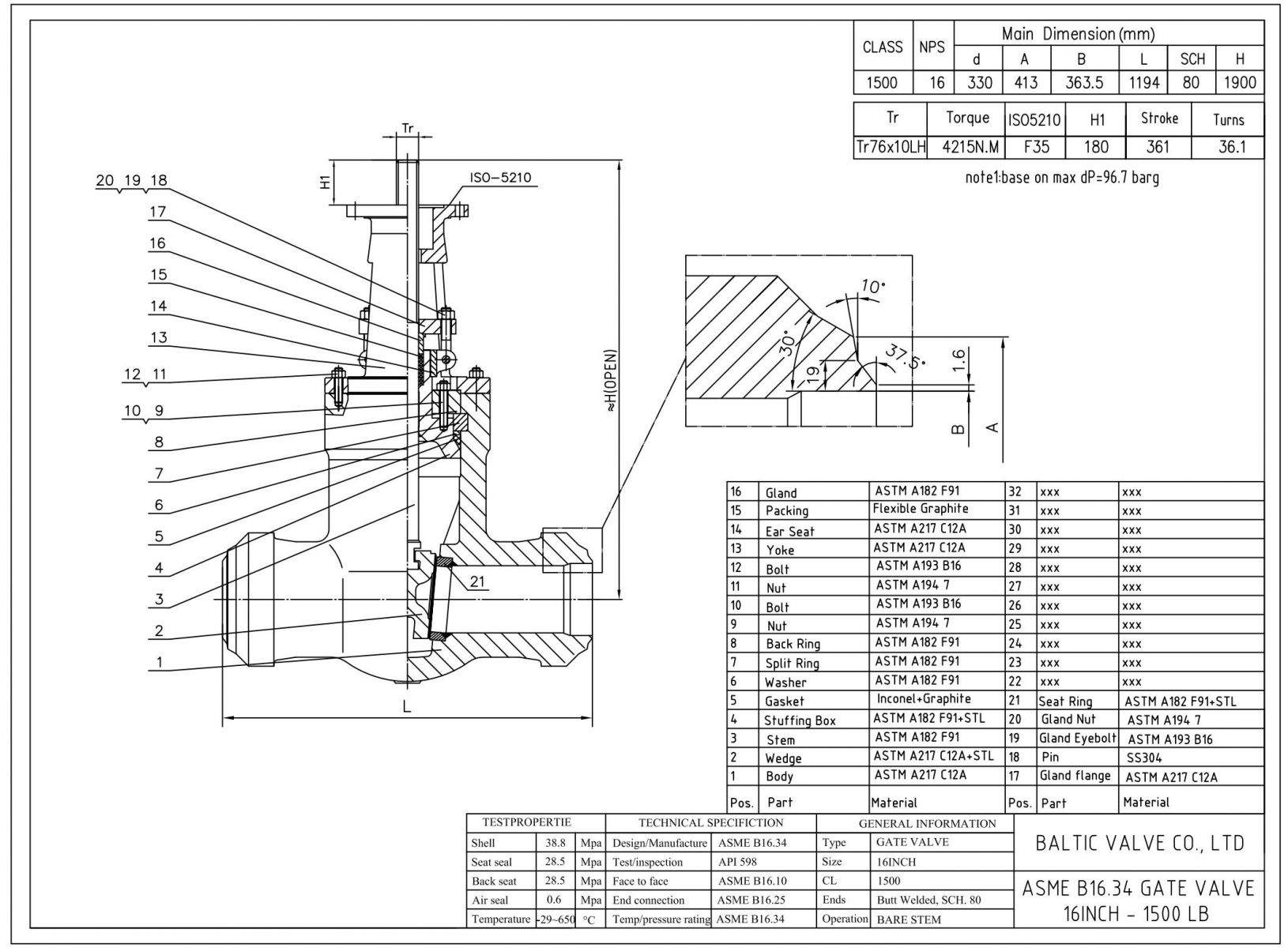

The Drawing

BALTIC VALVE CO., LTD.
DATED JAN. 27TH, 2021
