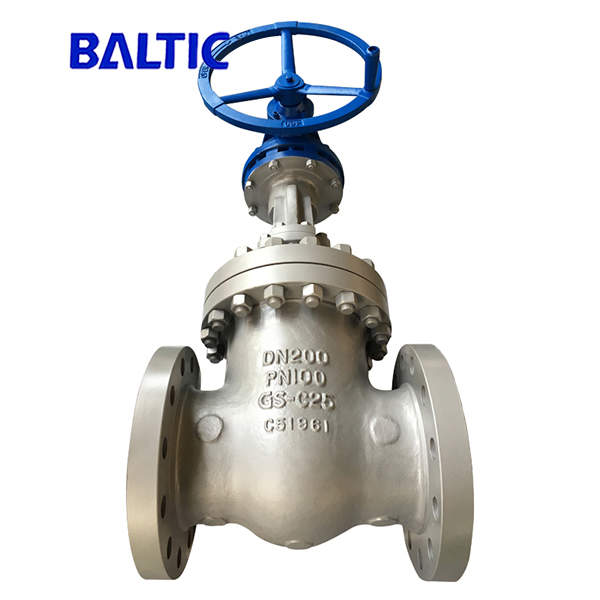

• GS-C25 Flanged Gate Valve with Bevel Gear, DN200, PN100, EN 1984

GS-C25 Flanged Gate Valve with Bevel Gear, DN200, PN100, EN 1984

GS-C25 Flanged Gate Valve with Bevel Gear, DN200, PN100, EN 1984

GS-C25 Flanged Gate Valve with Bevel Gear, DN200, PN100, EN 1984

Key Specifications / Features

Model No.: Hits: 85

GS-C25 Flanged Gate Valve Manufacturer in China: GS-C25 Flanged Gate Valve with Bevel Gear, DN200, PN100, EN 1984, DIN 3352, FF: EN 558-1/line 26.
Request a quote Share

Next: WCB Flexible Wedge Gate Valve with Flanged End, DN350, PN10

Previous: DIN Wedge Gate Valve with Gearbox, GS-C25, DN150, PN100, Flanged

Detail Information

Product name: Gate valve with bevel gear.
Design: EN 1984, DIN 3352.
Material: GS-C25.
Nominal size: DN200.
Nominal pressure: PN100.
End connection: Flanged.
Face to face: EN 558-1/line 26.
Test and inspection: EN 12266-1.

Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2 - 60 Inch (DN50 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -196℃ - +573℃.
