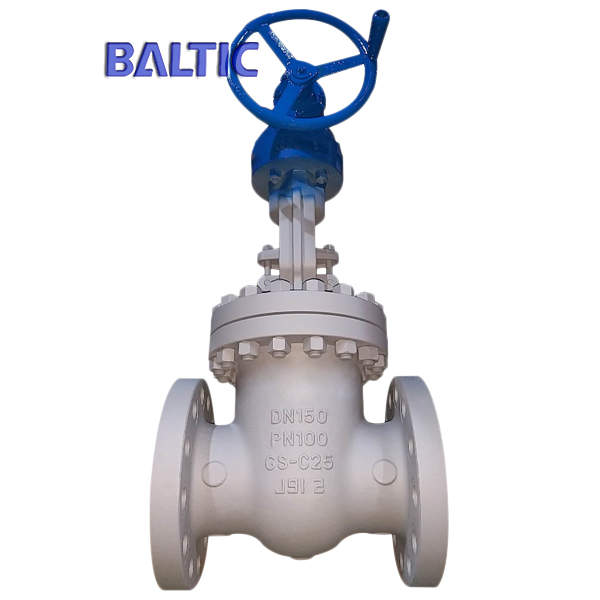

• DIN Wedge Gate Valve with Gearbox, GS-C25, DN150, PN100, Flanged

DIN Wedge Gate Valve with Gearbox, GS-C25, DN150, PN100, Flanged

DIN Wedge Gate Valve with Gearbox, GS-C25, DN150, PN100, Flanged

DIN Wedge Gate Valve with Gearbox, GS-C25, DN150, PN100, Flanged

Key Specifications / Features

Model No.: Hits: 98

DIN Wedge Gate Valve Manufacturer in China: DIN Wedge Gate Valve with Gearbox, GS-C25, DN150, PN100, Flanged Ends, EN 1984, DIN 3352, FF EN 558-1/line 26.
Request a quote Share

Next: GS-C25 Flanged Gate Valve with Bevel Gear, DN200, PN100, EN 1984

Previous: EN 1.4308 Wedge Gate Valve, DN300, PN63, Flanged, DIN 3352, EN 1984

Detail Information

Product name: Gate valve with gearbox.
Design: EN 1984, DIN 3352.
Material: GS-C25.
Nominal size: DN150.
Nominal pressure: PN100.
Connection ends: Flanged.
Face to face: EN 558-1/line 26.
Test and inspection: EN 12266-1.

Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2 - 60 Inch (DN50 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -196℃ - +573℃.
