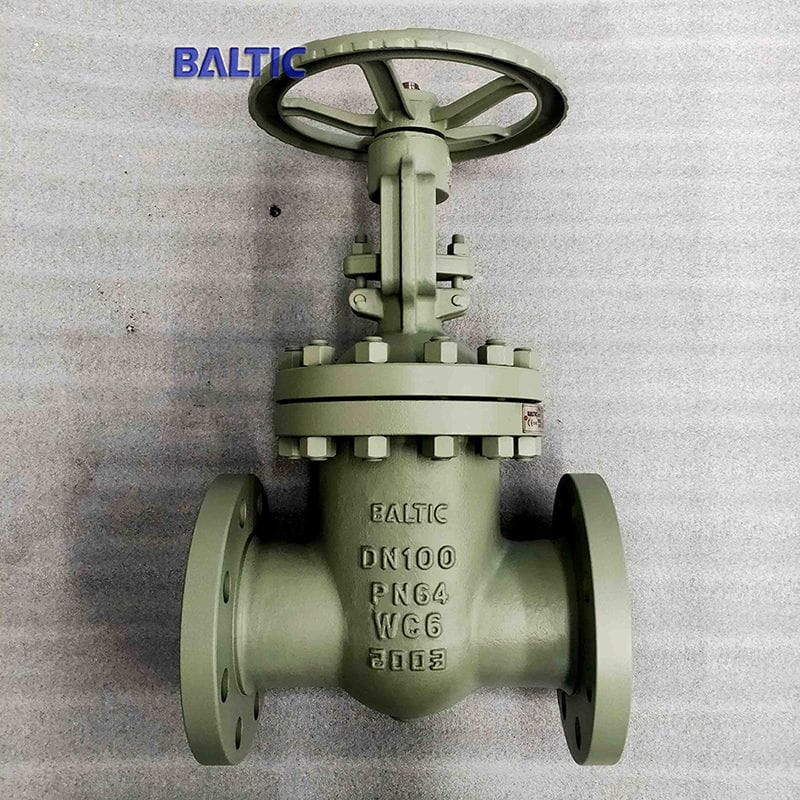

Explore our top-quality ASTM A217 WC6 gate valves crafted by skilled fabricators. Our gate valves feature a flexible wedge design and measure 4 inches (DN100) in size. With a Class 400 LB and PN64 rating, these valves ensure reliable performance. The metal sealing, conforming to API 600, guarantees excellent sealing efficiency. Compliant with ASME B16.34, EN 1984, and DIN 3352 standards, these gate valves are a perfect choice for diverse industrial applications.

Tags:

• EN 1984 Gate Valve
• DIN 3352 Gate Valve
• DN100 Gate Valve
• PN64 Gate Valve
• 4 Inch Gate Valve
• Class 400 LB Gate Valve
• Flexible Wedge Gate Valve
• RF Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve.
Design: EN 1984, DIN 3352
Material: ASTM A217 WC6.
Nominal Size: DN100
Nominal Pressure: PN64
Connection Ends: RF X RF, as per EN 1092-1/B2
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem + ISO TOP flange
Test and Inspection: EN 12266-1.

Other features
Bolted bonnet
Pressure seal bonnet
Flexible wedge
Full bore

For pressure seal bonnet type:
Bonnet gasket
Metal sealing
RTJ ring - SS 304
Long service
Threaded stem
Keep clear of the medium
Avoid corrosion

Technical Parameters and Characteristics
Product type: Gate valve.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Material: ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500, CN3MN, CK3MCUN, CN7M, ASTM A217 C5, ASTM A217 C12A, ASTM A351 CF3M, ASTM A351 CF8C
Design temp.: -196℃  -  573℃.
Operation: Hand wheel, gearbox, electric
Connection end: ASME B16.5, ASME B16.25, EN1092 series.
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
