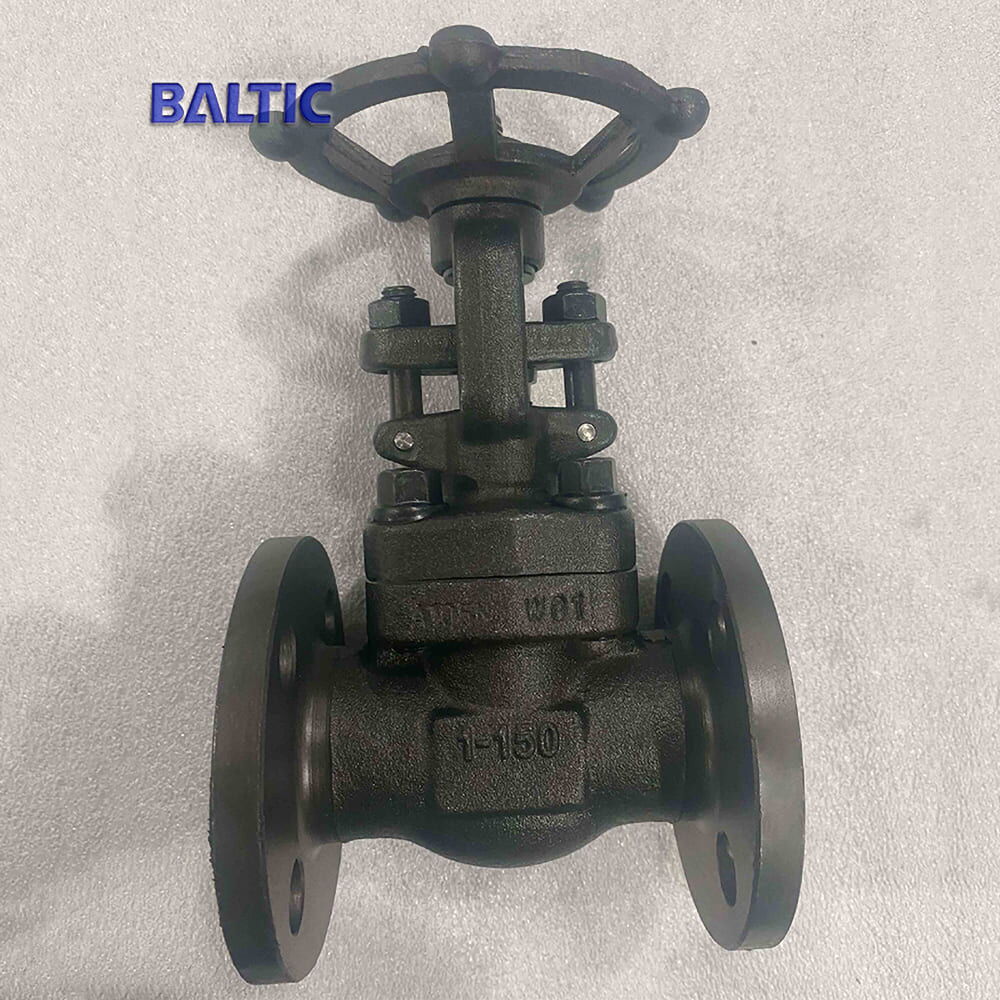

ASTM A105N Gate Valve, API 602, 1 IN, CL150, Integral Flange

As a leading factory specializing in carbon steel gate valves, we manufacture high-performance solutions built to API 602 standards. Our 1-inch (DN25) gate valve features a robust ASTM A105N body, ensuring exceptional strength and durability. Rated for Class 150 LB (PN20), it is designed for reliable operation in various industrial applications. The integral flange connection provides secure and leak-free installation. Each valve undergoes stringent API 598 testing and inspection to guarantee superior quality and performance, making it a dependable choice for demanding flow control requirements.

Tags:

• ASTM A105N Gate Valve
• API 602 Gate Valve
• 1 Inch Gate Valve
• Class 150 LB Gate Valve
• Integral Flanged Gate Valve

API 602 Gate Valves, Carbon Steel ASTM A105N, Flanged Ends.

Valve Description:
Product Name: Small Size Gate Valve, Integral Flange.
Design Standard: API 602
Body Material: ASTM A105N
Nominal Size: 1 Inch, DN25
Nominal Class: Class 150 LB, PN20
End Connection: Flange Ends
Face to Face: ASME B16.10
Test and Inspection: API 598


Technical Parameters And Characteristics
