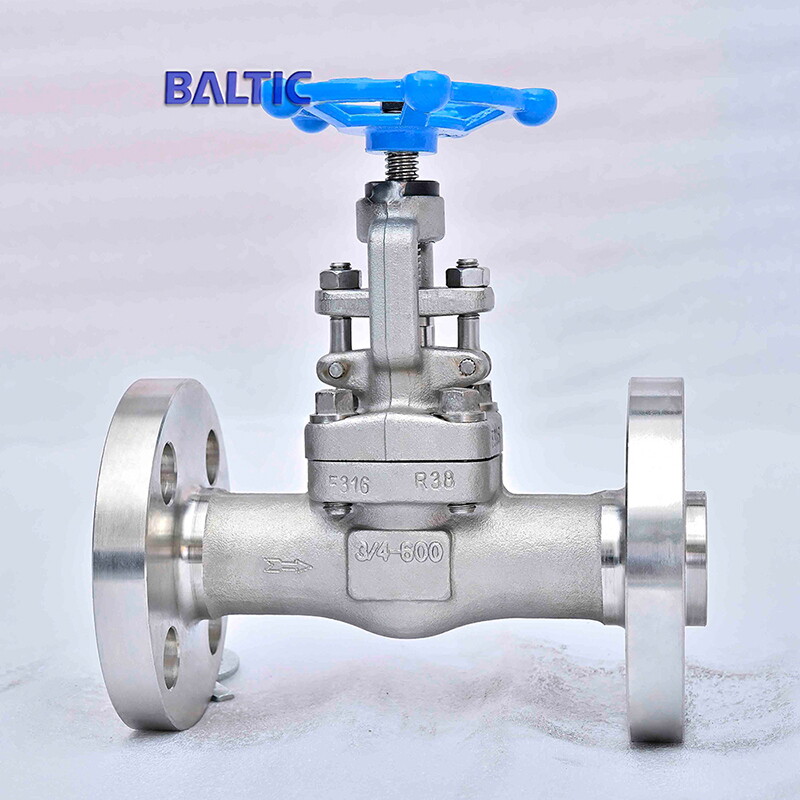

• 3/4 Inch Globe Valve, 600 LB, API 602, ASTM A182 F316, RF

3/4 Inch Globe Valve, 600 LB, API 602, ASTM A182 F316, RF

3/4 Inch Globe Valve, 600 LB, API 602, ASTM A182 F316, RF

3/4 Inch Globe Valve, 600 LB, API 602, ASTM A182 F316, RF

Key Specifications / Features

Model No.: Hits: 7

Discover high-quality 3/4-inch globe Valves crafted at our factory. These valves are designed to meet stringent standards including DN20, Class 600 LB, PN100, API 602, ASTM A182 F316, and feature RF Flanged Ends. Available in sizes ranging from 1/4 to 4 inches and suitable for Class 150 to 4500 LB applications.
Request a quote Share

Next: 1 Inch Globe Valve, CL 600 LB, ASTM A182 F316, API 602, RF

Previous: API 602 Globe Valve, 1/2 Inch, 600 LB, ASTM A182 F316, RF

Detail Information

Valve description:
Name: Small size globe valve, with integral flange.
Design: API 602.
Body: ASTM A182 F316.
Nominal size: 3/4 Inch.
Nominal class: 600 LB.
End connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small-size globe valve
Nominal diameter 1/4 - 4 Inch
Design temp. -196℃ - 573℃
Design pressure Class 150 - 4500  LB
Material Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end NPT, SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application Power station, petroleum, chemical engineering
Function 1 bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 plug disc, needle disc
Function 3 full bore, reduced bore
Function 4 Integral flanged ends、welded on flanged ends
