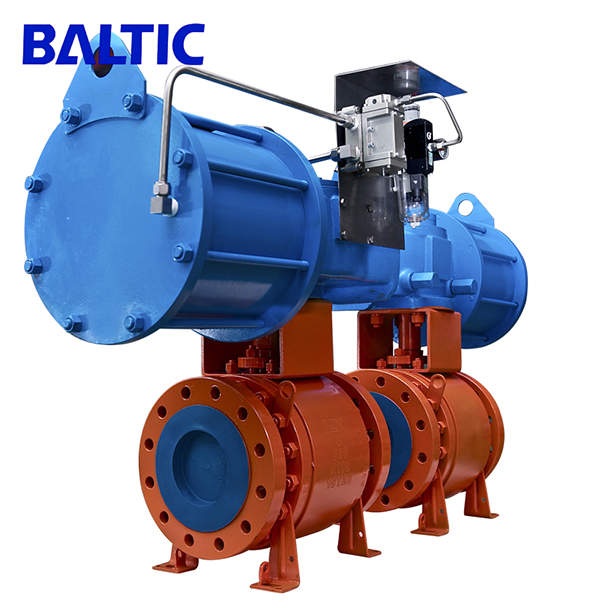

Soft Seated Trunnion Ball Valve, A105, 6 Inch, Class 300, Pneumatic
Key Specifications / Features
Model No.:
Hits: 112
Soft Seated Trunnion Ball Valve Manufacturer in China: Soft Seated Trunnion Ball Valve, ASTM A105, 6 Inch, Class 300 LB, Pneumatic Actuator, RF, API 6D.
Tags:
Detail Information
Quick Detail:
Soft seated ball valve with pneumatic actuator.
Design: API 6D.
Body: ASTM A105.
Nominal size: 6 Inch.
Nominal class: 300 LB.
End Connection: RF flange.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 60 Inch (DN15 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -46℃ - +200℃.
