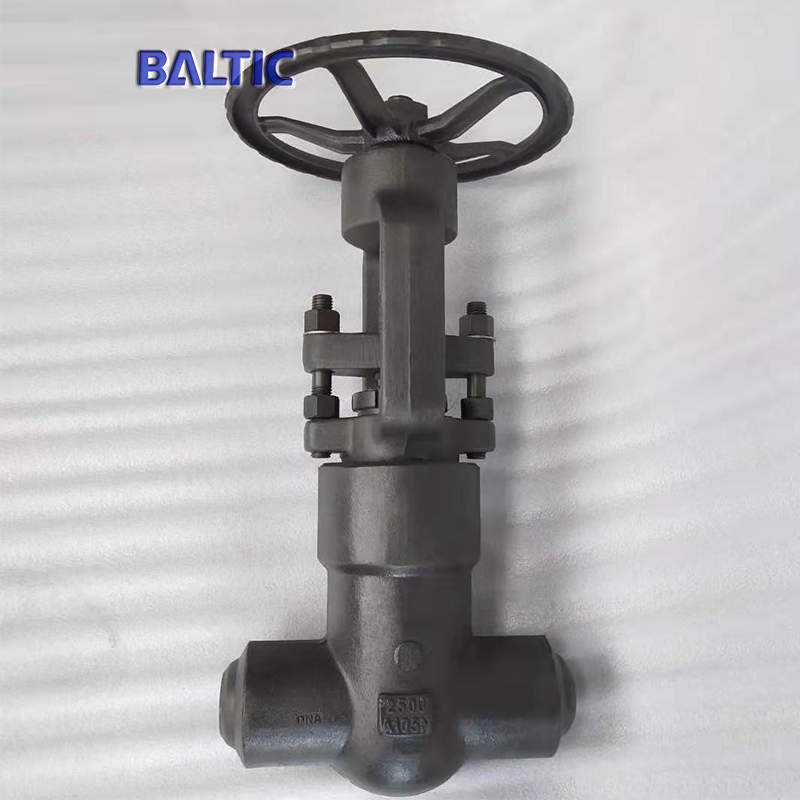

PSB Gate Valve, ASTM A105N, 2IN, CL2500, API 602, BW
Key Specifications / Features
Model No.: Hits: 87
PSB Gate Valve Maker: Forge Steel Pressure Seal Bonnet Gate Valves, ASTM A105N, 2 Inch, Class 2500 LB, API 602, BW Ends, API 598.
Request a quote
Share
Tags:
Detail Information
Valve Description
Name: Small Size Gate Valve with Pressure Seal Bonnet
Design: API 602
Body: ASTM A105N
Nominal Size: 2 Inch
Nominal Class: Class 2500 LB
End Connection: BW Ends
Face to Face: Manufacture Standard
Test and Inspection: API 598
Technical Parameters and Characteristics
Product: Small Size Gate Valve
Nominal Diameter: 1/4 Inch - 4 Inch
Design Temp.: -196℃ - 573℃
Design Pressure: Class 150 LB - Class 4500 LB
Material: Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard: API 602, BS 5352
Face to Face: Manufacture Standard, ASME B16.10
Connection End: NPT, SW, BW, Flanged
Test Standard: API 598, ISO 5208
Operation: Handwheel, Electric
Application: Power Station, Petroleum, Chemical Engineering
Function 1: Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet
Function 2: Solid Wedge
Function 3: Full Bore, Reduced Bore
Function 4: Integral Flanged Ends, Welded on Flanged Ends
Name: Small Size Gate Valve with Pressure Seal Bonnet
Design: API 602
Body: ASTM A105N
Nominal Size: 2 Inch
Nominal Class: Class 2500 LB
End Connection: BW Ends
Face to Face: Manufacture Standard
Test and Inspection: API 598
Technical Parameters and Characteristics
Product: Small Size Gate Valve
Nominal Diameter: 1/4 Inch - 4 Inch
Design Temp.: -196℃ - 573℃
Design Pressure: Class 150 LB - Class 4500 LB
Material: Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard: API 602, BS 5352
Face to Face: Manufacture Standard, ASME B16.10
Connection End: NPT, SW, BW, Flanged
Test Standard: API 598, ISO 5208
Operation: Handwheel, Electric
Application: Power Station, Petroleum, Chemical Engineering
Function 1: Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet
Function 2: Solid Wedge
Function 3: Full Bore, Reduced Bore
Function 4: Integral Flanged Ends, Welded on Flanged Ends
