We finished manufacturing some stainless steel ball valves for one of our European clients, the details are as follows:

Product descriptions
Ball valve, bare stem + top flange ISO 5210 F16, torque value 1100 MM
With Diffusor mounted on the bonnet side (outlet), Material AISI 316
Trunnion mounted, 3-pc body, side entry, full bore
Double shaft seal, venting and drain plug
Anti blow-out proof shaft
Fire Safe design: API 607
Anti static device

Valve design: as per API 6D
Ends connection: flange ends as per AMSE B16.5 - RF facing
Face to face dimension: as per ASME B16.10
Testing & Inspection: ISO 5208 grade A

Medium: air
Working pressure: 40 bar

Body, bonnet: ASTM A182 F316
Ball: ASTM A182 F316 (solid ball)
Stem: ASTM A182 F51
Seat Ring: ASTM A182 F316
Seat insert: DEVLON

Item 1)    8 inch - 300LB  L= 502MM

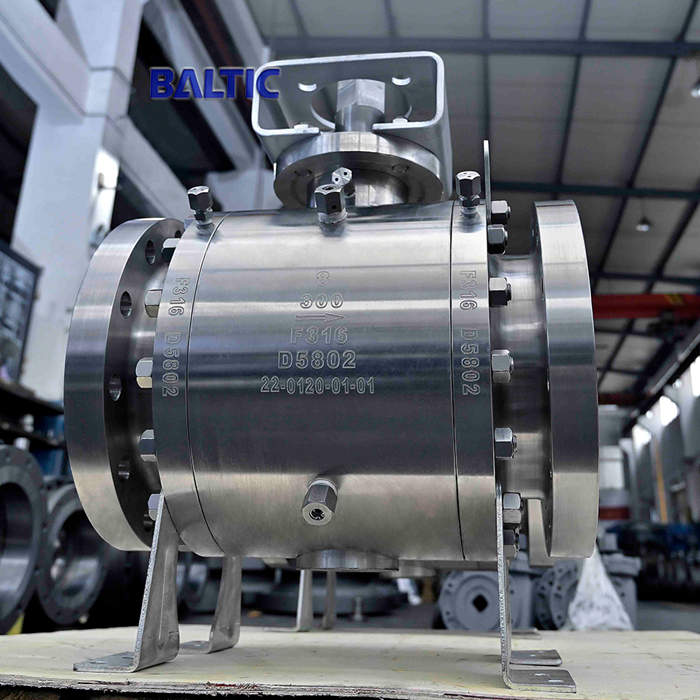

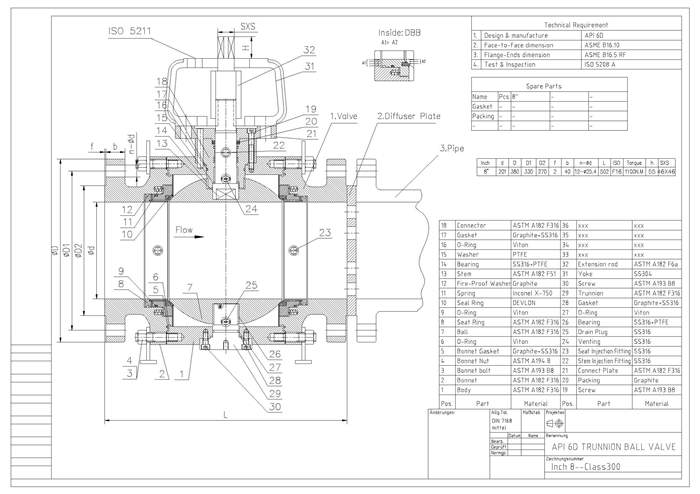

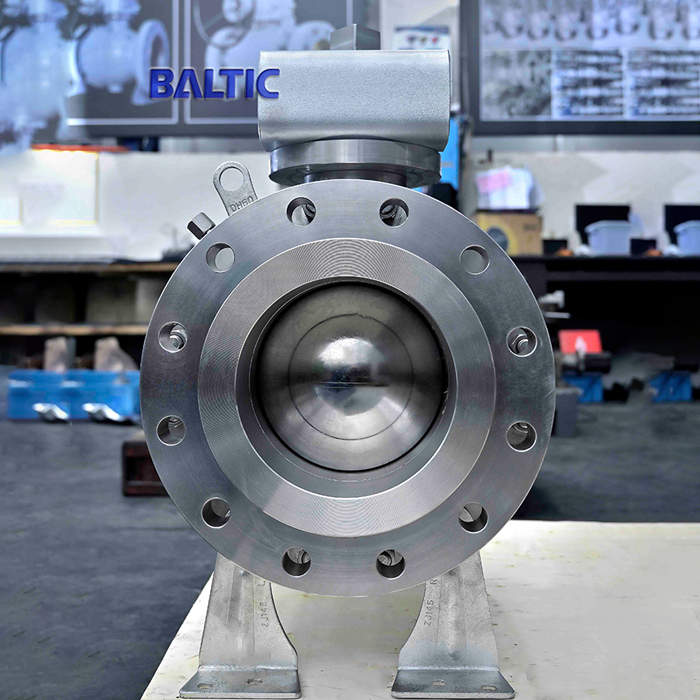

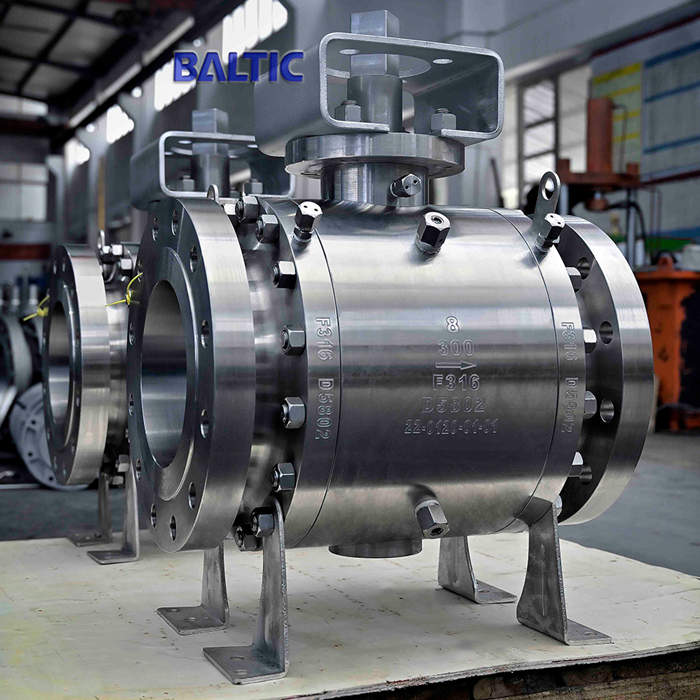

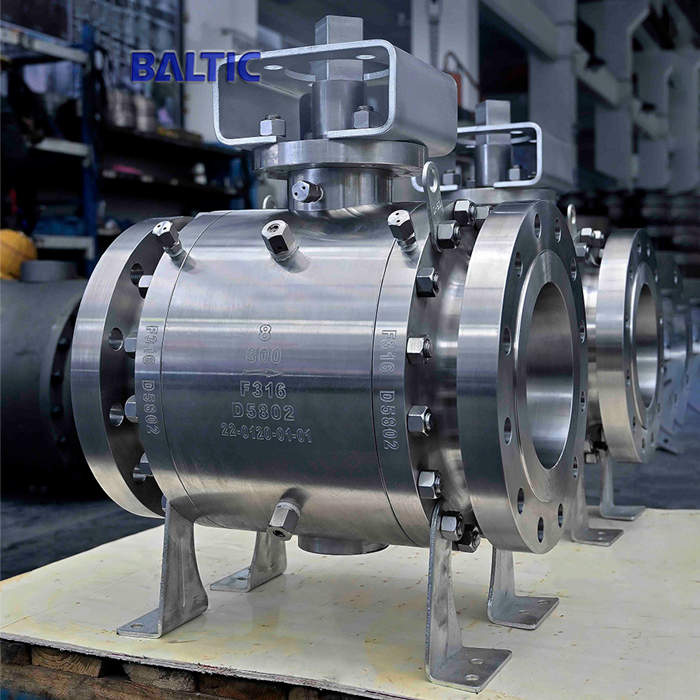

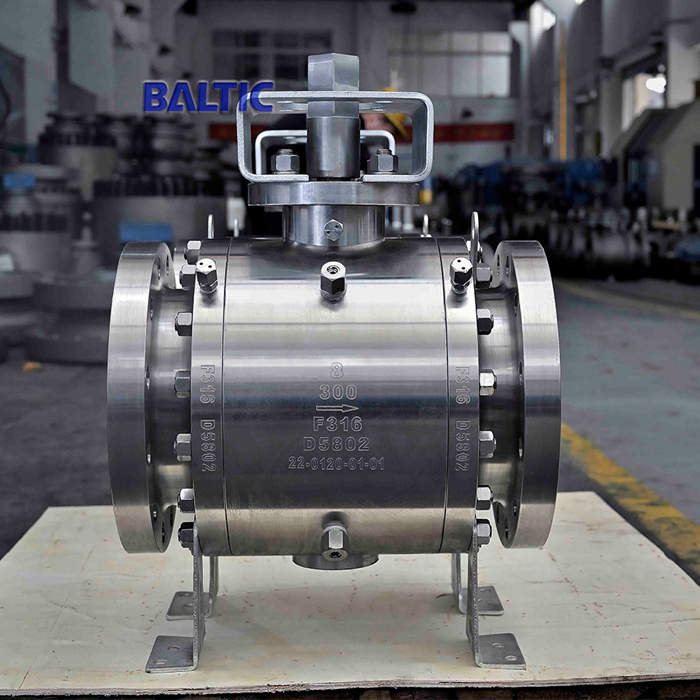

Kindly, please find the attached GA drawing and valve pictures

BALTIC VALVE CO., LTD
DATED April 14, 2022
