Special Gate Valves, ASTM A351 CF3A, ASTM A217 WC6

  • 12 15, 2020
We produced some special gate valves to one of clients in Vienna, Austria.

Product description:
API 600 GATE VALVE with hand wheel operated.
OS&Y, BB, rising stem,
Flexible wedge, full port.

End connection: ASME B16.5.
Face to face dimension: ASME B16.10.

Body/bonnet/wedge: ASTM A351 CF3A.
Stem/internal parts: AISI 304L.
Seats: Full stellite.

Item 1)  2qty  3 Inch x 600 LB  L=356 mm.
======================================

EN 1984 GATE VALVE with gearbox and hand wheel.
OS&Y, BB, rising stem,
Solid wedge, full port.

End connection: EN 1092-1/B2-PN100.
Face to face dimension: EN 558-1/row 26.

Body/bonnet/wedge: 1.7357 (ASTM A217 WC6).
Trim: No. 5# - full stellite.

Item 2)  3qty  DN200 x PN100  L=550 mm.

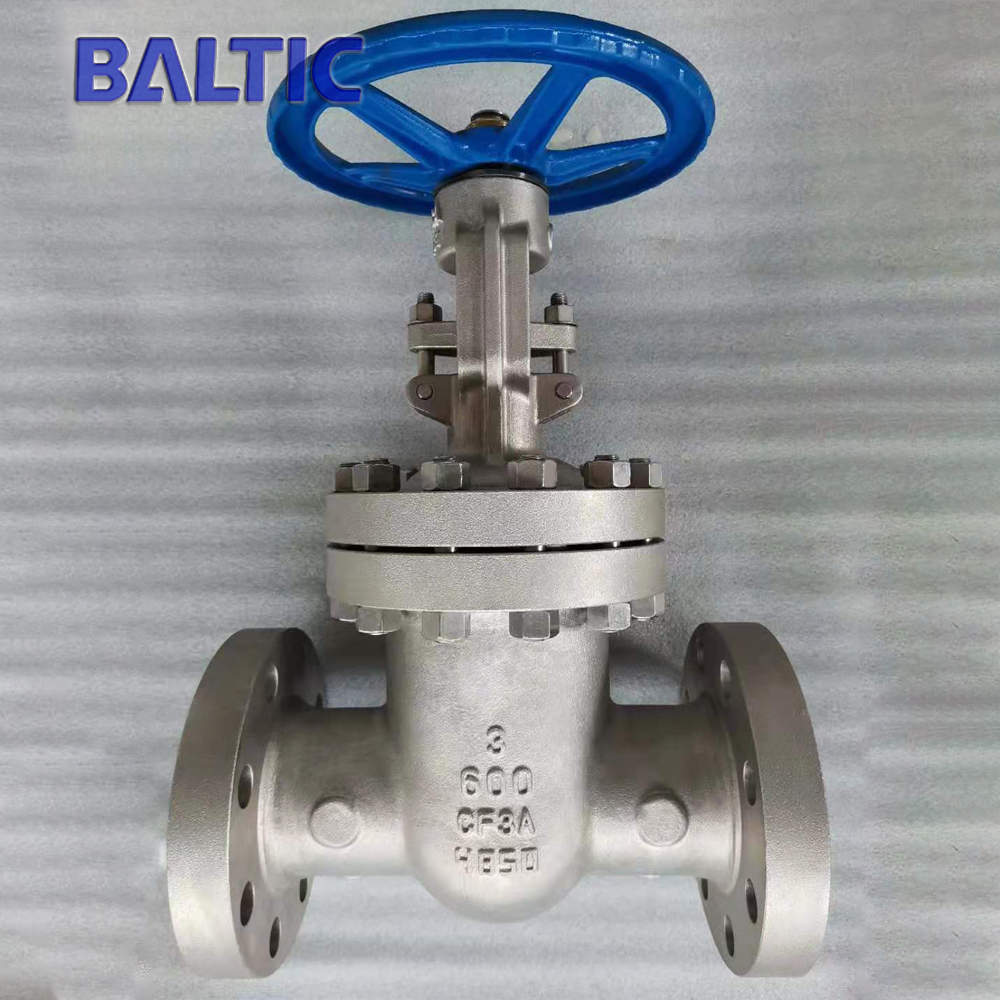

Item 1

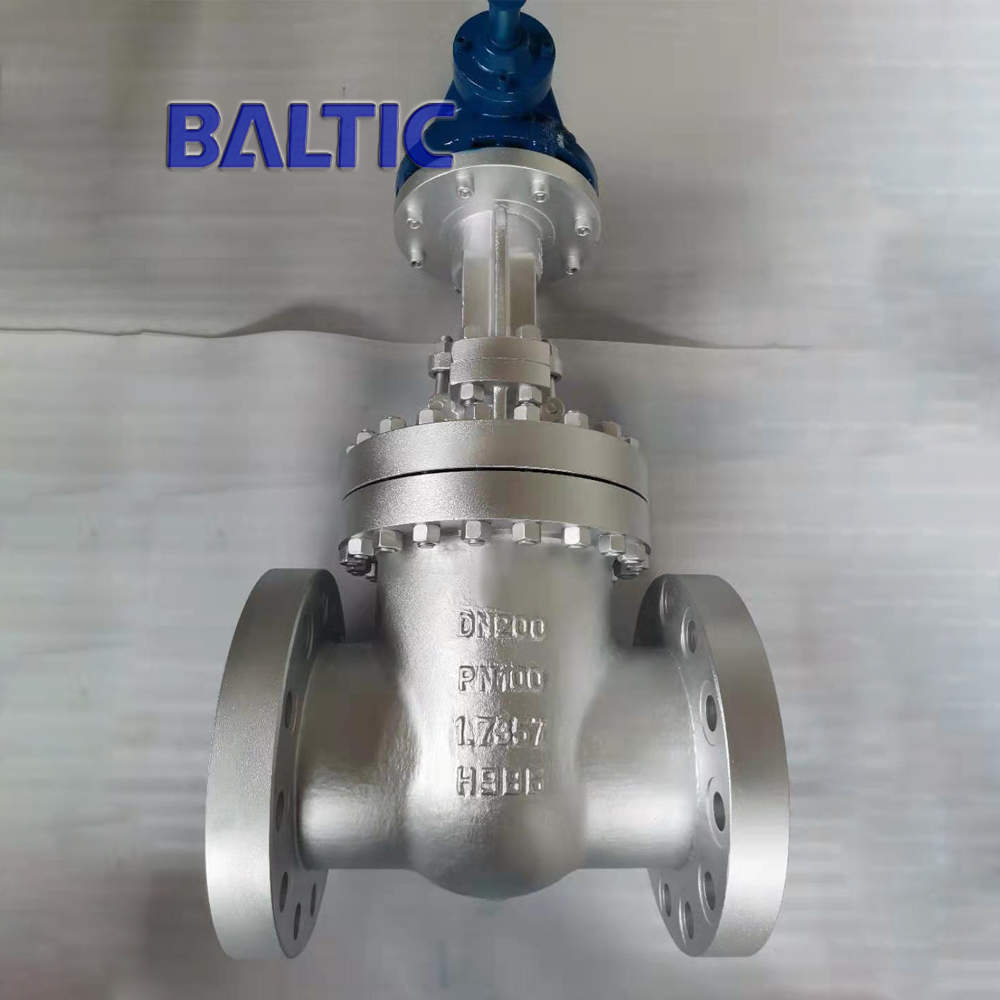

Item 2

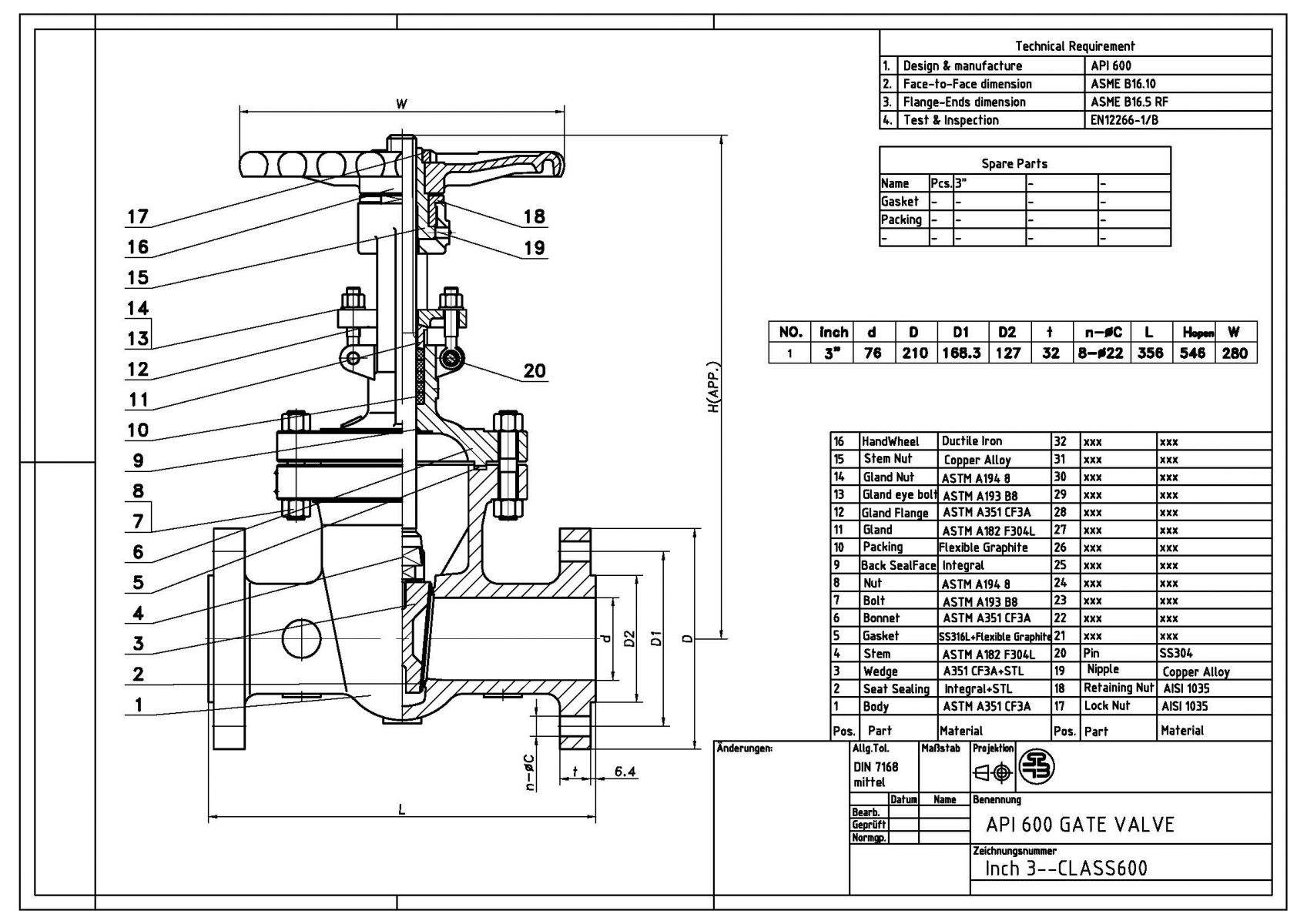

The Drawing of Item 1

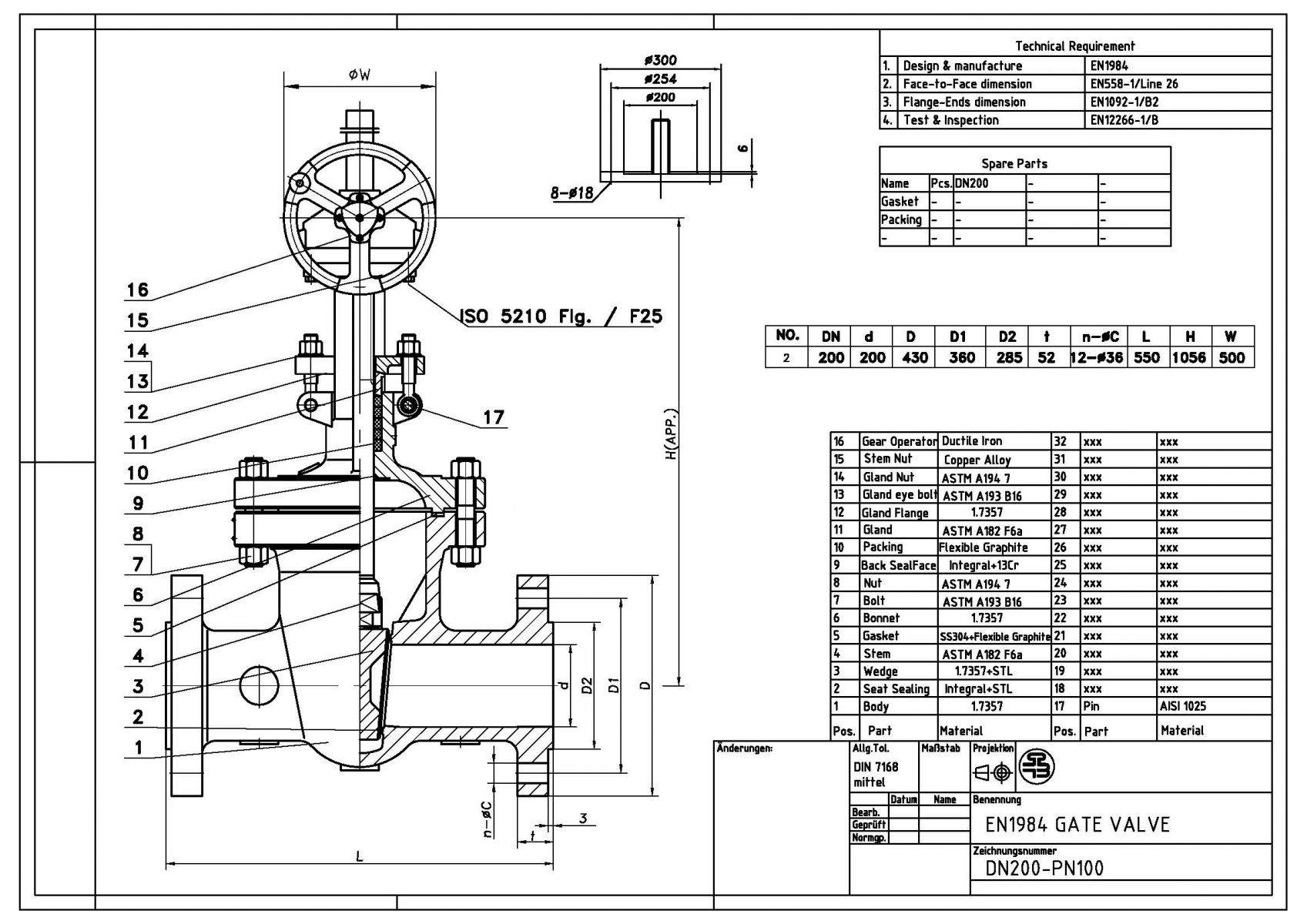

The Drawing of Item 2

BALTIC VALVE CO., LTD.
DATED DEC 15th, 2020.
