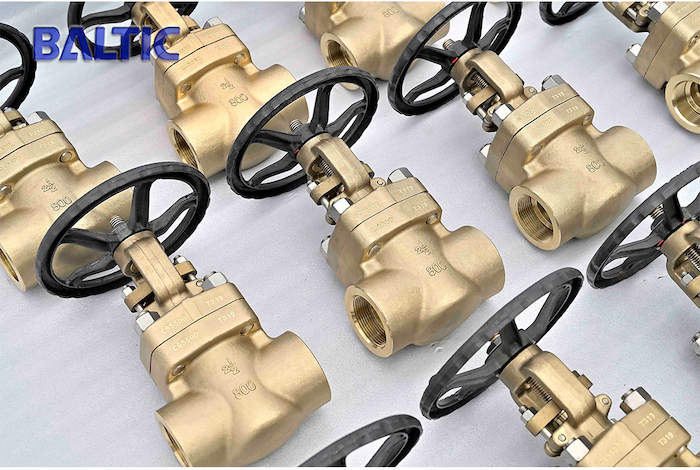

We just got a new project from one of our American clients and the valves we supplied are high-pressure aluminum bronze valves with big sizes for sea water.
Descriptions
API 602 Gate Valve with hand wheel (Epoxy Coating, blue color)
OS&Y, BB, Rising Stem
Solid Wedge, Reduce Bore
with Back Seat
Ends Connection: F.NPT ends (female threaded) as per ASME B1.20.1
Face to Face Dimension: as per manufacture standard
Testing & Inspection: as per API 598
***Body/Internals: ASTM B763 C95500
***bolt/nut: ASTM A193 B8M/ A194 8M
Item 1) 04unit 2.1/2 inch - 800LB

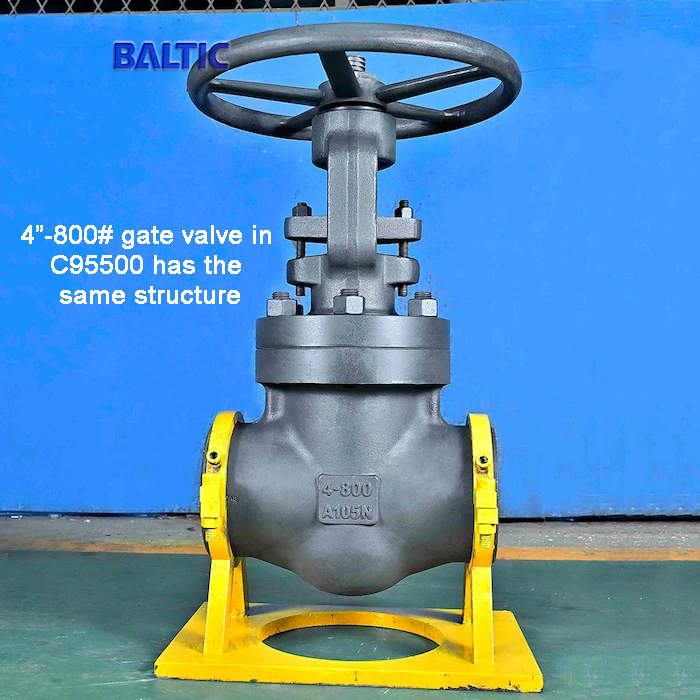

Item 2) 59unit 4 inch - 800LB (the same structure with below picture)
If you are interested in the above valves, pls freely contact us via email: [email protected]

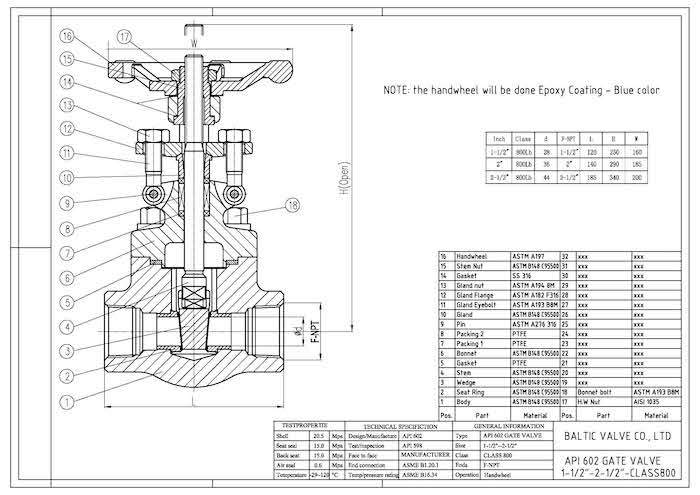

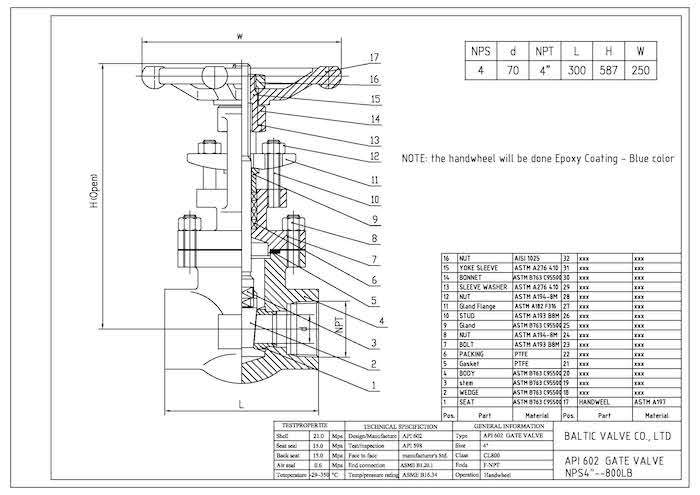

Kindly, please find the attached GA drawing and valve pictures.
BALTIC VALVE CO., LTD
DATED Feb. 13th, 2023
Descriptions
API 602 Gate Valve with hand wheel (Epoxy Coating, blue color)
OS&Y, BB, Rising Stem
Solid Wedge, Reduce Bore
with Back Seat
Ends Connection: F.NPT ends (female threaded) as per ASME B1.20.1
Face to Face Dimension: as per manufacture standard
Testing & Inspection: as per API 598
***Body/Internals: ASTM B763 C95500
***bolt/nut: ASTM A193 B8M/ A194 8M
Item 1) 04unit 2.1/2 inch - 800LB
Item 2) 59unit 4 inch - 800LB (the same structure with below picture)
If you are interested in the above valves, pls freely contact us via email: [email protected]
Kindly, please find the attached GA drawing and valve pictures.
BALTIC VALVE CO., LTD
DATED Feb. 13th, 2023
