High-performance Butterfly Valves

01 15, 2024

We just delivered some of Butterfly Valves with large diameters to one of our major clients in Germany.

Product descriptions

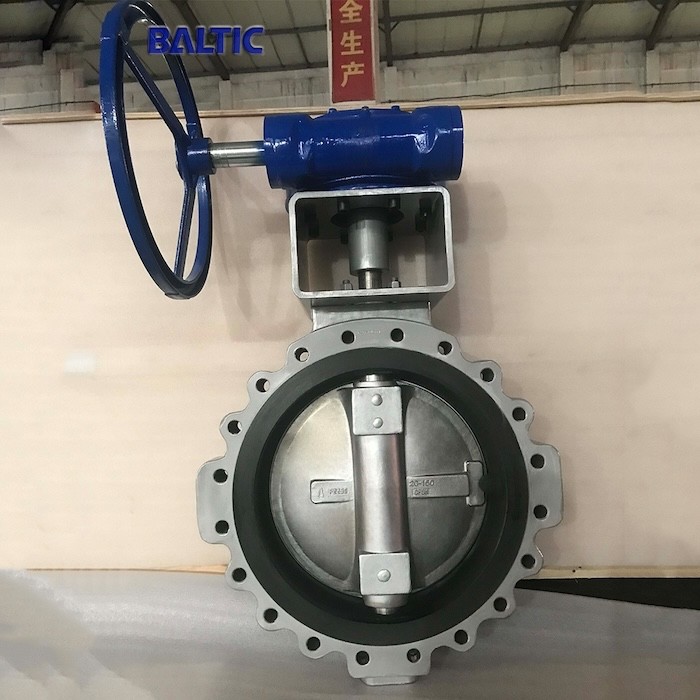

High-performance Butterfly Valve with Gearbox + Hand wheel
Lug type, as per ASME B16.9
Renewable Seat, double eccentric
Fire Safe Design, as per API 607
Anti-blow out Proof Stem (with two PIN fix)

For mounting between two flanges, as per ASME B16.5
Face to face Dimension, as per ASME B16.9 = 127 MM

Body: ASTM A216 WCB
Disc: ASTM A351 CF8M - complete stainless steel
Stem: ASTM A564 T630
Seat: R.PTFE
Special Stem Packing for FET test, API 622 certificate

Item 1) 3Qty 20 inch - 150LB

If you are interested in high-performance butterfly valves, please freely contact us
via email: [email protected]

Kindly, please find the attached copies for GA drawings.

BALTIC VALVE CO., LTD
DATED Janauary15, 2024

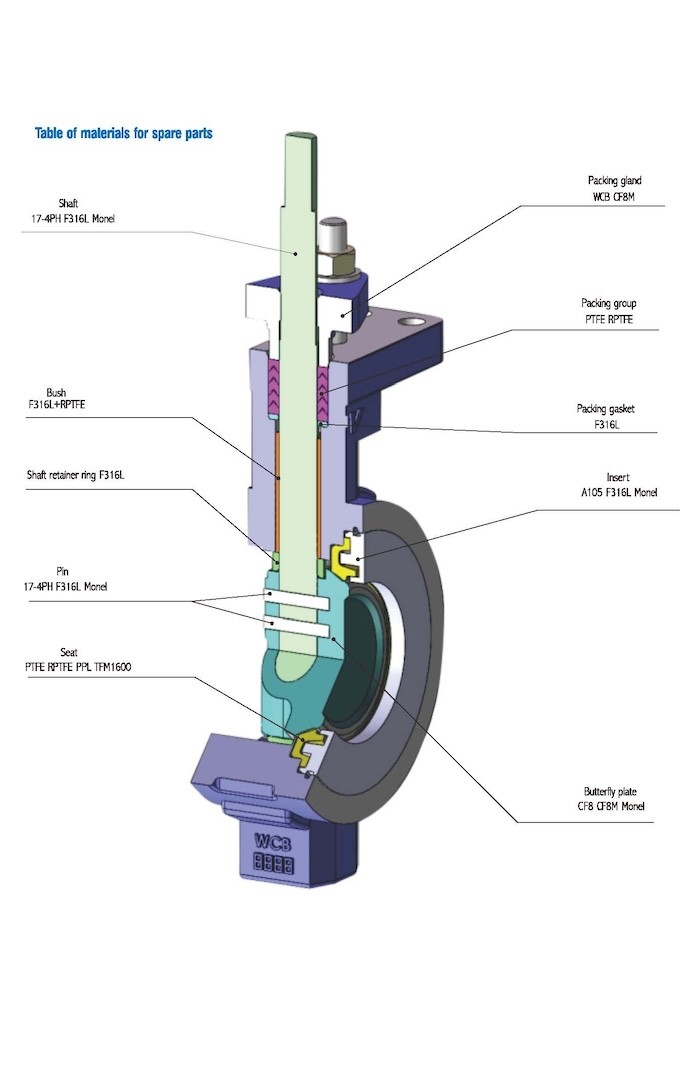

Structure of High-performance Butterfly Valves

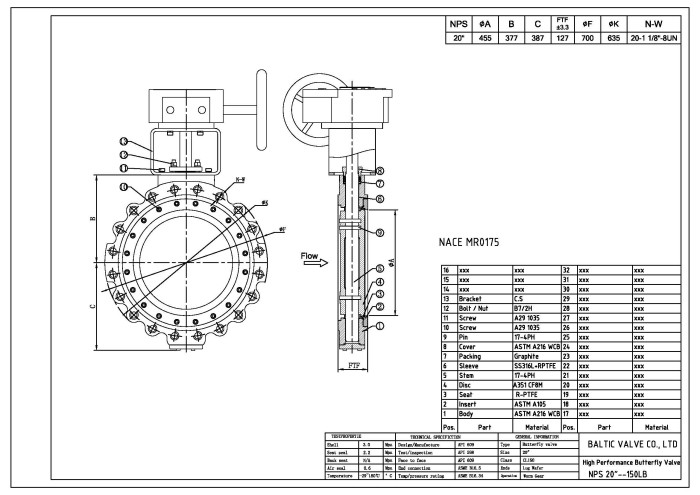

Drawing of High-performance Butterfly Valves
