We have rich experience in gate valves with big sizes, both ANSI types and DIN types. We released ANSI gate valves with sizes up to 48 inches last time. Now, we are going to share with you some DIN gate valves with big sizes whose pressure is PN25 in this article.

Product descriptions
EN1984 GATE VALVE
OS&Y, BB, BG, flexible wedge, full port
with gearbox + hand wheel

Working conditions
Medium: hot water
Operating temperature: 150℃
Operating pressure: 20bar

Body/bonnet: ASTM A216 WCB
Trim: 8# (body seat STL)

Ends connection: Flanged according EN 1092-1 type B1
Face to face dim. acc. EN558-1 type 15

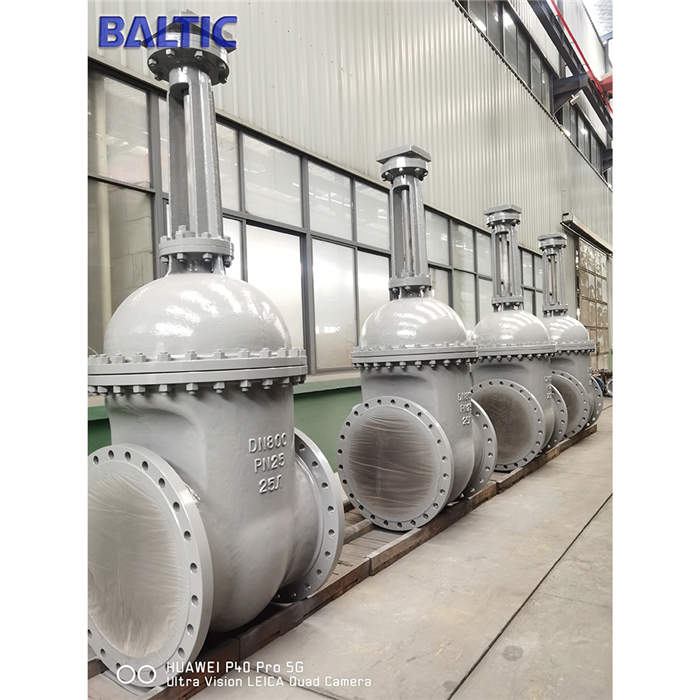

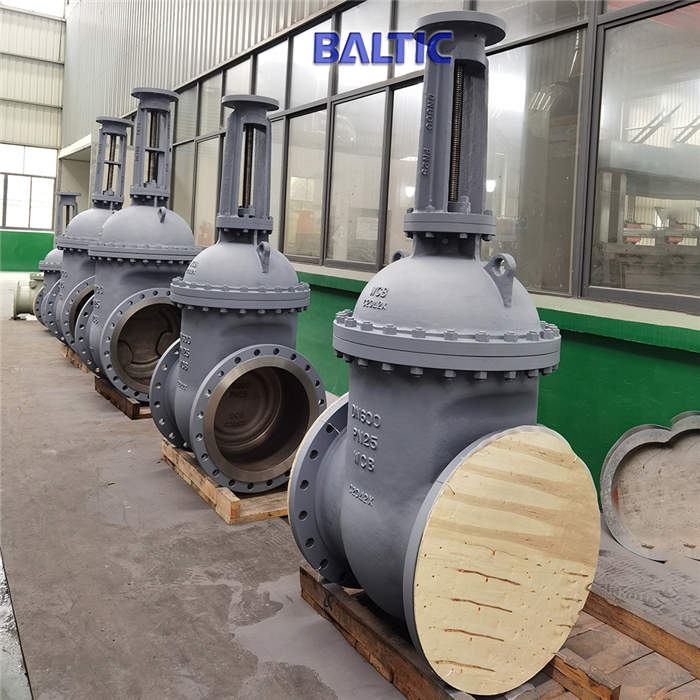

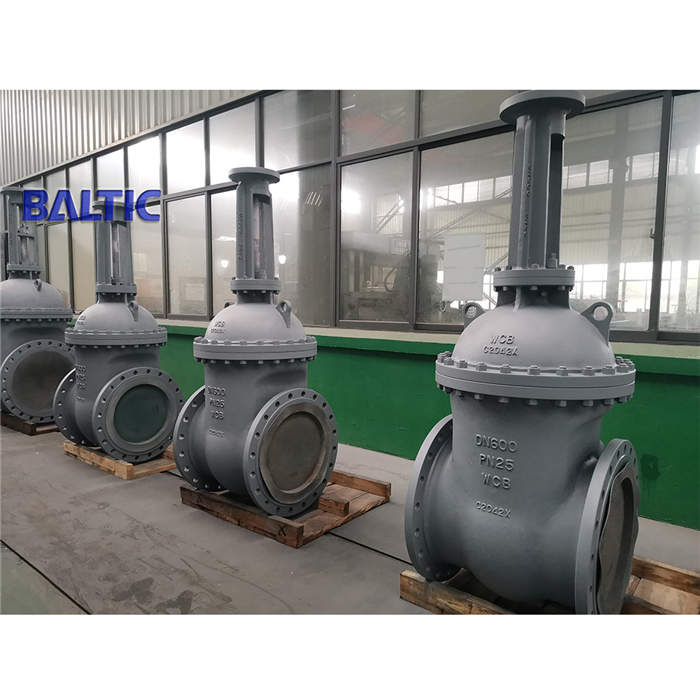

Item 1)  DN600-PN25

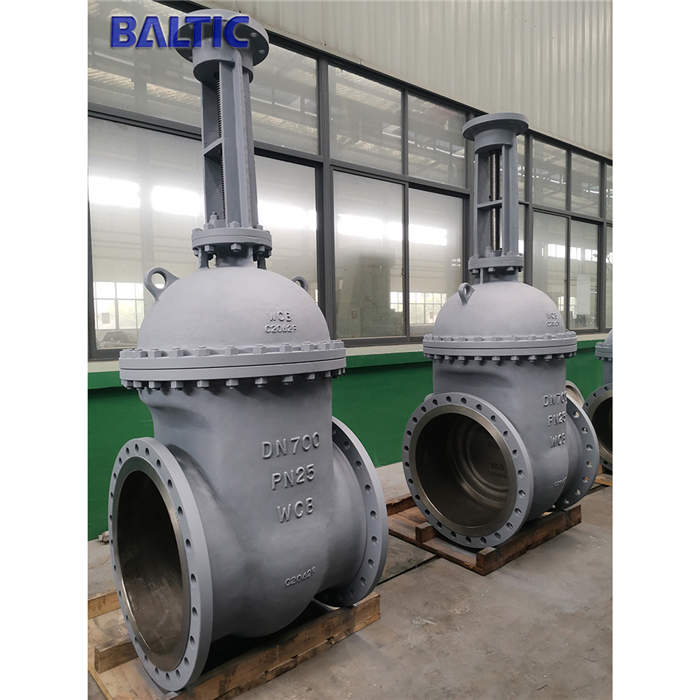

Item 2)  DN700-PN25

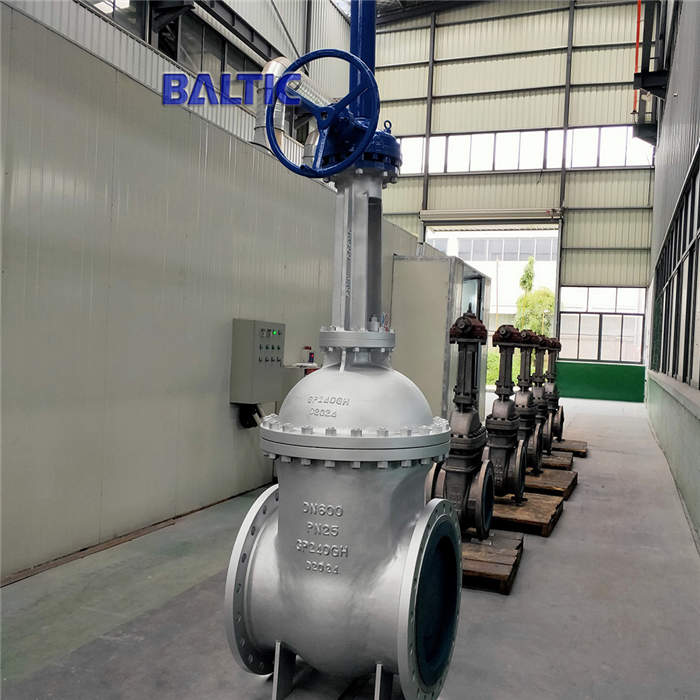

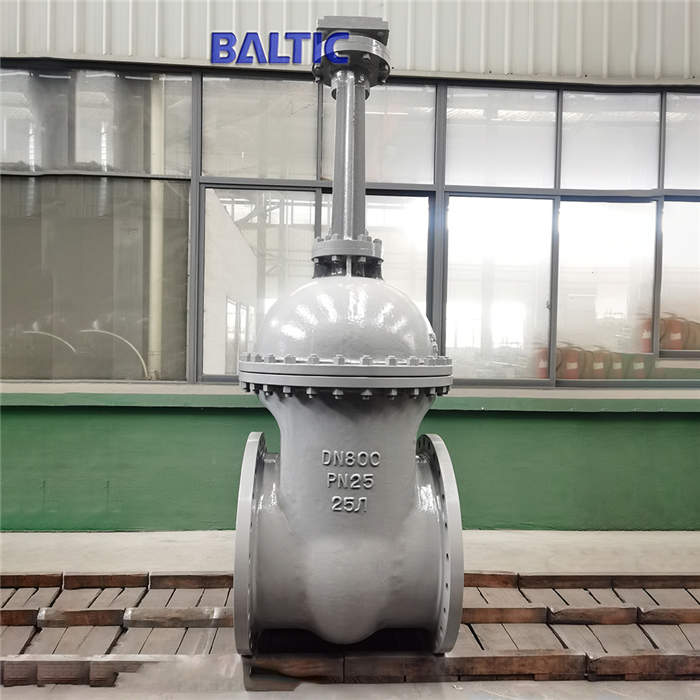

Item 3)  DN800-PN25

BALTIC VALVE CO., LTD
DATED MARCH 9, 2022
