DIN Ball Valves with Bare Stems, Top Flanges and SS304 Brackets

  • 08 23, 2023
We finish manufacturing a some DIN ball valves for one of our European clients, and the details are as follows:

Descriptions of Products
DIN Ball Valve, bare stem + top flange ISO 5211 + SS304 bracket
3-pc body, Trunnion mounted, side entry, full bore
Double shaft seal, venting and drain plug
Anti blow-out proof shaft,
Fire Safe design: API 607
Anti static device

Valve design: as per API 6D
Ends connection: flange ends as per EN1092-1/B1
Face to face dimension: as per EN558/Row 1
Testing & Inspection: ISO 5208 grade A

Medium: air
Working pressure: 10 bar

Body, bonnet: ASTM A182 F316
Ball: ASTM A182 F316 (solid ball)
Stem: ASTM A182 F51
Seat Ring: ASTM A182 F316
Seat insert: DEVLON

Item 5)   DN150 - PN10   L=480MM
ISO 5211 F10. torque 300 N.m

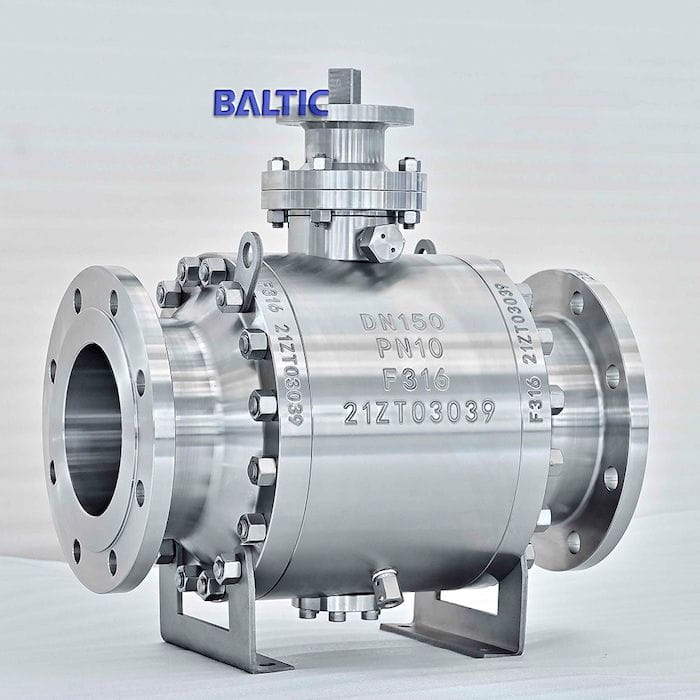

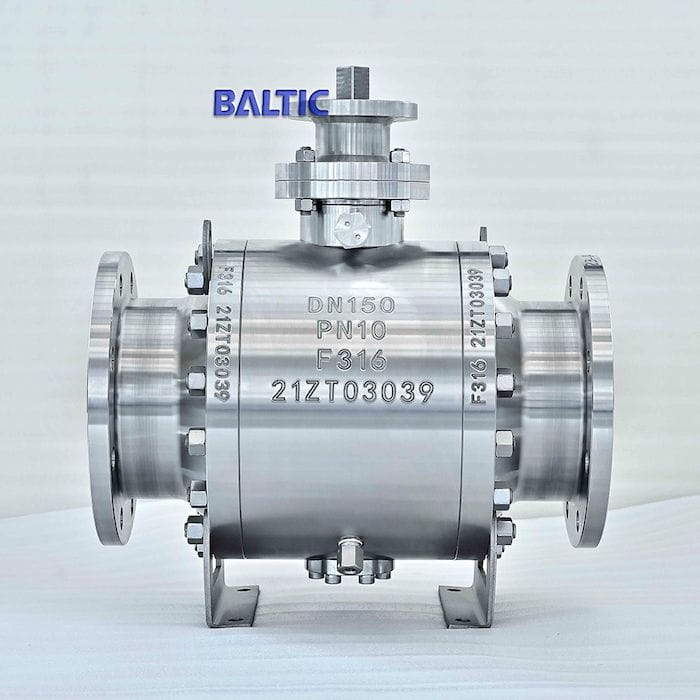

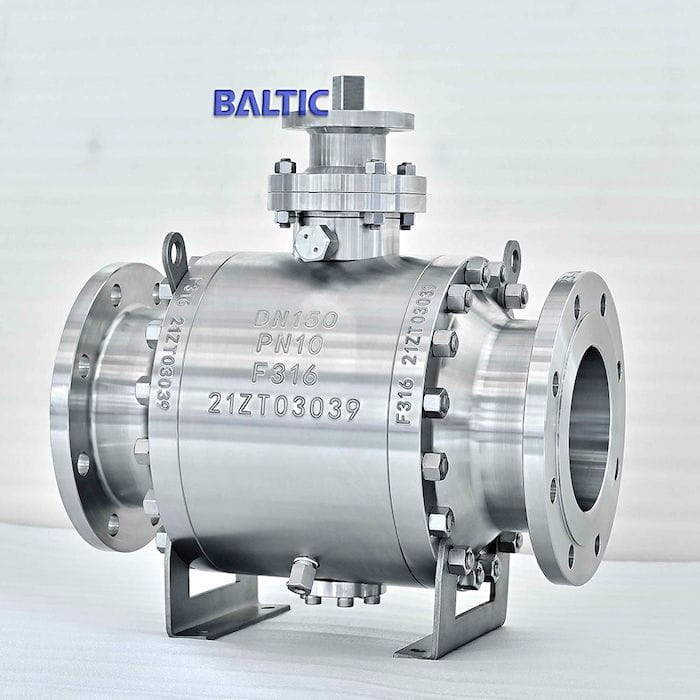

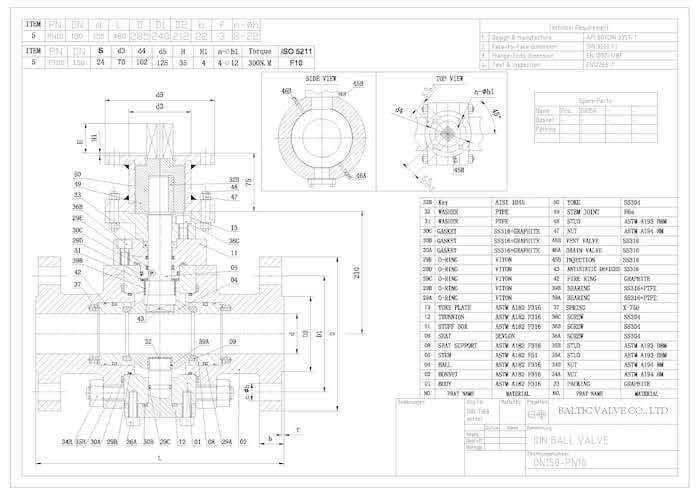

Kindly, please find the attached GA drawing and valve pictures.

BALTIC VALVE CO., LTD
DATED August 22, 2023

DIN Ball Valves with Bare Stems

DIN Ball Valves with the Bare Stem

DIN Ball Valves with Bare Stems

DIN Ball Valves with DN150
