DIN Ball Valves with Bare Stem, Top Flanges and SS304 Brackets

  • 12 05, 2022
We finished manufacturing a few qty of DIN ball valves for one of our European clients, the details are as follows:

The description of the product
DIN ball valve, bare stem + top flange ISO 5211 + SS304 bracket
3-pc body, Trunnion mounted, side entry, full bore
Double shaft seal, venting and drain plug
Anti blow-out proof shaft
Fire safe design: API 607
Anti static device

Valve design: as per API 6D
Ends connection: flange ends as per EN1092-1/B2
Face to face dimension: as per EN558-1/ line 2
Testing & Inspection: ISO 5208 grade A

Medium: mineral oil
Working pressure: 70 bar

Body, bonnet: ASTM A105 (with epoxy coating 200 microns)
Ball: ASTM A182 F316 (solid ball)
Stem: ASTM A182 F51
Seat Ring: ASTM A182 F316
Seat insert: DEVLON

Item 1)  6Qty  PN100 - DN100   L=430MM
 ISO 5211 F14. torque 540 N.m

Item 2)  6Qty  PN100 - DN200   L=650MM
 ISO 5211 F16.  torque 2060 N.m

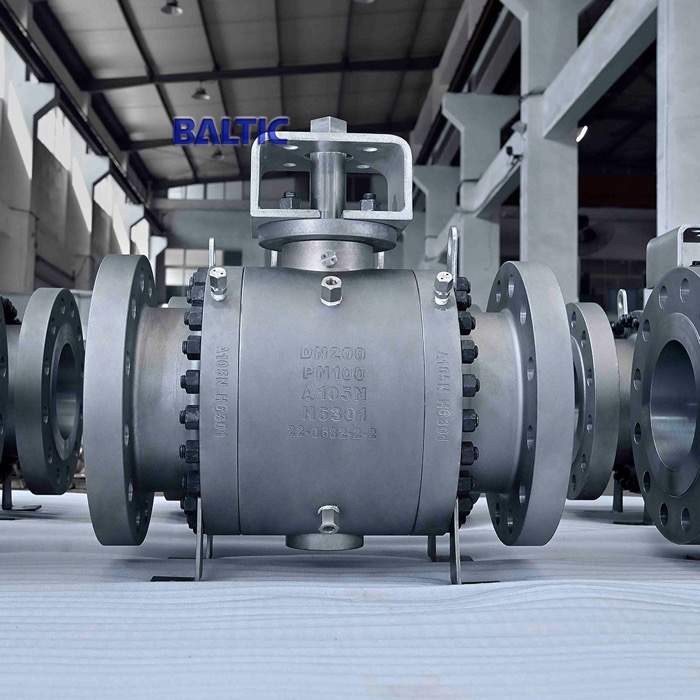

Kindly, please find the attached GA drawing and pictures of the valves.

BALTIC VALVE CO., LTD
DATED December 05, 2022
