• Big Size of EN Gate Valve for Big Project
Big Size of EN Gate Valve for Big Project

Big Size of EN Gate Valve for Big Project

  • 12 15, 2025

Medium:

Crude oil, -29°C up to +60°C

Product Description:

EN1984 Gate Valve with Gearbox and Handwheel

OS&Y, bolted bonnet (BB), body-guided (BG), flexible wedge, full port

Bottom supports for stable installation

End Connections: Flanged ends, EN1092-1/B1

Face-to-Face Dimension: EN558-1, Line 15 – 1000 mm

Body Material: GP240GH

Trim Material: 8# stainless steel (half stainless steel)

Rating: PN16, DN800

Special Coating: As described below

Corrosion Protection: According to EN ISO 12944-2, corrosivity category C5

Primer: 1 × 50 µm, two-component metallic zinc-rich epoxy primer, Interzinc 52

Mid-Coat: 1 × 120 µm, two-component epoxy coating, Intergard 475HS

Topcoat: 1 × 60 µm, two-component acrylic polyurethane, Interthane 990

Total Dry Film Thickness: ≥230 µm, Color: RAL 9016 (Traffic White)



If you are interested in DIN / EN of gate valves,

Please freely contact us via email: [email protected]

Kindly, please find attached the copy of:

GA Drawings

Valve Images



BALTIC VALVE CO., LTD

December 15th, 2025

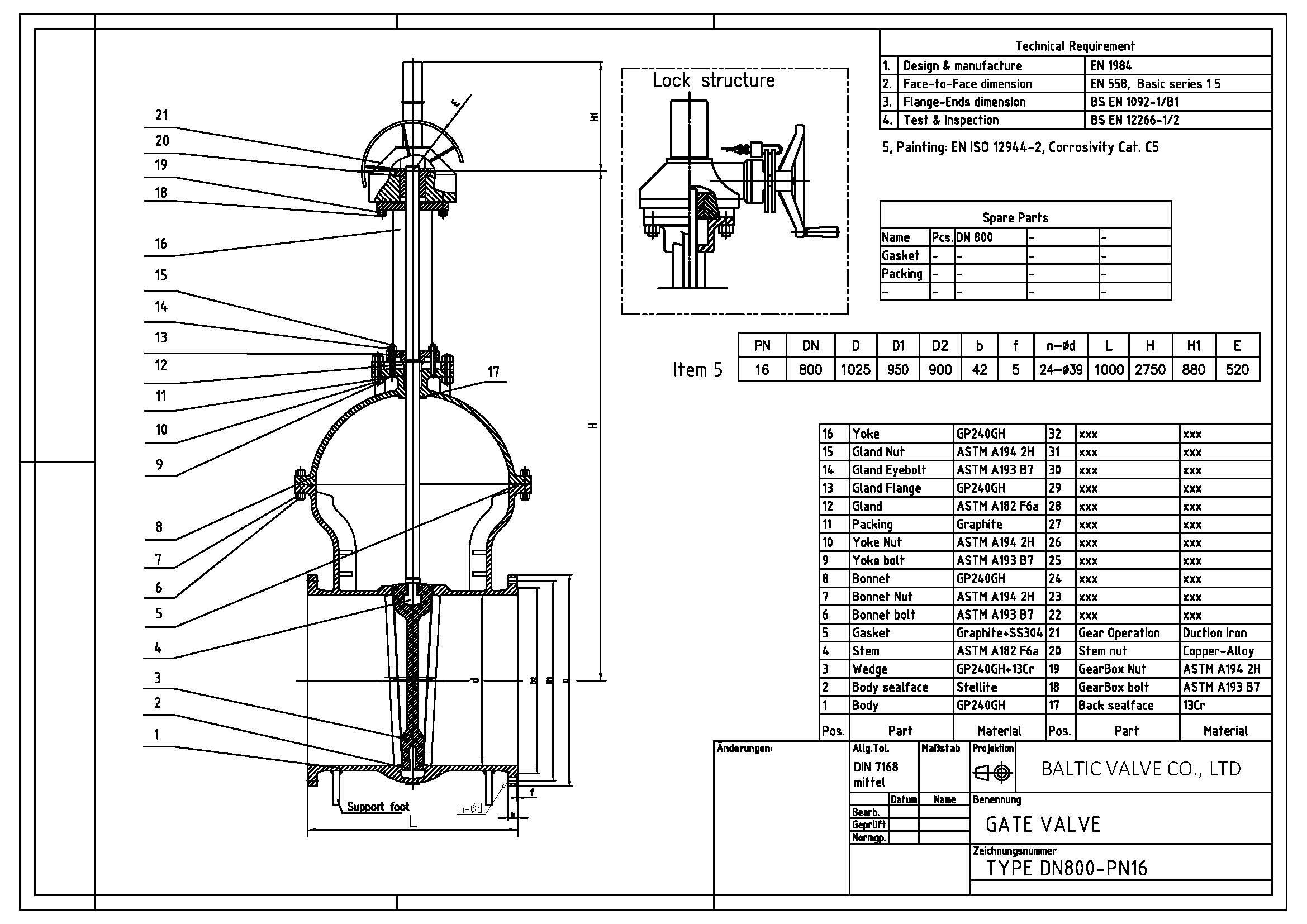

Drawing for EN1984 Gate Valve

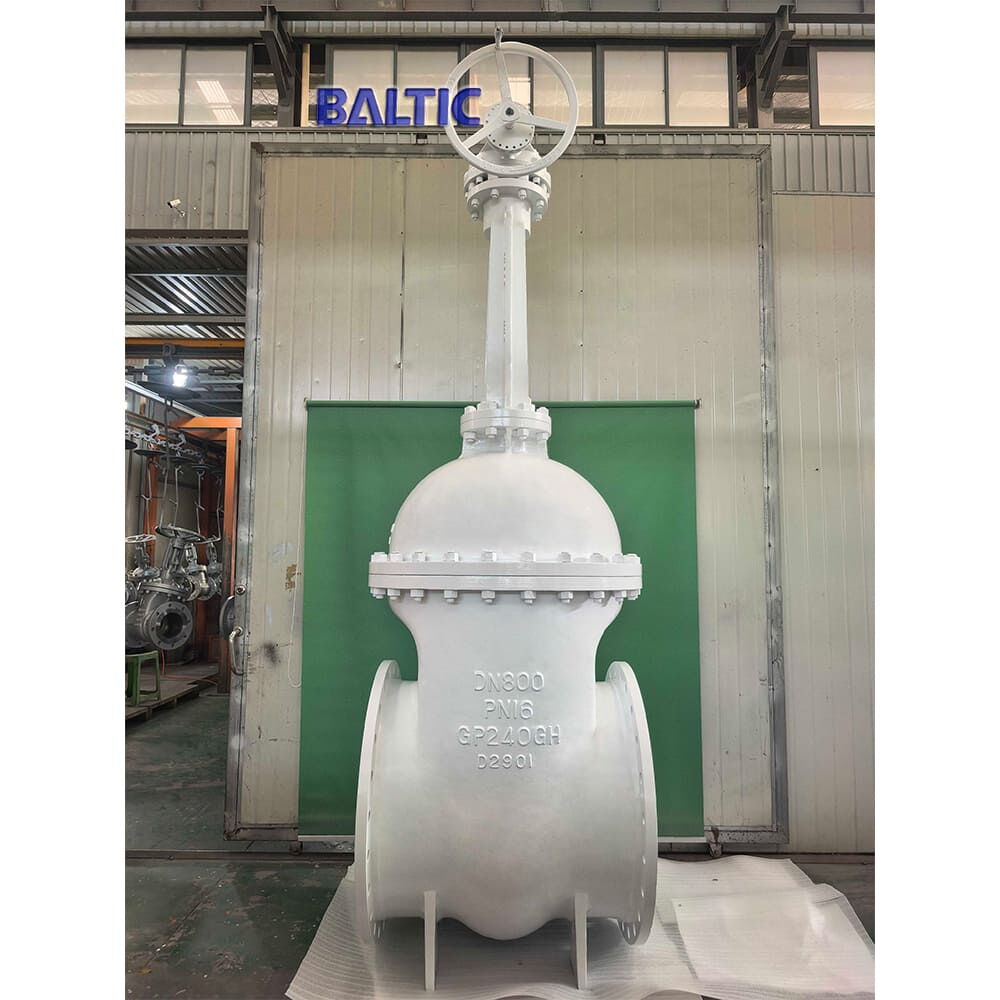

EN1984 Gate Valve DN800, PN16

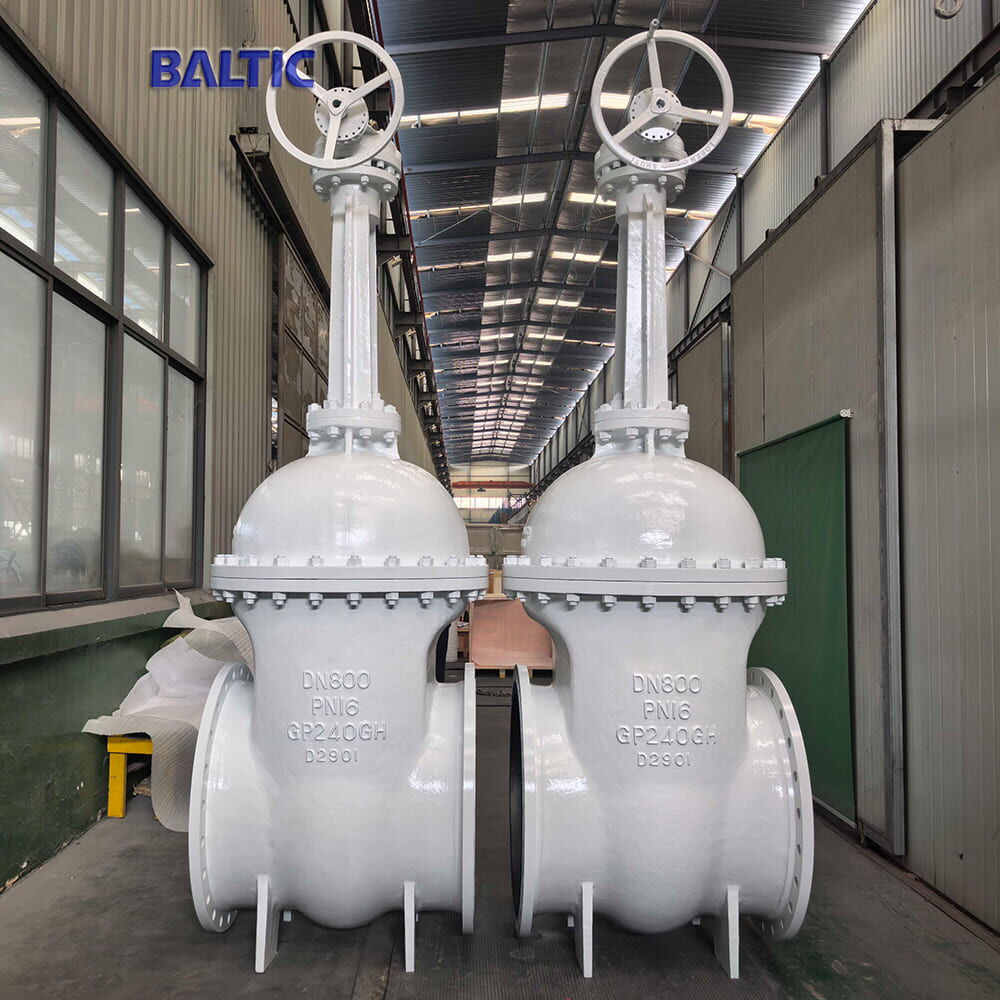

EN1984 Gate Valves DN800, PN16
