Baltic Delivered API 6D Ball Valves to BP & Basra Oil Company in Iraq

  • 07 31, 2019
API 6D ball valve, metal seat, high class, for oil / natural gas

We finished & delivered class 900 ball valves to BP/ Basra Oil Company in Iraq

Product description:
Ball Valve: Metal Seat, high class
Design: API 6D
3PC body, Trunnion Mounted, Solid
Ball, Full Bore. Fire Safe Design,
Anti-Static Device,
Blow Out Proof Stem

Connection: RTJ acc. to ASME B16.5
Face to Face dimension: ASME B16.10 = 613 MM

Material
Body: ASTM A105N
Ball:  ASTM A182 F51 + TCC
Stem: ASTM A479 Gr. XM-19
Seat:  ASTM A182 F51 + TCC
Flexible Graphite Seal
Stud / Nut：B7M / 2HM, HDG
As per NACE MR 0175
Operation: Gearbox

Size:  6 inch
Class: 900 lb
Qty:   15 pieces

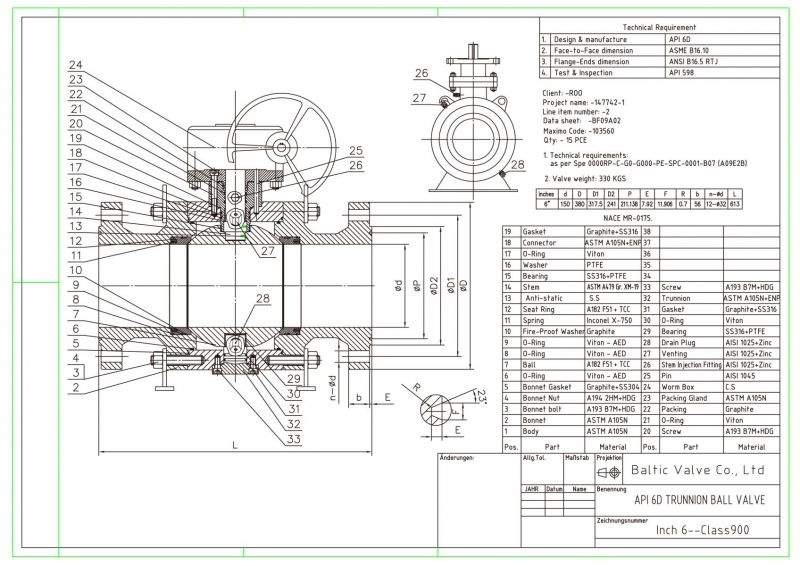

Kindly, please find the following copy of our GA drawing,
Baltic Delivered API 6D Ball Valves to BP & Basra Oil Company in Iraq

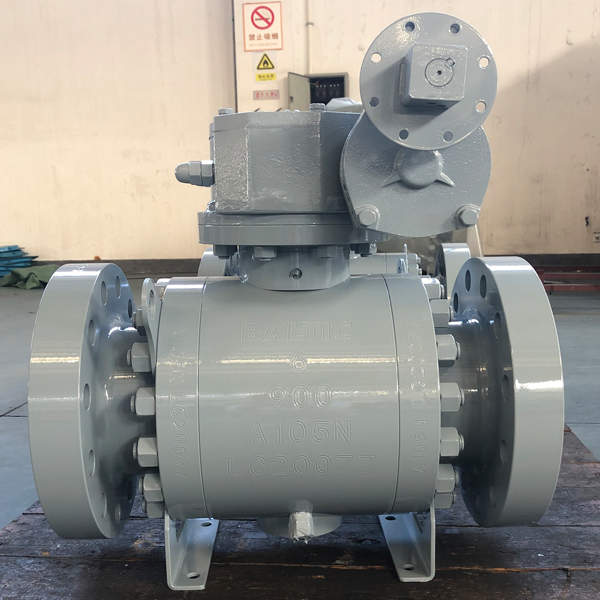

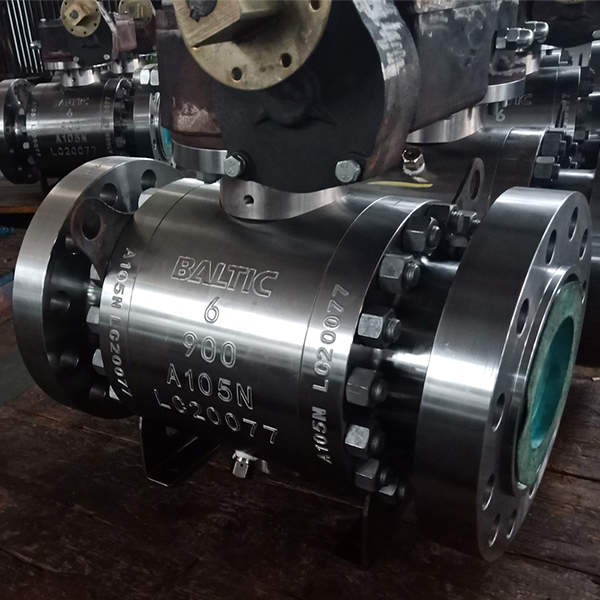

Valve pictures:
Baltic Delivered API 6D Ball Valves to BP & Basra Oil Company in Iraq  Baltic Delivered API 6D Ball Valves to BP & Basra Oil Company in Iraq
