Baltic Delivered API 600 Gate Valve to BP/ Basra Oil Company in Iraq

  • 08 21, 2019
API 600 Gate Valve for Raw Water

We finished and delivered Class 300, 40 Inch gate valves to BP/ Basra Oil Company in Iraq.
Purchase Order Number: OR 125704
Customer's Data Sheet: YO3F3B
Requested the valve inside & outside to be done painting

Product description:
API 600 Gate Valve
Design: API 600
O.S&Y, BB, Rising Stem, Full Port
Flexible Wedge with Back Seat
With Bottom Feet for Standing

Materials:
Body: ASTM A216 WCB
Trim: 12#
Stem: 17-4PH
Wedge: CF8M + Stellite
Body Seat: F316 + Stellite
Stud/Nut: A193 B7 / A194 2H
Stem Packing: Graphite
Bonnet Gasket: SS 304 + Graphite

Connection: RF acc. to ASME B16.47 Series A
Face to Face: ASME B16.10 = 1955mm

Size: 40 Inch
Class: 300 LB
Qty: 6 PCS

Kindly, please find the following copies of our GA drawing, valve pictures:

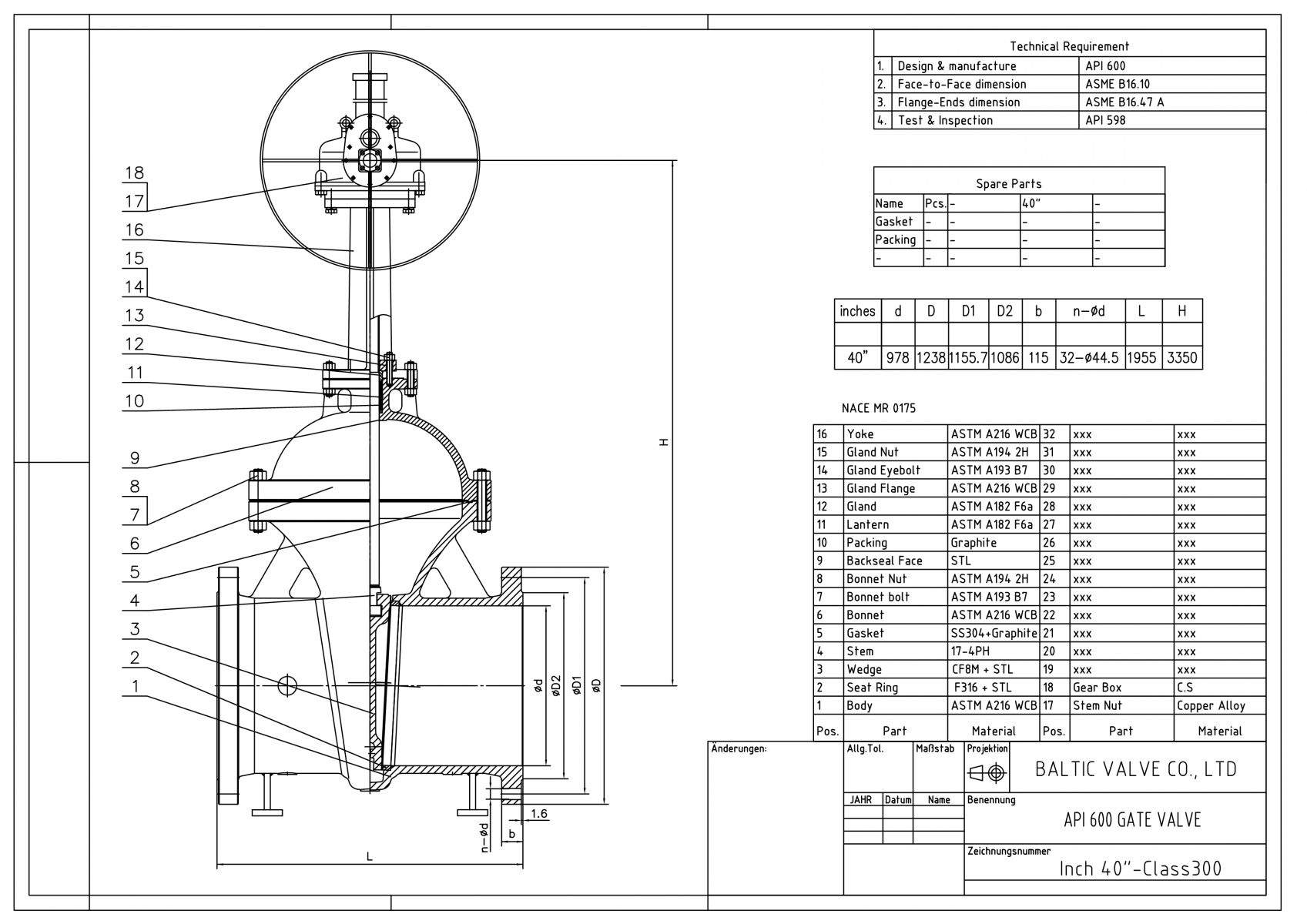

GA Drawing

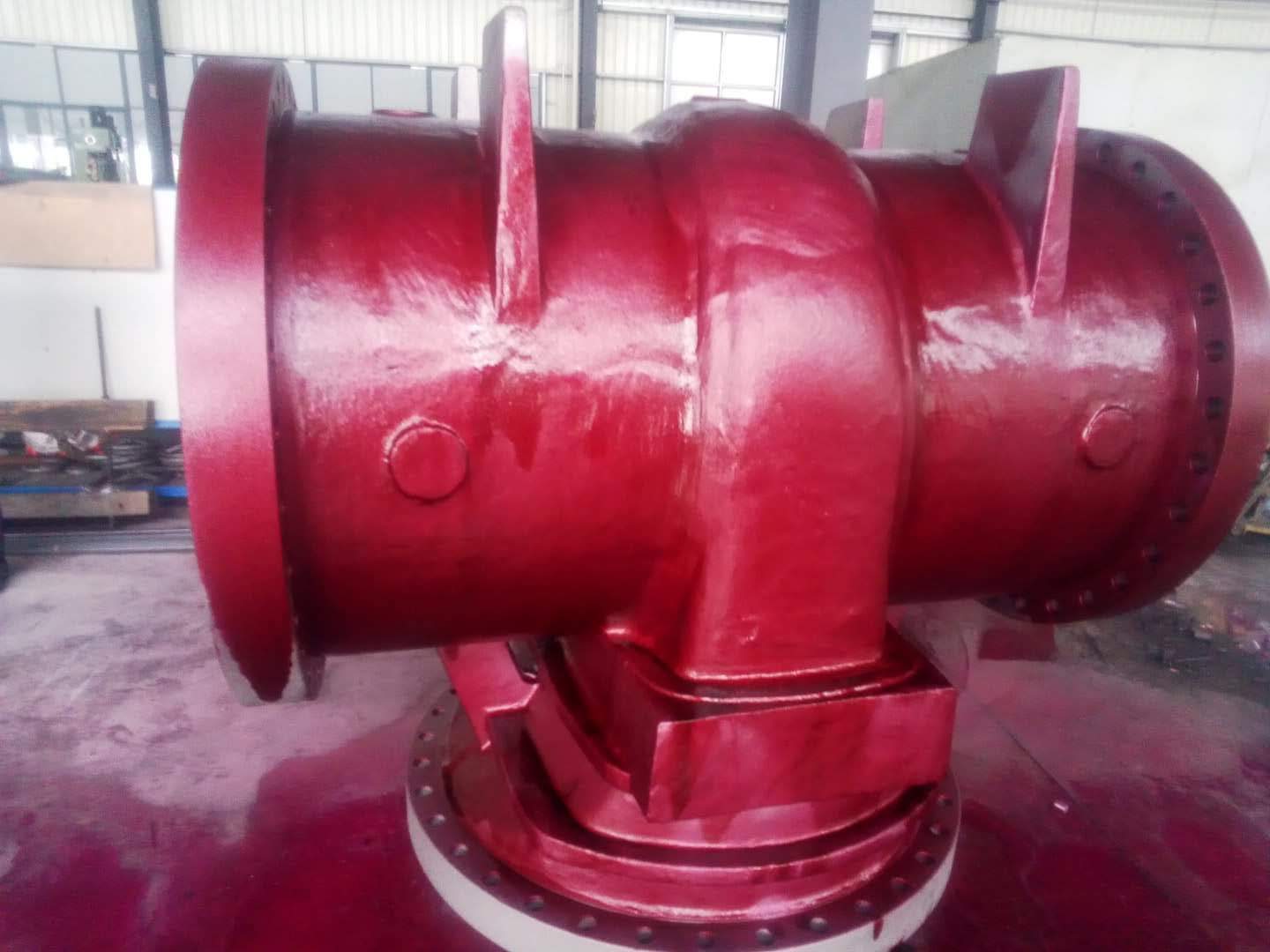

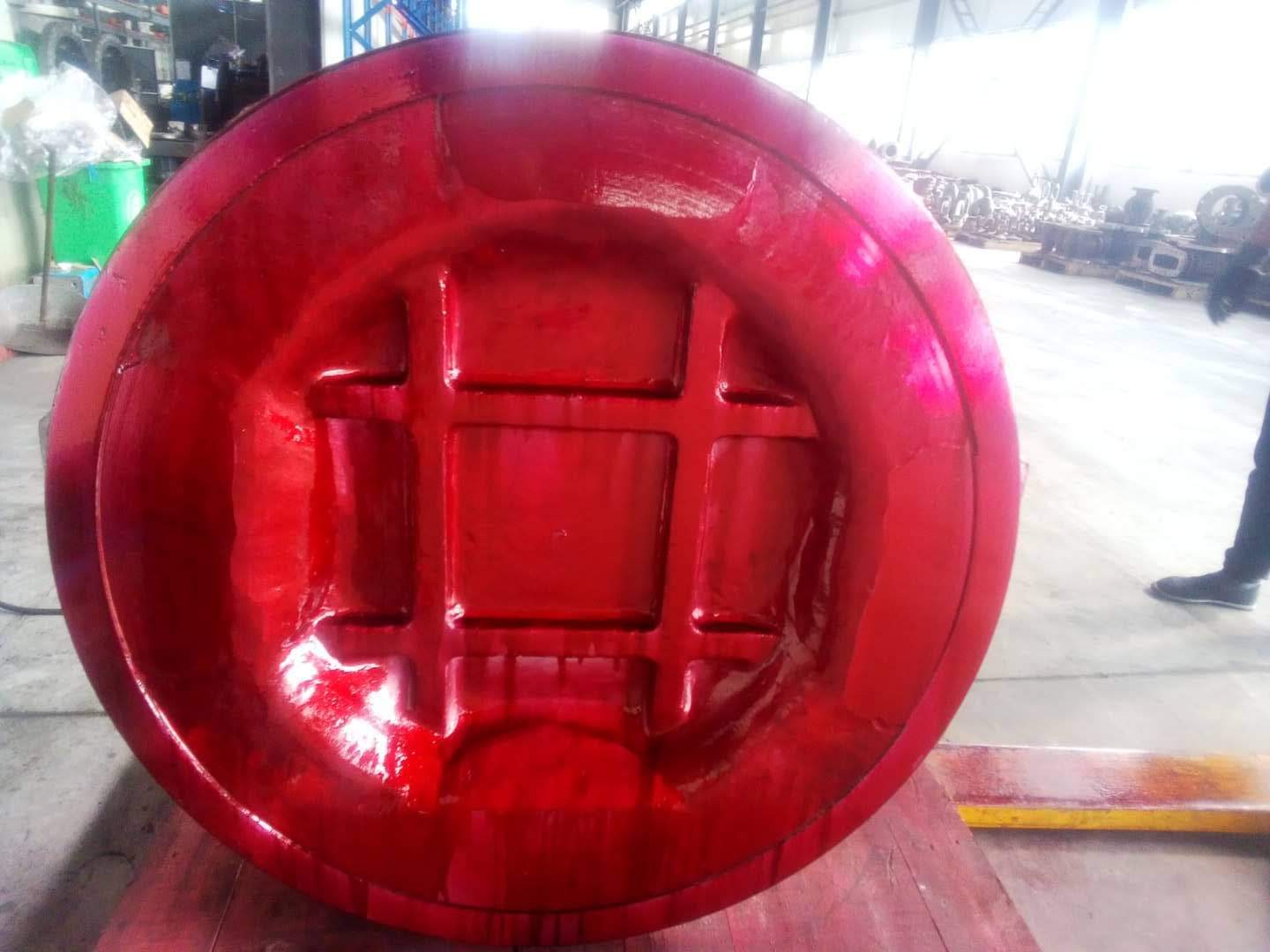

NDE Test (PT)

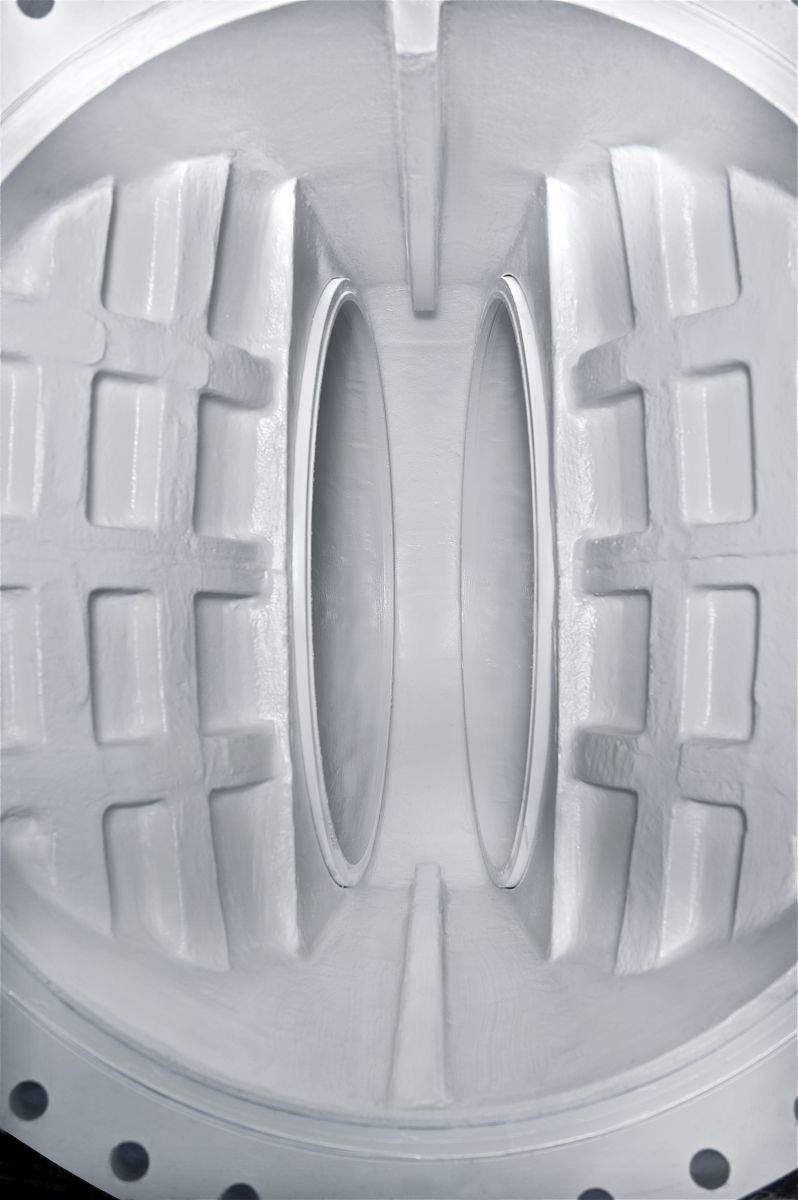

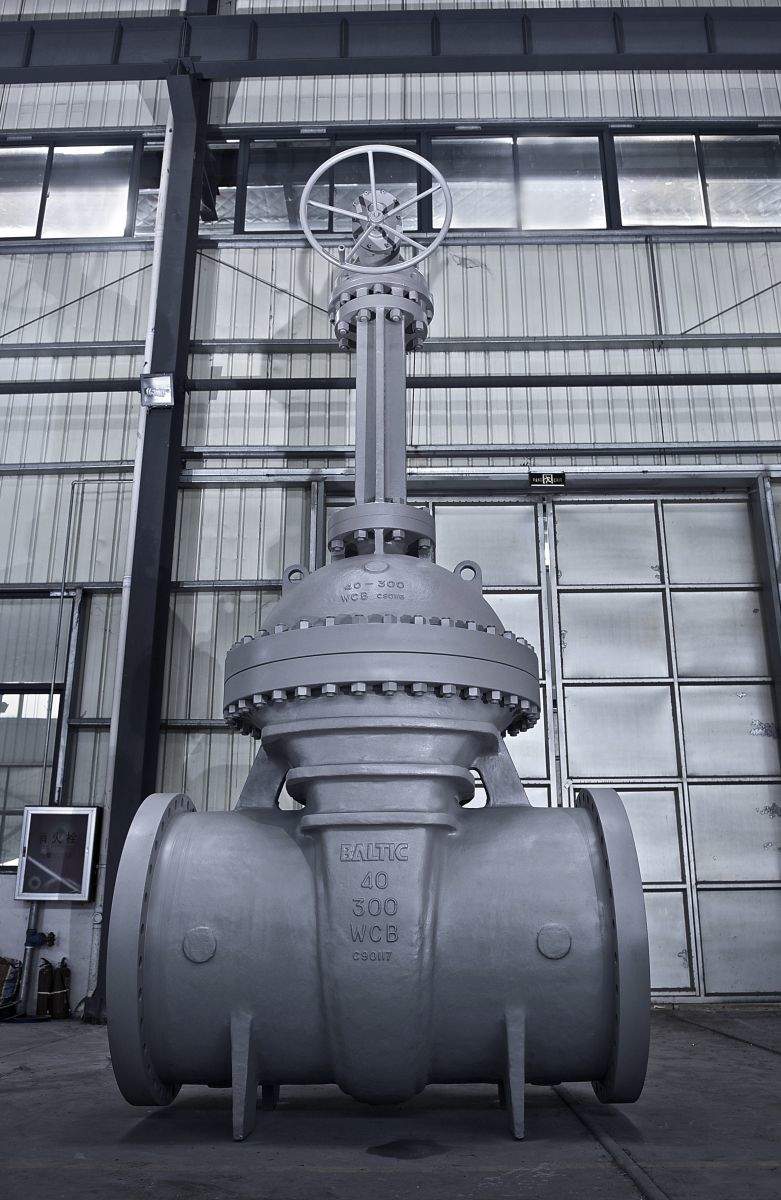

Valve Pictures
