• Integral Flanged Gate Valve, ASTM A105N, DN125, PN100, EN 1984

Integral Flanged Gate Valve, ASTM A105N, DN125, PN100, EN 1984

Integral Flanged Gate Valve, ASTM A105N, DN125, PN100, EN 1984

Integral Flanged Gate Valve, ASTM A105N, DN125, PN100, EN 1984

Key Specifications / Features

Model No.: Hits: 42

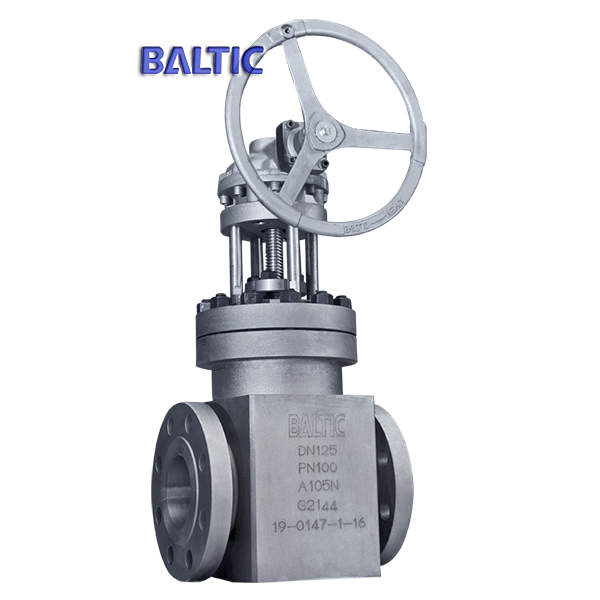

Integral Flanged Gate Valve Supplier in China: Integral Flanged Flexible Wedge Gate Valve, ASTM A105N, Forged Steel, DN125, PN100, EN 1984, DIN 3352.
Request a quote Share

Next: Cast Steel Gate Valve, GS-C25, DN300, PN100, EN 1984, DIN 3352, RF

Previous: PN160 DN100 Wedge Gate Valve, GS-C25, DIN 3352, EN 1984, RF

Detail Information

Product name: Flexible wedge gate valve.
Design: EN 1984, DIN 3352.
Material: ASTM A105N (forged material).
Nominal size: DN125.
Nominal pressure: PN100.
End connection: Flanged, Integral flanged ends.
Face to face: EN 558-1/line 26.
Test and inspection: EN 12266-1.

Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2 - 60 Inch (DN50 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -196℃ - +573℃.
