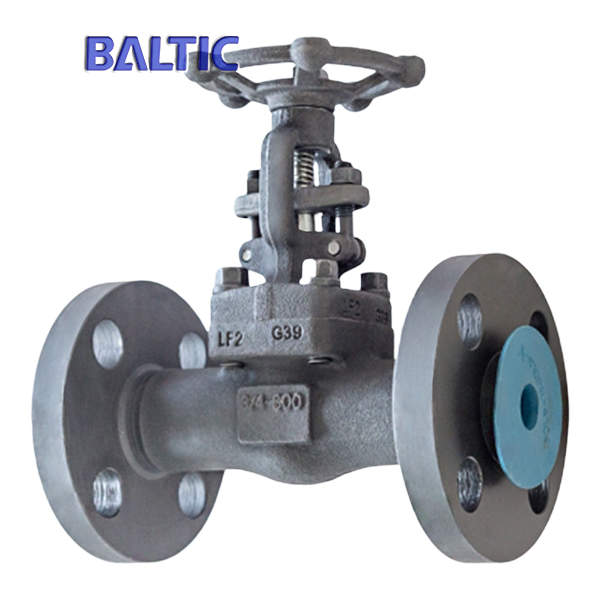

• Integral Flanged End Gate Valve, ASTM A350 LF2, 3/4 Inch, 600 LB

Integral Flanged End Gate Valve, ASTM A350 LF2, 3/4 Inch, 600 LB

Integral Flanged End Gate Valve, ASTM A350 LF2, 3/4 Inch, 600 LB

Integral Flanged End Gate Valve, ASTM A350 LF2, 3/4 Inch, 600 LB

Key Specifications / Features

Model No.: Hits: 193

Integral Flanged End Gate Valve Manufacturer in China: Small Size Integral Flanged End Gate Valve, ASTM A350 LF2, 3/4 Inch, Class 600 LB, API 602.
Request a quote Share

Next: Forged Carbon Steel Gate Valve, LF2, 2 IN, CL150, Integral Flanged

Previous: API 602 Forged Steel Gate Valve, ASTM A182 F316, DN15, PN63, BW

Detail Information

Name: Small size gate valve, with integral flange.
Design: API 602.
Body: ASTM A350 LF2.
Nominal size: 3/4 Inch.
Nominal class: 600 LB.
End connection: flange ends.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small size gate valve
Nominal diameter 1/4 Inch - 4 Inch
Design temp.  -196℃ - 573℃
Design pressure Class 150 - 4500
Material Carbon steel, Stainless steal, Alloy steel, Bronze
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end NPT, SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application Power station, petroleum, chemical engineering
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 solid wedge
Function 3 Full bore, reduced bore
Function 4 Integral flanged ends, welded on flanged ends
