Discover our DN200 gate valve offering: 8-inch size, PN63 and Class 400 LB pressure ratings, made from GP240GH material, compliant with DIN 3352 and EN 1984 standards. It features a flexible wedge design and is equipped with a drain valve. Our gate valve ensures reliable performance. RF X RF ends provide a secure connection, while FF EN 558-1/line 26 standard adds to its versatility. Trust in our quality gate valves for your industrial needs.

Tags:

• DN200 Gate Valve
• PN63 Gate Valve
• GP240GH Gate Valve
• Flexible Wedge Gate Valve
• EN 1984 Gate Valve
• RF Gate Valve
• 8 Inch Gate Valve
• Class 400 LB Gate Valve
• DIN 3352 Gate Valve

Valve description:

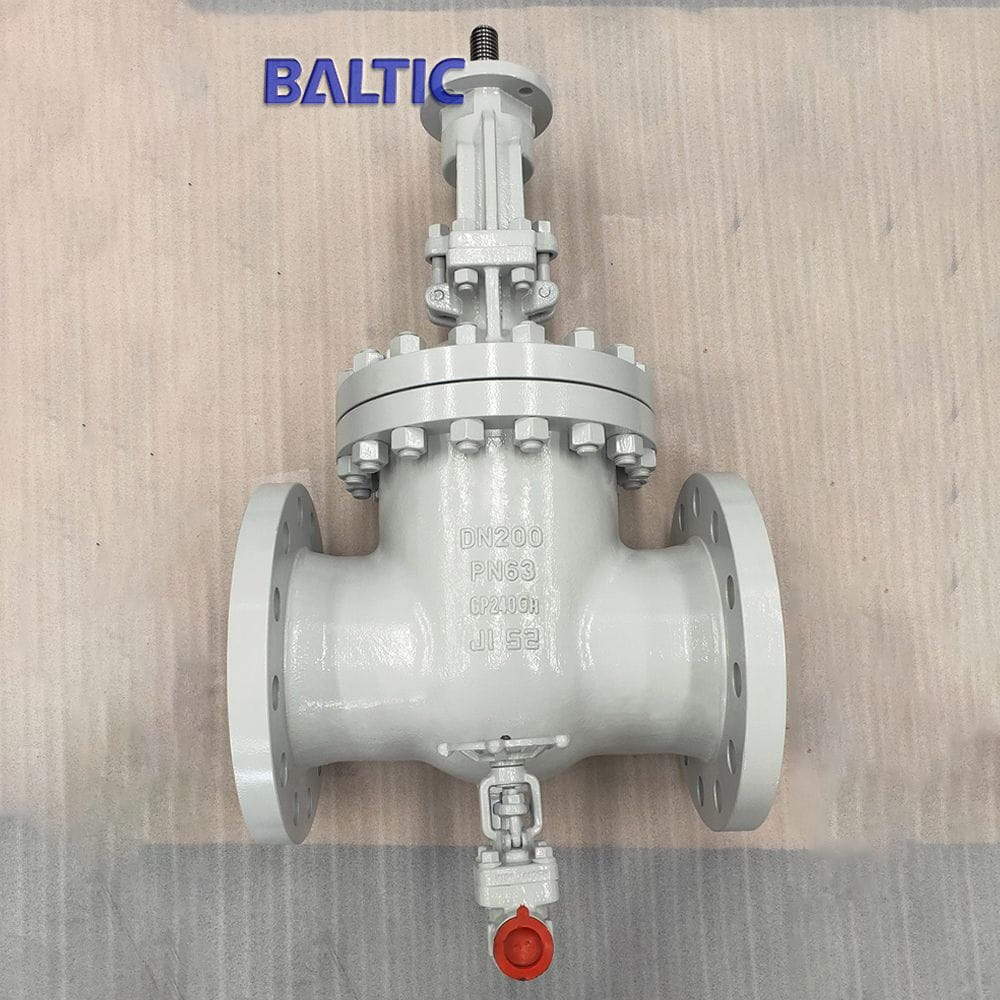

Product Name: Flexible Wedge Gate Valve, with drain valve.
Design: EN 1984, DIN 3352
Material: GP240GH.
Nominal Size: DN200
Nominal Pressure: PN63
Connection Ends: RF X RF, as per EN 1092-1/B2
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem + ISO TOP flange
Test and Inspection: EN 12266-1.

Other features
Pressure seal bonnet & Bolted bonnet
Full bore & Flexible wedge

For pressure seal bonnet type:
Bonnet gasket & metal sealing
RTJ ring & SS 304 & a long service.
Threaded stem & corrosion resistance

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A352 LCB, ASTM A352 LCC, CN7M, CK3MCUN, CN3MN, ASTM A890 6A (CD3MWCuN), ASTM A890 5A (CE3MN), ASTM A890 4A (CD3MN), ASTM B148 C95500, ASTM B148 C95800
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Connection end: ASME B16.5, ASME B16.25, EN1092 series.
Design temp.: -196℃  -  573℃.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
