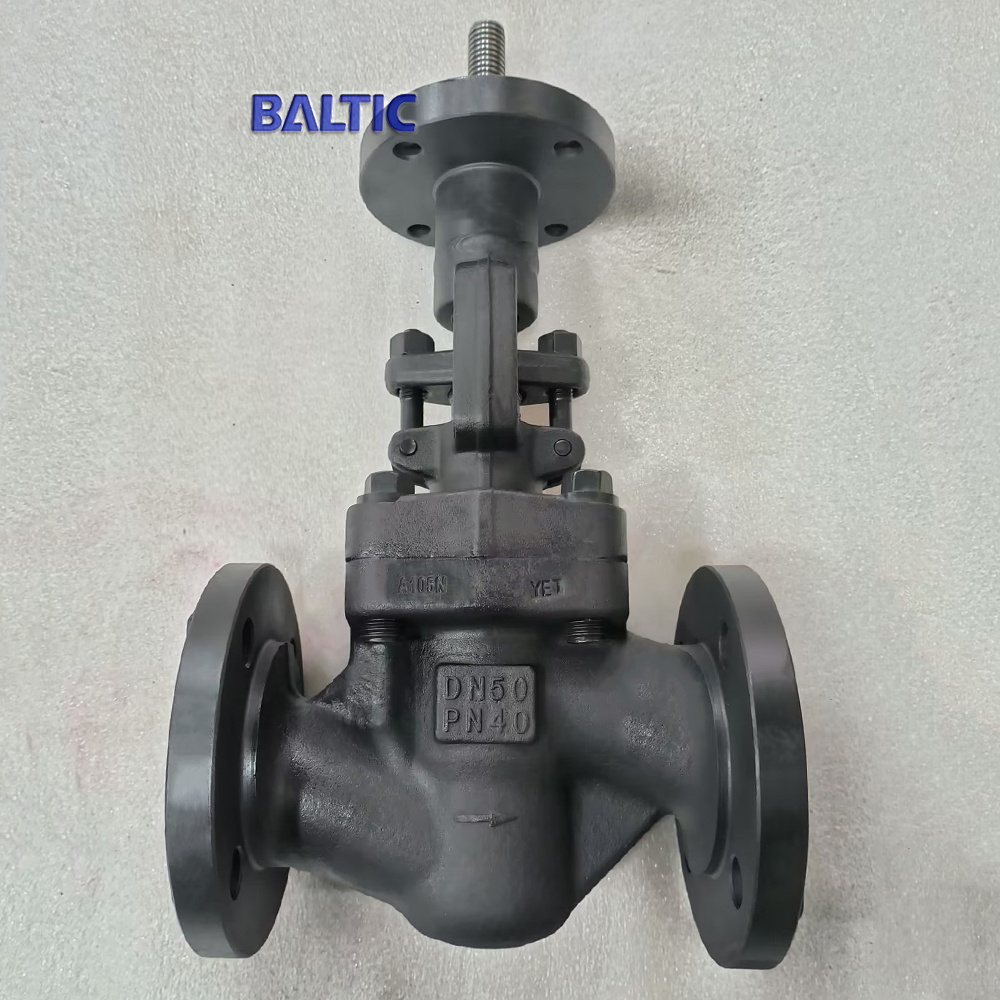

DIN 3356 Globe Valve, ASTM A105N, DN50, PN40, Full Bore, RF

This small size globe valve is manufactured from high-quality carbon steel ASTM A105N, designed for reliable flow control in industrial piping systems. With a DN50 size and PN40 pressure rating, it ensures stable performance under medium to high-pressure conditions. The RF flanged ends provide secure and leak-free installation, while the full bore design allows efficient flow passage with minimal pressure loss. Featuring an integral flange structure, it enhances strength and durability for long-term operation. As a leading DIN 3356 globe valve supplier in China, we are committed to delivering precision-engineered valves with consistent quality and dependable performance for global customers.


Tags:

• DIN 3356 Globe Valve
• ASTM A105N Globe Valve
• DN50 Globe Valve
• PN40 Globe Valve
• Small Size Globe Valve

Valve Description:
Name: DIN small size globe valve, full bore, with integral flange, with bare stem + top ISO flange.
Design: DIN 3356.
Body: ASTM A105N.
Nominal Size: DN50.
Nominal Class: PN40.
End Connection: RF Flanged Ends.
Face to Face: EN 558-1/line 1.
Test and Inspection: EN 12266-1.

Technical Parameters and Characteristics
Product: Small Size Globe Valve.
Nominal Diameter: DN8 - DN50.
Design Temp.: -196°C - 573°C.
Design Pressure: PN10 - PN160.
Material: Forged Carbon Steel, Stainless Steel, Alloy Steel, Bronze.
Design Standard: API 602, DIN 3356.
Face to Face: Manufacture Standard, EN 558-1/line 1.
Connection End: NPT, SW, BW, Flange.
Test Standard: API 598, ISO 5208.
Operation: Handwheel, electric.
Application: Power station, petroleum, chemical engineering.
Function 1: Bolted bonnet, welded bonnet, pressure seal bonnet.
Function 2: Plug disc, needle disc.
Function 3: Full bore, reduce bore.
Function 4: Integral flanged Ends, welded on flanged Ends.
