Discover high-quality ASTM A995 6A Flexible Wedge Gate Valves at our factory, meeting EN 1984 and DIN 3352 standards. These valves are designed for excellence with DN250 size, PN16 rating, and 10-inch size compatibility. They are also suitable for Class 150 LB applications and feature RF X RF ends. Made from ASTM A890 materials, including 4A, 5A, and 6A options, our valves undergo rigorous testing per EN 12266-1 standards.

Tags:

• DN250 Gate Valve
• PN16 Gate Valve
• EN 1984 Gate Valve
• DIN 3352 Gate Valve
• RF Gate Valve
• 10 Inch Gate Valve
• Class 150 LB Gate Valve

Valve description:

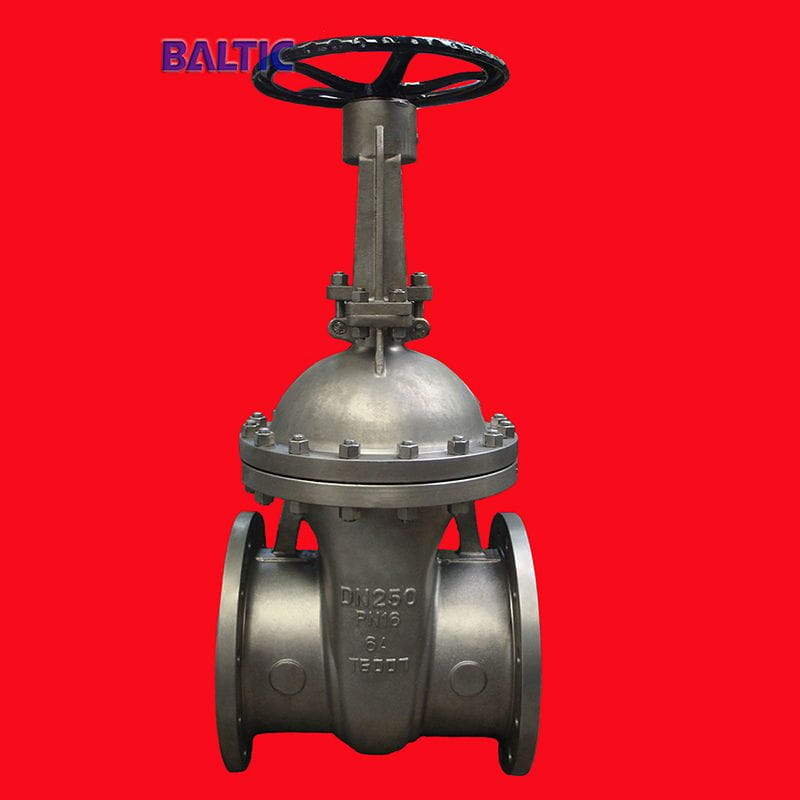

Product Name: Flexible Wedge Gate Valve.
Design: EN 1984, DIN 3352
Material: ASTM A995 6A.
Nominal Size: DN250
Nominal Pressure: PN16.
Connection Ends: RF X RF, as per EN 1092-1/B1.
Face to Face: EN 558-1/line 15
Model of Operation: Handwheel, Gearbox, bare stem
Test and Inspection: EN 12266-1.

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.:  -196℃  -  573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN),
ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
