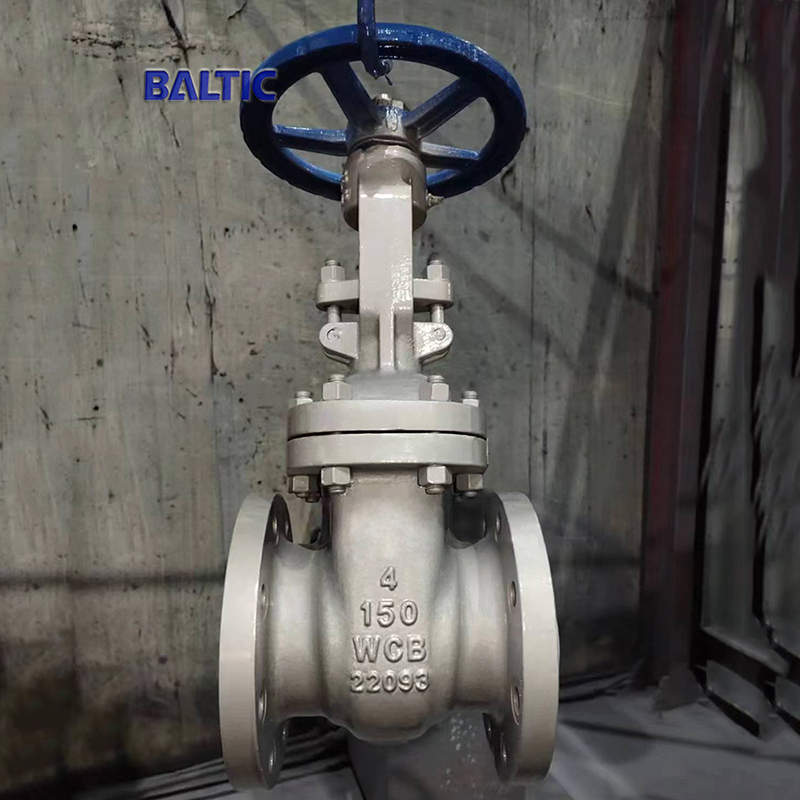

Shop a high-quality flexible wedge gate valve from a trusted manufacturer. This valve is made of ASTM A216 WCB and features a 4-inch size, 150 LB pressure rating, and DN100/PN20 specifications. It complies with API 600 standards and has an RF (raised face) design. With a wide pressure range of 150-2500 LB and PN10-PN420, this valve is suitable for various applications. It meets API 600, ASME B16.34, EN 1984, and DIN 3352 standards, ensuring reliability and performance. Upgrade your industrial system with this standardized valve solution.

Tags:

• ASTM A216 WCB Gate Valve
• 4 Inch Gate Valve
• Class 150 LB Gate Valve
• DN100 Gate Valve
• PN20 Gate Valve
• API 600 Gate Valve
• RF Gate Valve

Valve description:
Product name: Flexible wedge gate valve, class 150 series.
Design: API 600.
Material: ASTM A216 WCB.
Nominal size: 4 Inch.
Nominal class: 150 LB.
Connection ends: RF flange - ASME B16.5.
Face to face: ASME B16.10.
Test and inspection: API 598.

Other features
Bolted bonnet type or pressure seal bonnet
Flexible wedge, full bore
For pressure seal bonnet type:
The bonnet gasket to be metal sealing, RTJ ring - SS 304 for a long service.
Threaded stem does not contact the medium, to avoid possibility of corrosion

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.:  -196℃  -  573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, CN3MN, CK3MCUN, CN7M, ASTM A890 4A(CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering,
offshore oil, chemical engineering
