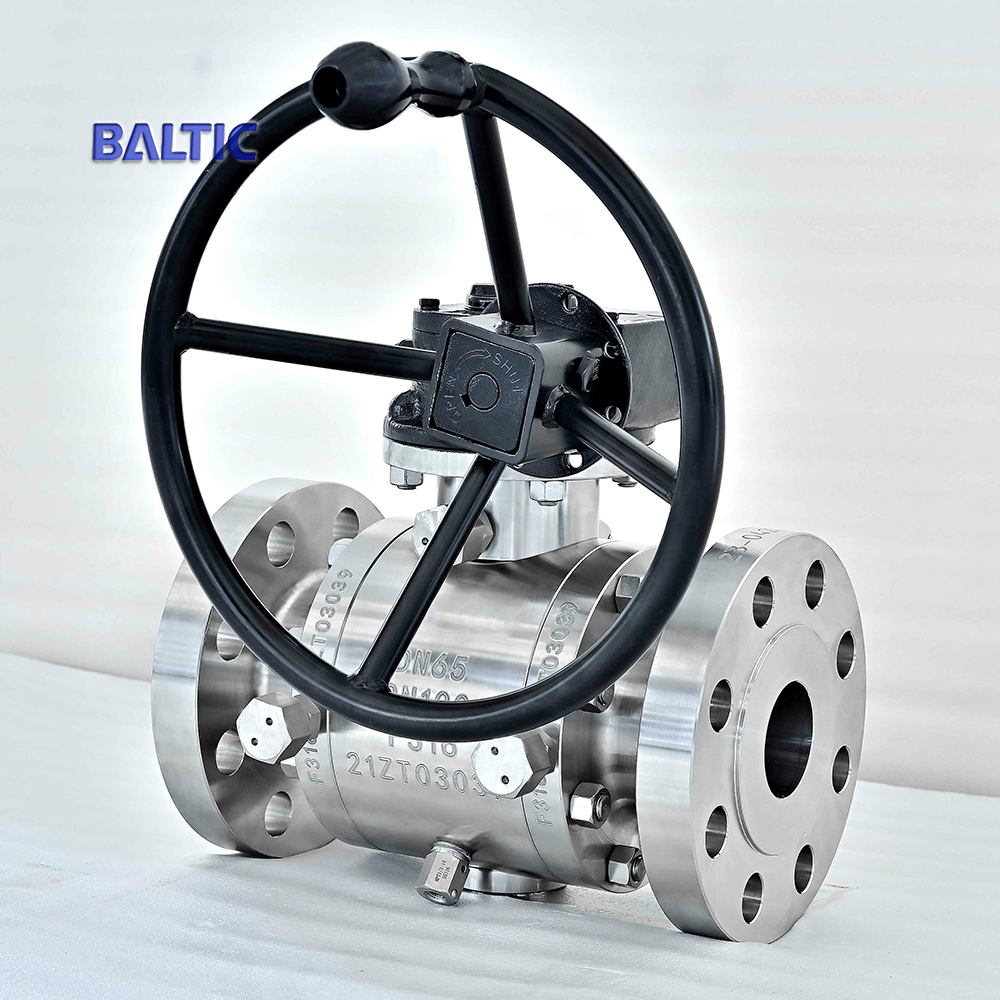

ASTM A182 F316 Ball Valves, API 6D, DN65, PN100, Flanged

Our flanged ball valve is expertly designed to meet API 6D standards, ensuring reliable operation in demanding industrial pipelines. Constructed with a robust ASTM A182 F316 stainless steel body, it provides superior corrosion resistance and durability for long-term use. This valve is sized DN65 (2-1/2 inch) with a PN100 / Class 600 LB pressure rating, making it ideal for high-pressure applications. Equipped with a precision gearbox, it allows smooth and controlled operation, even for larger or hard-to-turn valves. Perfect for oil & gas, chemical, and industrial systems, this flanged ball valve combines safety, performance, and ease of maintenance. As a leading flanged ball valves supplier in China, we deliver top-quality solutions for global projects.


Tags:

• ASTM A182 F316 Ball Valve
• RF Flanged Ball Valve
• API 6D Ball Valve
• DN65 Ball Valve
• PN100 Ball Valve

Valve Description:
Ball valve with gearbox.
Design: API 6D.
Body: ASTM A182 F316.
Nominal Size: DN65.
Nominal Class: PN100.
End Connection: RF Flange, EN 1092-1/B2.
Face to Face: EN 558-1/row 2 = 340mm.
Test and Inspection: EN 12266-1.

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 1/2 - 60 Inch (DN15 - DN1500).
End Connection: BW, Flanged.
Pressure Range: 150 - 2500 LB (PN16 - PN420).
Working Temperature: -46°C - +200°C.
